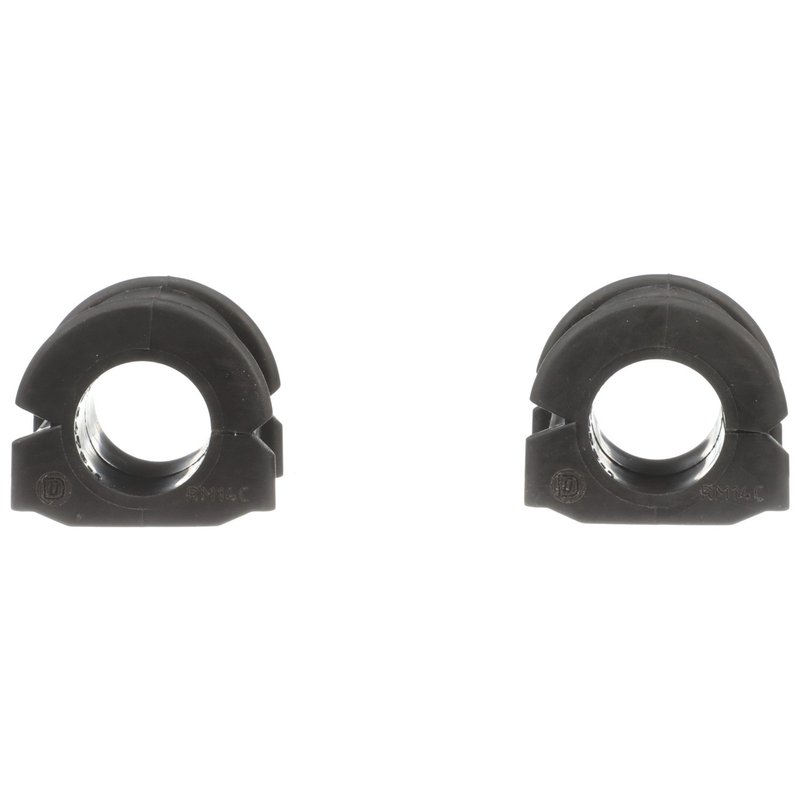

Delphi TD4526W Suspension Stabilizer Bar Bushing Kit - Rear

Rear Stabilizer Bar Bushing Kit for Equinox and Terrain

Delphi TD4526W is a rear suspension stabilizer bar bushing kit built as a standard replacement for select Chevrolet Equinox and GMC Terrain applications. It uses rubber construction and OE-focused dimensional analysis to support proper fitment and consistent suspension bar support.

Key Features

• Rubber stabilizer bar bushing for rear suspension service
• Standard replacement grade for OE-style fit and function
• Inside diameter: 0.995 in.
• Fits rear position applications only
• Delphi TD4526W for Chevrolet Equinox and GMC Terrain

Product Details

Delphi TD4526W is engineered for rear stabilizer bar service on 2010-2017 Chevrolet Equinox and 2010-2017 GMC Terrain models. Delphi applies OE-level material and dimensional analysis to help the bushing match the original suspension interface, while the rubber material supports the bar as it moves through normal road inputs. This part cross-references MOOG Chassis Products K200338 for the same application.

Common Problems This Part Can Address

• Rear suspension noise from worn stabilizer bar bushings
• Excessive play at the rear sway bar mounting point
• Clunking or rattling over bumps
• Reduced stabilizer bar control caused by deteriorated rubber
• Uneven rear suspension response from bushing wear

Installation Notes

Install on the rear stabilizer bar location only. Verify the inside diameter and vehicle application before service, and inspect the stabilizer bar and surrounding mounting points for wear or corrosion during replacement. Fits 2010-2017 Chevrolet Equinox, rear. Fits 2010-2017 GMC Terrain, rear.

Quality Assurance

Delphi subjects its aftermarket steering and suspension components to extreme temperature and salt-spray testing, including exposure below -40 degrees C, above 120 degrees C, and 720 hours of salt spray. That testing supports durability validation for TD4526W in demanding service conditions.
