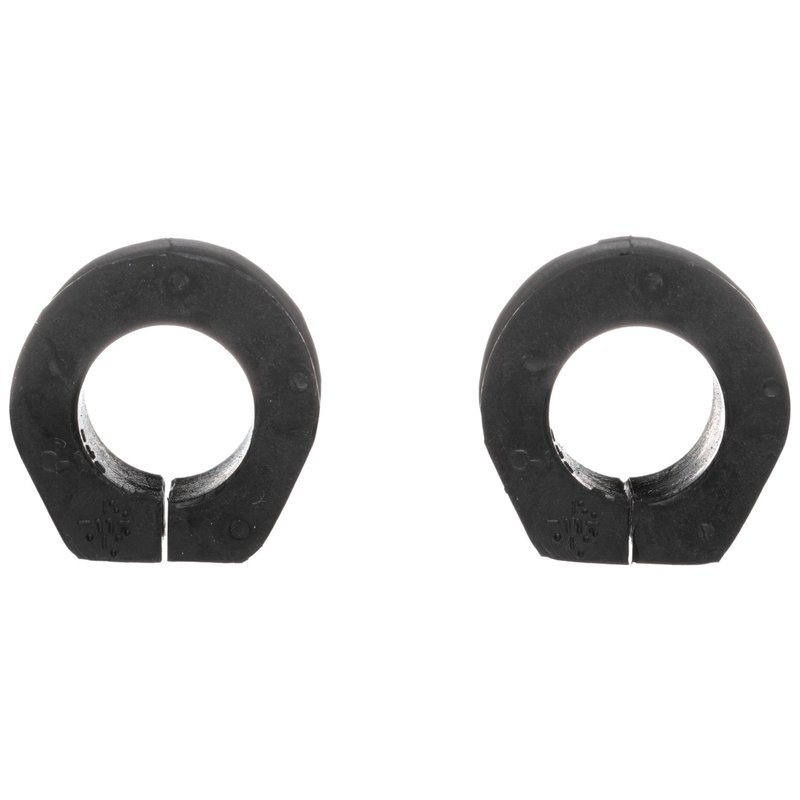

Delphi TD4679W Suspension Stabilizer Bar Bushing Kit - Rear To Frame
| Brand | Delphi TD4679W |
|---|---|
| Position | Rear To Frame |
| Material | Rubber |
| Inside Diameter | 0.787 |
| Width | 1.38 |
| Item Grade | Standard replacement |
| Fits | Chevrolet · 12 vehicles |
Standard replacement. Rubber stabilizer bar bushing kit for dependable suspension service.
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering portfolio.
Extreme-tested. Built to withstand harsh temperatures and long salt-spray exposure.
Cross-references MOOG Chassis Products K200130, 10270252 and DM3212345 for the same application. See all 3.
Delphi Rear Stabilizer Bar Bushing Kit TD4679W
Delphi TD4679W is a standard replacement rear stabilizer bar bushing kit made from rubber for rear-to-frame mounting. It is built for Chevrolet Lumina and Chevrolet Monte Carlo applications that use a 20mm diameter sway bar, with OE-focused dimensional and material analysis for proper fit.
Key Features
- Rubber construction for rear stabilizer bar support
- Inside diameter: 0.787 in.
- Width: 1.38 in.
- Standard replacement grade
- Position: rear to frame
- Fits Chevrolet Lumina and Chevrolet Monte Carlo rear sway bar applications with 20mm diameter sway bar
Application Details
Delphi TD4679W is engineered for rear stabilizer bar mounting on 1995-2001 Chevrolet Lumina and 1995-1999 Chevrolet Monte Carlo applications listed below. This part cross-references MOOG Chassis Products K200130 for the same application. Delphi applies OE-style dimensional and material checks to help maintain correct bushing fit and suspension bar support.
- Fits 2000-2001 Chevrolet Lumina, rear to frame
- Fits 1995-1999 Chevrolet Lumina, rear to frame, with 20mm Diameter Sway Bar
- Fits 1995-1999 Chevrolet Monte Carlo, rear to frame, with 20mm Diameter Sway Bar
Common Issues This Part Addresses
- Rear sway bar movement at the frame mount
- Clunking or rattling from worn stabilizer bushings
- Excessive suspension play at the rear stabilizer bar
- Reduced bar-to-frame support from cracked rubber bushings
- Fitment problems caused by worn OE-style bushing dimensions
Installation Notes
Verify the rear sway bar diameter before installation; this part is listed for 20mm diameter sway bar applications where specified. Confirm rear-to-frame mounting location and compare the original bushing dimensions to the Delphi TD4679W specifications before service.
Quality Assurance
Delphi subjects its OE-based steering and suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure testing. The brand also uses dimensional and material analysis to support OE-to-aftermarket compatibility for the TD4679W.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Chevrolet | Lumina | Rear To Frame | — |
| 2000 | Chevrolet | Lumina | Rear To Frame | — |
| 1999 | Chevrolet | Lumina | Rear To Frame | with 20mm Diameter Sway Bar |
| 1999 | Chevrolet | Monte Carlo | Rear To Frame | with 20mm Diameter Sway Bar |
| 1998 | Chevrolet | Lumina | Rear To Frame | with 20mm Diameter Sway Bar |
| 1998 | Chevrolet | Monte Carlo | Rear To Frame | with 20mm Diameter Sway Bar |
| 1997 | Chevrolet | Lumina | Rear To Frame | with 20mm Diameter Sway Bar |
| 1997 | Chevrolet | Monte Carlo | Rear To Frame | with 20mm Diameter Sway Bar |
| 1996 | Chevrolet | Lumina | Rear To Frame | with 20mm Diameter Sway Bar |
| 1996 | Chevrolet | Monte Carlo | Rear To Frame | with 20mm Diameter Sway Bar |
| 1995 | Chevrolet | Lumina | Rear To Frame | with 20mm Diameter Sway Bar |
| 1995 | Chevrolet | Monte Carlo | Rear To Frame | with 20mm Diameter Sway Bar |
