Delphi TD4680W Suspension Stabilizer Bar Bushing Kit - Rear To End Link

Delphi TD4680W Rear Stabilizer Bar Bushing Kit

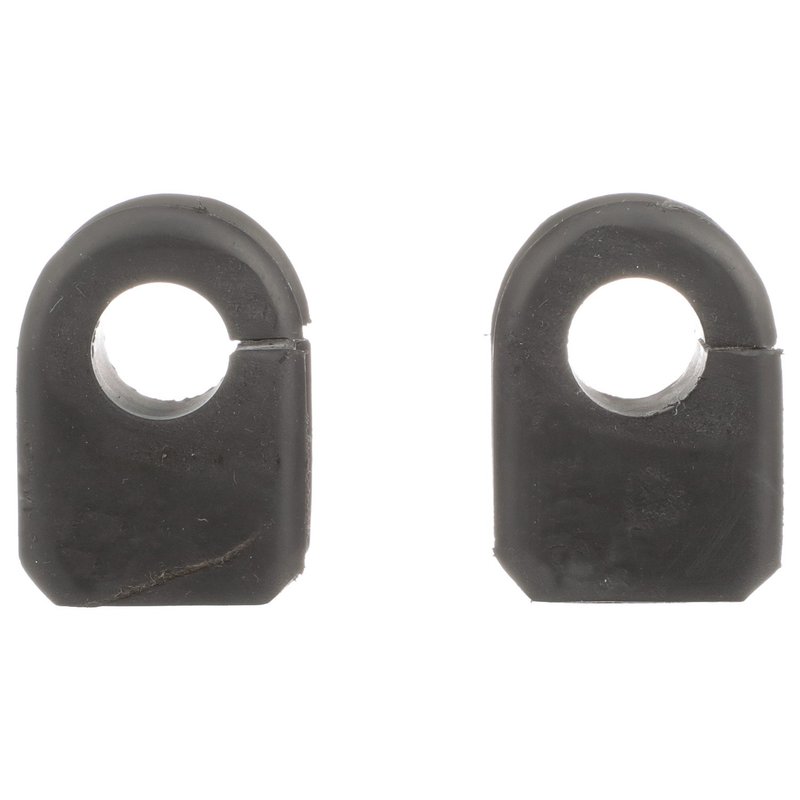

Delphi TD4680W is a standard replacement rear stabilizer bar bushing kit made from black rubber with a 19.0 mm inside diameter. It is built for the rear to end link position and is listed for 1995-1999 Chevrolet Lumina and 1995-1999 Chevrolet Monte Carlo with a 20 mm diameter sway bar.

Key Features

• Black rubber construction for suspension service and replacement
• 19.0 mm inside diameter for the specified sway bar application
• Standard replacement, regular grade bushing kit
• Rear to end link position
• Delphi part number TD4680W for catalog matching and ordering

Application Details

Compatible with 1995-1999 Chevrolet Lumina, rear to end link, with 20 mm diameter sway bar, and 1995-1999 Chevrolet Monte Carlo, rear to end link, with 20 mm diameter sway bar. This Delphi TD4680W stabilizer bar bushing kit cross-references MOOG Chassis Products K200131 for the same application.

What This Part Helps Address

• Rear sway bar bushing wear that can create looseness in the suspension
• Clunking or rattling from the rear stabilizer bar area
• Excess movement at the end link connection point
• Loss of consistent rear suspension control from deteriorated rubber bushings

Installation Notes

Verify sway bar diameter and rear to end link placement before installation. Compare the original bushing dimensions to the listed 19.0 mm inside diameter, 16.0 mm width, and 55.0 mm height to confirm proper match. Delphi TD4680W is intended for direct replacement use on the listed Chevrolet Lumina and Chevrolet Monte Carlo applications.

Quality Assurance

Delphi applies OE-focused engineering and dimensional analysis to its aftermarket steering and suspension components. This part is tested across extreme temperature ranges and salt-spray exposure to support material durability and fit consistency.
