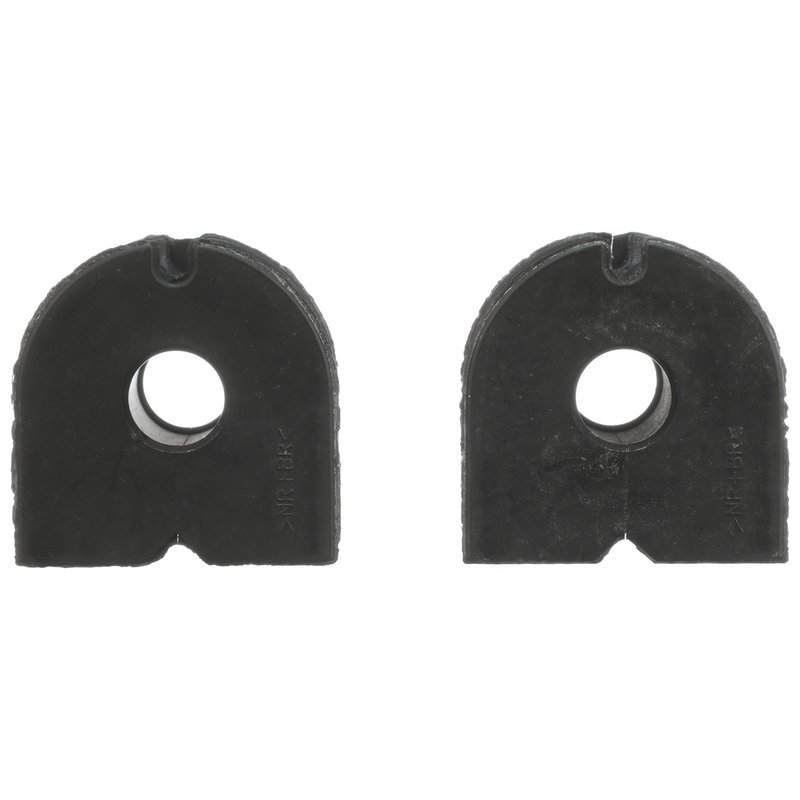

Delphi TD4786W Suspension Stabilizer Bar Bushing Kit - Rear
| Brand | Delphi TD4786W |
|---|---|
| Position | Rear |
| Color | Black |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Height | 2.07 |
| Height | 52.5 |
| Inside Diameter | 0.71 |
| Inside Diameter | 18.0 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Mounting Hardware Included | No |
| Outside Diameter | 2.03 |
| Outside Diameter | 51.5 |
| Width | 2.01 |
| Width | 51.0 |
| Fits | Ford and Mercury · 10 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the aftermarket part.
Rubber construction. Provides dependable cushioning for the stabilizer bar bushing kit.
Delphi tests parts for extreme temperatures and salt-spray resistance.
Cross-references Dorman - OE Solutions 928-541, MOOG Chassis Products K201312 and 9L8Z-5493-A for the same application. See all 3.
Rear Stabilizer Bar Bushing Kit
Delphi TD4786W is a rear suspension stabilizer bar bushing kit built as a standard replacement for select Ford, Mazda, and Mercury applications. It uses rubber construction and OE-focused dimensional control to support consistent sway bar mounting and rear suspension noise reduction.
Fits 2009-2012 Ford Escape, rear. Fits 2009-2011 Mazda Tribute, rear. Fits 2009-2011 Mercury Mariner, rear.
- Rubber bushing material with black finish
- Inside diameter: 18.0 mm (0.71 in)
- Outside diameter: 51.5 mm (2.03 in)
- Width: 51.0 mm (2.01 in)
- Height: 52.5 mm (2.07 in)
- Rear position application
- Standard replacement grade
- No grease fitting included
- No mounting hardware included
OE-Style Fit and Construction
Delphi applies OE engineering methods to its aftermarket steering and suspension portfolio, with dimensional and material analysis used to improve part-to-part compatibility. TD4786W is built for rear sway bar service on the 2009-2012 Ford Escape, 2009-2011 Mazda Tribute, and 2009-2011 Mercury Mariner. This part cross-references Dorman OE Solutions 928-541 and MOOG Chassis Products K201312 for the same application.
Common Problems This Part Can Address
- Rear suspension clunking over bumps
- Sway bar movement caused by worn rubber bushings
- Excessive rear-end looseness or rattling
- Noise from deteriorated stabilizer bar mounting points
- Uneven stabilizer bar support at the rear axle area
Installation Notes
Inspect the rear stabilizer bar and surrounding brackets before installation. Clean the mounting surfaces, verify bushing dimensions against the original part, and replace worn hardware or brackets as needed since mounting hardware is not included. Proper alignment of the bushing around the sway bar helps maintain quiet operation and consistent rear suspension response.
Quality Assurance
Delphi subjects its OE-style aftermarket parts to temperature testing below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure. That validation supports durability for rear suspension service on Ford Escape, Mazda Tribute, and Mercury Mariner applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Ford | Escape | Rear | — |
| 2011 | Ford | Escape | Rear | — |
| 2011 | Mazda | Tribute | Rear | — |
| 2011 | Mercury | Mariner | Rear | — |
| 2010 | Ford | Escape | Rear | — |
| 2010 | Mazda | Tribute | Rear | — |
| 2010 | Mercury | Mariner | Rear | — |
| 2009 | Ford | Escape | Rear | — |
| 2009 | Mazda | Tribute | Rear | — |
| 2009 | Mercury | Mariner | Rear | — |
