Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

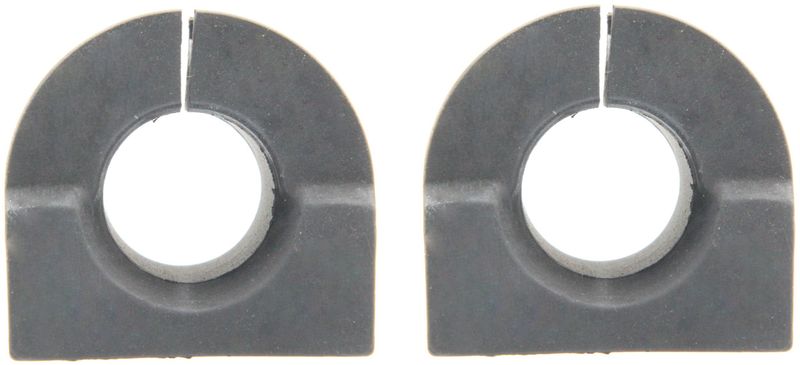

Delphi TD4810W Suspension Stabilizer Bar Bushing Kit - Rear
| Brand | Delphi TD4810W |
|---|---|
| Position | Rear |
| Color | Black |
| Inside Diameter | 0.965 |
| Inside Diameter | 24.5 |
| Grease Fitting Included | No |
| Width | 2.039 |
| Mounting Hardware Included | No |
| Height | 1.929 |
| Height | 49.0 |
| Item Grade | Standard replacement |
| Fits | Acura and Honda · 20 vehicles |
OE-tested durability. Built to handle extreme temperatures and 720 hours of salt spray.
OE compatibility. Dimensional and material analysis helps ensure a precise aftermarket fit.
Rear stabilizer bushing. Standard replacement for the rear suspension stabilizer bar.
Cross-references MOOG Chassis Products K201420 and 52306-SZA-A01 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Stabilizer Bar Bushing Kit for Honda and Acura
Restore rear suspension support with this Delphi stabilizer bar bushing kit, part number TD4810W. It is a standard replacement bushing kit for select Honda and Acura models, including the Honda Pilot, Honda Ridgeline, Honda Passport, and Acura MDX.
- Rear suspension stabilizer bar bushing kit
- Black bushing construction
- Inside diameter: 0.965 in. / 24.5 mm
- Width: 2.039 in.
- Height: 1.929 in. / 49.0 mm
- Standard replacement grade
- No grease fitting included
- No mounting hardware included
OE-Style Fit and Material Control
Delphi applies OE-focused dimensional and material analysis to help match the original part’s fit and function. TD4810W is built for rear stabilizer bar service on 2009-2015 Honda Pilot, 2014-2020 Acura MDX, 2017-2020 Honda Ridgeline, and 2020-2021 Honda Passport applications. This part cross-references MOOG Chassis Products K201420 and replaces OE number 52306-SZA-A01 for the same application.
Common Problems This Part Addresses
- Rear sway bar bushing wear that can create looseness in the suspension
- Clunking or rattling from the rear stabilizer bar area
- Excess movement at the stabilizer bar mounting point
- Uneven rear suspension response caused by deteriorated bushings
- Noise from cracked, hardened, or compressed original bushings
Installation Notes and Tips
Confirm rear position and verify the stabilizer bar diameter before installation. Inspect the bar, brackets, and surrounding suspension components for wear or corrosion before replacing the bushings. Because mounting hardware is not included, reuse only serviceable hardware or source the correct fasteners separately if needed.
Quality Assurance
Delphi subjects its OE-based steering and suspension components to extreme temperature testing from below -40 degrees C to above 120 degrees C, along with 720 hours of salt spray exposure. These checks support durability and fit consistency for rear suspension service on Honda Pilot, Honda Ridgeline, Honda Passport, and Acura MDX applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Honda | Passport | — | — | Rear | — |
| 2020 | Acura | MDX | — | — | Rear | — |
| 2020 | Honda | Passport | — | — | Rear | — |
| 2020 | Honda | Ridgeline | — | — | Rear | — |
| 2019 | Acura | MDX | — | — | Rear | — |
| 2019 | Honda | Ridgeline | — | — | Rear | — |
| 2018 | Acura | MDX | — | — | Rear | — |
| 2018 | Honda | Ridgeline | — | — | Rear | — |
| 2017 | Acura | MDX | — | — | Rear | — |
| 2017 | Honda | Ridgeline | — | FWD | Rear | — |
| 2016 | Acura | MDX | — | — | Rear | — |
| 2015 | Acura | MDX | Base | — | Rear | — |
| 2015 | Honda | Pilot | — | — | Rear | — |
| 2014 | Acura | MDX | Base | — | Rear | — |
| 2014 | Honda | Pilot | — | — | Rear | — |
| 2013 | Honda | Pilot | — | — | Rear | — |
| 2012 | Honda | Pilot | — | — | Rear | — |
| 2011 | Honda | Pilot | — | AWD | Rear | — |
| 2010 | Honda | Pilot | — | AWD | Rear | — |
| 2009 | Honda | Pilot | — | AWD | Rear | — |
| No rows match your filter. | ||||||
