Delphi TD4813W Suspension Stabilizer Bar Bushing Kit - Rear
OE Quality 60-Day Returns
Delphi

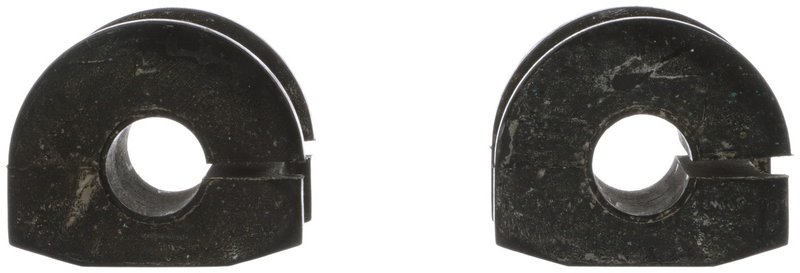

Delphi TD4813W Suspension Stabilizer Bar Bushing Kit - Rear

Brand Delphi TD4813W
Position Rear
Material Rubber
Color Black
Inside Diameter 23.0
Width 44.0
Height 41.5
Grade Type Regular
Item Grade Standard replacement
Fits Cadillac · 2 vehicles

Standard replacement. OE expertise applied to an aftermarket stabilizer bar bushing kit.

Rubber construction. Delivers dependable cushioning and noise isolation.

Extreme-tested. Built to handle harsh temperatures and salt spray.

Cross-references Dorman - OE Solutions 928-525, MOOG Chassis Products K201439 and 15880711 for the same application. See all 3.

$21.16Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $21.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Stabilizer Bar Bushing Kit options

Delphi Rear Stabilizer Bar Bushing Kit TD4813W

Restore rear sway bar support with this Delphi suspension stabilizer bar bushing kit. Built with black rubber and standard replacement dimensions, TD4813W is made for OE-style fitment on select Cadillac CTS applications.

Key Features

  • Rear suspension stabilizer bar bushing kit
  • Black rubber construction for standard replacement service
  • 23.0 mm inside diameter
  • 44.0 mm width and 41.5 mm height
  • Delphi OE-based dimensional and material analysis for fit consistency
  • Tested for temperature extremes below -40°C and above 120°C
  • Exposed to 720 hours of salt spray during validation

Detailed Description

Delphi TD4813W is a rear stabilizer bar bushing kit engineered for 2008-2009 Cadillac CTS, rear, 18mm applications. It uses rubber construction and standard replacement sizing to support proper sway bar location and suspension response. This part number, TD4813W, reflects Delphi’s OE-focused aftermarket approach, with attention to material compatibility and dimensional accuracy for the Cadillac CTS rear suspension.

This part cross-references Dorman - OE Solutions 928-525 for the same application.

What It Helps Address

  • Rear sway bar movement caused by worn bushings
  • Clunking or rattling from the rear suspension area
  • Excess play at the stabilizer bar mounting point
  • Reduced bar control from deteriorated rubber bushings
  • Fitment issues when replacing an OE-style rear bushing on Cadillac CTS

Installation Notes and Tips

Verify the rear stabilizer bar diameter before ordering; this kit is listed for 18mm applications. Confirm the vehicle as a 2008-2009 Cadillac CTS, rear, and compare the original bushing dimensions to TD4813W before installation. Inspect the stabilizer bar and mounting surfaces for wear or corrosion that could affect bushing service life.

Quality Assurance

Delphi validates this suspension component through temperature cycling and extended salt-spray exposure, along with dimensional and material analysis to support OE-style replacement performance.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2009CadillacCTSRear18mm
2008CadillacCTSRear18mm
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 928-525MOOG Chassis Products — K20143915880711
