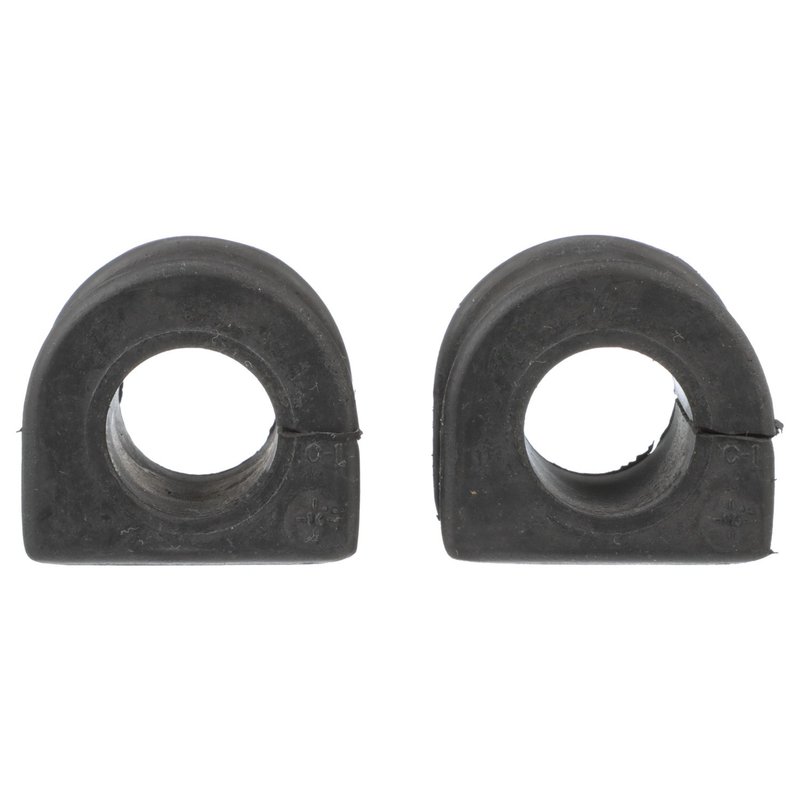

Delphi TD4944W Suspension Stabilizer Bar Bushing Kit - Rear

Rear Stabilizer Bar Bushing Kit for Lexus and Toyota

Delphi TD4944W is a rear suspension stabilizer bar bushing kit built for OE-style replacement on select Lexus and Toyota applications. It uses rubber construction and dimensional analysis to support proper fit on the rear sway bar mounting points.

• Rubber bushing construction with black finish
• Inside diameter: 24.2 mm
• Width: 31.5 mm
• Height: 43.5 mm
• Standard replacement grade
• Rear position application
• No grease fitting included
• No mounting hardware included

OE-Style Fit and Material

Delphi TD4944W is engineered for rear stabilizer bar service where worn bushings can create looseness, noise, or inconsistent suspension response. Delphi applies OE-level dimensional and material analysis to help the bushing match the original mounting geometry on the rear sway bar area. This part cross-references Beck/Arnley 101-6385 and Dorman Premium BSK74549PR for the same application.

Compatible with 1996-1997 Lexus LX450, rear; 1995-1997 Toyota Land Cruiser, rear; and 1993-1994 Toyota Land Cruiser, rear to frame. Delphi TD4944W is a direct-fit style option for drivers searching for a rear sway bar bushing kit for Lexus LX450 or Toyota Land Cruiser suspension repair.

Common Problems This Part Addresses

• Rear sway bar movement caused by worn rubber bushings
• Clunking or squeaking from the rear suspension area
• Reduced stabilizer bar control at the rear axle or frame mount
• Loose-feeling handling from deteriorated bushing material
• Fitment issues during rear stabilizer bar service on LX450 and Land Cruiser models

Installation Notes

Inspect the stabilizer bar, brackets, and mounting surfaces before installation. Because mounting hardware is not included, reuse only serviceable original hardware or replace worn fasteners separately. Verify rear position fitment and confirm the inside diameter and dimensions match the original bushing before assembly.

Quality Assurance

Delphi tests this OE-style suspension component across extreme temperature ranges and extended salt-spray exposure to evaluate durability in demanding underbody conditions. The TD4944W is built as a standard replacement part for rear suspension service on select Lexus and Toyota vehicles.
