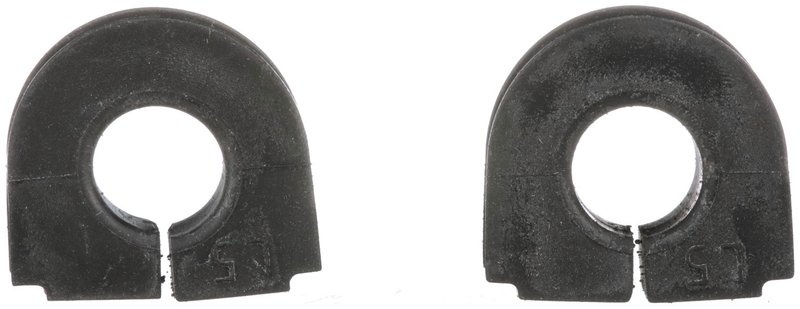

Delphi TD4955W Suspension Stabilizer Bar Bushing Kit - Rear or Rear To Frame
| Brand | Delphi TD4955W |
|---|---|
| Position | Rear and Rear To Frame |
| Material | Rubber |
| Color | Black |
| Inside Diameter | 0.63 |
| Inside Diameter | 16.2 |
| Width | 1.43 |
| Width | 20.0 |
| Height | 35.0 |
| Grade Type | Regular |
| Item Grade | Standard replacement |
| Position(s) | Rear |
| Fits | Acura · 10 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Rubber construction. Provides dependable cushioning and vibration control.
Tested for extremes. Built to handle severe temperatures and salt spray exposure.
Cross-references 101-6481, 536-736 and 52315-SL4-010 for the same application. See all 3.
Delphi TD4955W Rear Stabilizer Bar Bushing Kit
Delphi TD4955W is a standard replacement rear stabilizer bar bushing kit built with black rubber for consistent suspension support. It is engineered for rear applications on select Acura CL and Acura TL models, with OE-focused dimensional and material analysis used to match the original part more closely.
Key Features
- Black rubber construction for suspension bushing service
- Standard replacement grade for rear stabilizer bar mounting points
- Inside diameter: 0.63 in. / 16.2 mm
- Width: 1.43 in. / 20.0 mm
- Height: 35.0 mm
- Rear position fitment
- Delphi part number TD4955W
Detailed Description
This Delphi suspension stabilizer bar bushing kit is designed for rear use on 1997-1999 Acura CL, rear to frame, and 1995-1998 Acura TL, rear. The rubber material and standard replacement construction are selected to restore the stabilizer bar’s mounting interface and help maintain proper suspension control. Delphi validates parts through temperature exposure below -40 degrees C and above 120 degrees C, along with extended salt-spray testing, to support durability in demanding underbody conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Rear stabilizer bar movement caused by worn bushings
- Clunking or squeaking from the rear suspension area
- Excess play at the stabilizer bar-to-frame mounting point
- Reduced suspension stability from deteriorated rubber bushings
- Fitment issues when replacing a worn Acura CL or Acura TL rear bushing
Installation Notes and Tips
Verify rear application, inside diameter, width, and height before installation. Inspect the stabilizer bar and mounting surfaces for wear, corrosion, or deformation before fitting the new bushing. Confirm the vehicle is a 1997-1999 Acura CL, rear to frame, or a 1995-1998 Acura TL, rear, and compare the removed part to Delphi TD4955W for final confirmation.
Quality Assurance
Delphi applies OE-focused engineering, dimensional analysis, and material analysis to support part-to-part compatibility. The brand also subjects steering and suspension-related components to temperature and salt-spray testing to evaluate durability under harsh conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1999 | Acura | CL | Rear To Frame | — |
| 1998 | Acura | CL | Rear To Frame | — |
| 1998 | Acura | TL | Rear | — |
| 1997 | Acura | CL | Rear To Frame | — |
| 1997 | Acura | TL | Rear | — |
| 1996 | Acura | TL | Rear | — |
| 1995 | Acura | TL | Rear | — |
| 1994 | Acura | Vigor | Rear To Frame | — |
| 1993 | Acura | Vigor | Rear To Frame | — |
| 1992 | Acura | Vigor | Rear To Frame | — |
| No rows match your filter. | ||||
