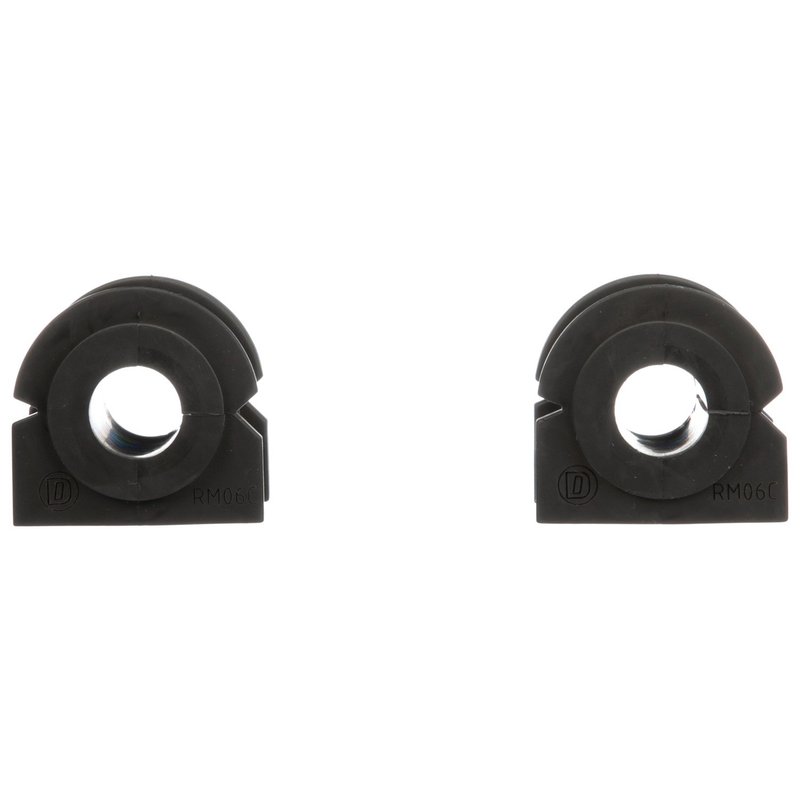

Delphi TD5071W Suspension Stabilizer Bar Bushing Kit - Rear To Frame

Delphi TD5071W Rear Stabilizer Bar Bushing Kit

Delphi TD5071W is a standard replacement rear stabilizer bar bushing kit made with rubber for rear-to-frame mounting. It is built for 17.2 mm to 18.2 mm sway bar diameter applications and supports precise bar location on select Chrysler, Dodge, and related platforms.

Key Features

• Rubber construction for rear stabilizer bar isolation and support
• Inside diameter: 0.673 in.
• Standard replacement grade for OE-style service fit
• Rear to frame position
• Engineered using Delphi dimensional and material analysis for OE-to-aftermarket compatibility
• Tested for temperature extremes below -40 C and above 120 C, plus 720 hours of salt spray exposure

Detailed Description

Delphi TD5071W is a rear stabilizer bar bushing kit for vehicles that use a 17.2 mm to 18.2 mm sway bar diameter. It is a direct service part for rear-to-frame mounting on 2007-2010 Chrysler Sebring, 2008-2010 Dodge Avenger, and 2007-2010 Dodge Caliber applications. This part cross-references MOOG Chassis Products K200213 for the same application. The Delphi TD5071W part number is also referenced in OE interchange listings 05181065AA and 05181066AA.

What It Helps Address

• Rear sway bar movement caused by worn rubber bushings
• Clunking or rattling from the rear stabilizer bar area
• Loose or inconsistent rear suspension feel
• Excessive play at the rear-to-frame mounting point
• Fitment issues when replacing a worn OE-style bushing on Sebring, Avenger, or Caliber models

Installation Notes and Tips

Verify rear sway bar diameter before installation to confirm the 17.2 mm to 18.2 mm range. Confirm rear-to-frame placement and match the vehicle application to the listed fitment for 2007-2010 Chrysler Sebring, 2008-2010 Dodge Avenger, or 2007-2010 Dodge Caliber. Inspect the stabilizer bar and mounting surfaces for wear before installing the new bushing.

Quality Assurance

Delphi applies OE-focused engineering and validation to its aftermarket steering and suspension parts. TD5071W is evaluated for dimensional accuracy, material consistency, temperature resistance, and corrosion exposure to support dependable service performance.
