Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

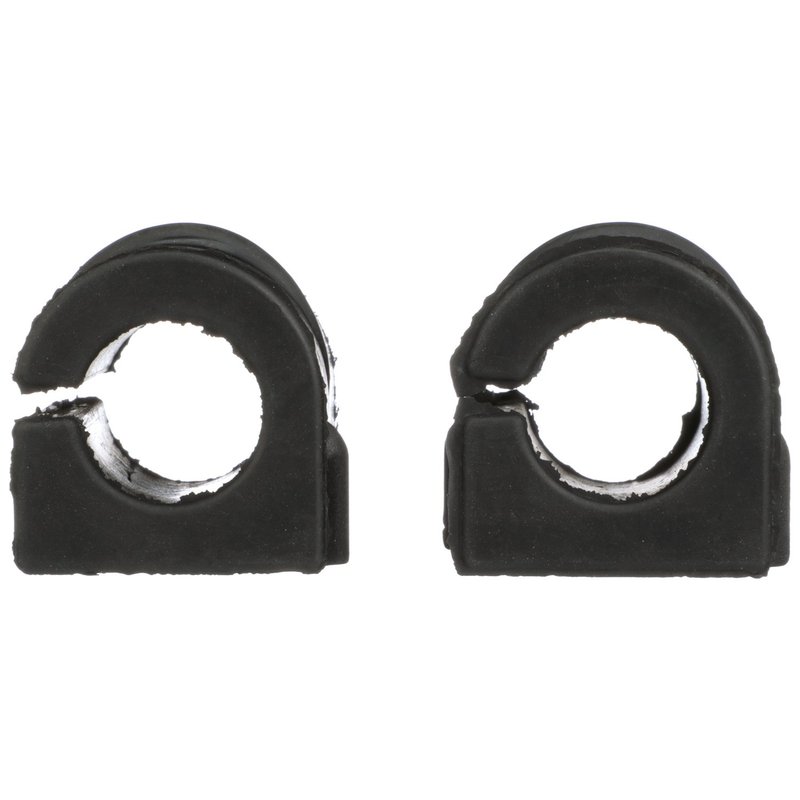

Delphi TD545W Suspension Stabilizer Bar Bushing Kit - Front
| Brand | Delphi TD545W |
|---|---|
| Position | Front |
| Color | Black |
| Height | 1.87 |
| Height | 47.5 |
| Inside Diameter | 0.984 |
| Inside Diameter | 25.0 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Outside Diameter | 1.646 |
| Outside Diameter | 41.8 |
| Width | 1.882 |
| Width | 47.8 |
| Fits | Cadillac · 5 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Rubber construction. Provides dependable cushioning and vibration control.
Delphi tests parts for extreme temperatures and salt spray resistance.
Cross-references 90445625 and K200062 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Front Stabilizer Bar Bushing Kit for Cadillac Catera
Delphi TD545W is a front suspension stabilizer bar bushing kit built for OE-style replacement on the 1997-2001 Cadillac Catera. It uses rubber construction and precise dimensions to support proper sway bar location, helping maintain consistent front-end suspension response.
Key Features
- Rubber bushing material with black finish
- Front position application for the stabilizer bar
- Inside diameter: 25.0 mm (0.984 in)
- Outside diameter: 41.8 mm (1.646 in)
- Width: 47.8 mm (1.882 in)
- Height: 47.5 mm (1.87 in)
- Standard replacement item grade
- Delphi TD545W part number for catalog matching
Detailed Description
Delphi TD545W is engineered as a front stabilizer bar bushing kit for the Cadillac Catera, covering 1997-2001 models. Delphi applies OE-focused dimensional and material analysis to help ensure the bushing matches the original fit and function expected in the front suspension. The rubber construction is selected for stabilizer bar support, helping reduce unwanted movement at the bar-to-chassis interface. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems It Can Help Address
- Front suspension clunking or rattling from worn sway bar bushings
- Excessive stabilizer bar movement during cornering
- Loose or inconsistent front-end handling feel
- Noise caused by hardened, cracked, or compressed rubber bushings
- Fitment issues when replacing an original front stabilizer bar bushing on a Cadillac Catera
Installation Notes and Tips
Verify the stabilizer bar diameter and bushing dimensions before installation. Clean the mounting area and inspect related suspension components for wear, since worn links or brackets can affect final performance. This part is listed for the front position on 1997-2001 Cadillac Catera models, so confirm vehicle year and suspension configuration before ordering. Delphi TD545W should be matched to the OE-style application for proper seating and alignment.
Quality Assurance
Delphi subjects its OE-based aftermarket steering and suspension components to extreme temperature testing and extended salt-spray exposure, along with dimensional and material analysis to support consistent fit and durability. Delphi TD545W is built with that OE-focused validation approach for front suspension service on the Cadillac Catera.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Cadillac | Catera | Front | — |
| 2000 | Cadillac | Catera | Front | — |
| 1999 | Cadillac | Catera | Front | — |
| 1998 | Cadillac | Catera | Front | — |
| 1997 | Cadillac | Catera | Front | — |
| No rows match your filter. | ||||
