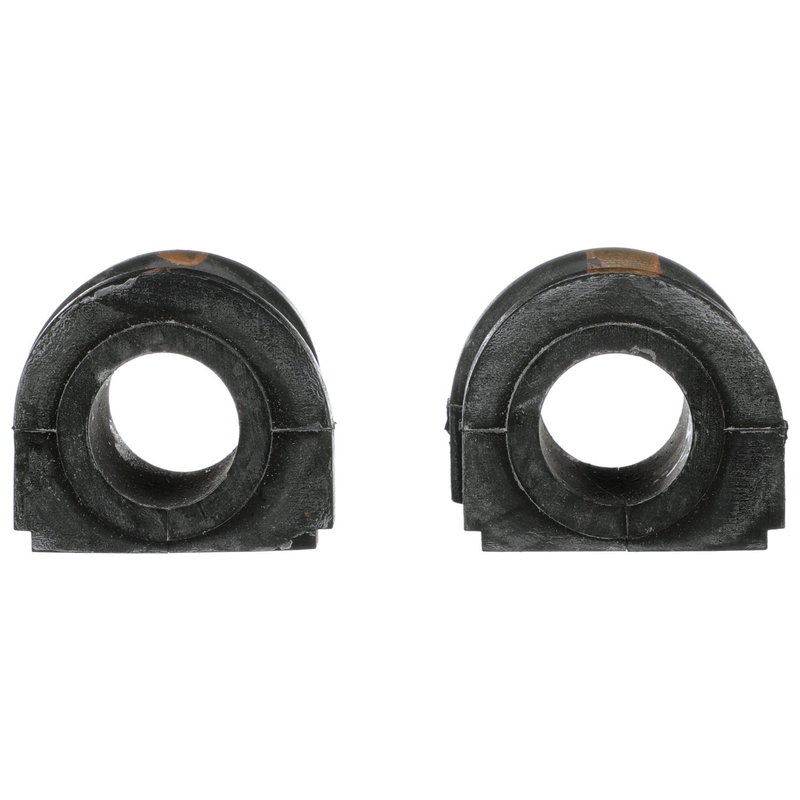

Delphi TD5610W Suspension Stabilizer Bar Bushing Kit - Front

Front Stabilizer Bar Bushing Kit for OE-Style Suspension Service

Restore front suspension control with this Delphi suspension stabilizer bar bushing kit, part number TD5610W. Built as a standard replacement with rubber construction and a black finish, it is made for front stabilizer bar mounting at the frame on a wide range of Buick, Chevrolet, Oldsmobile, Pontiac, and Cadillac applications.

Delphi applies OE-focused dimensional and material analysis to help match the original fit and function expected in front suspension service on vehicles such as the Buick Skylark and Pontiac Grand Am.

Key Features

• Delphi TD5610W front stabilizer bar bushing kit
• Rubber construction for suspension isolation and bar support
• Black finish
• Inside diameter: 21.5 mm
• Width: 40.0 mm
• Height: 47.0 mm
• Standard replacement, regular grade
• Front position for frame-mounted stabilizer bar applications
• No grease fitting included
• No mounting hardware included

Detailed Description

The Delphi TD5610W is a front suspension stabilizer bar bushing kit engineered for OE-style replacement service. Its rubber material helps maintain stabilizer bar location while supporting front-end suspension movement, and its dimensions are specified for applications that require a 21.5 mm inside diameter, 40.0 mm width, and 47.0 mm height. This part number TD5610W is a direct-fit style option for front-to-frame stabilizer bar service on vehicles including the Buick Skylark, Pontiac Grand Am, Chevrolet Cavalier, and related platforms.

Delphi validates its aftermarket steering and suspension components with extreme temperature exposure and salt-spray testing, along with dimensional and material analysis to support OE-level compatibility. This part cross-references Monroe Shocks & Struts (e.g., K6399) for the same application.

What This Part Helps Address

• Front stabilizer bar movement caused by worn rubber bushings
• Clunking or rattling from the front suspension area
• Excess sway bar play at the frame mount
• Reduced steering response from deteriorated bushing material
• Uneven suspension feel on front-to-frame applications

Installation Notes and Tips

Verify the stabilizer bar diameter and mounting location before installation. This bushing kit is for front position use and front-to-frame applications only, so confirm the vehicle’s suspension configuration against the listed fitment before ordering. Clean the mounting surface thoroughly and inspect the stabilizer bar for wear, corrosion, or deformation that could affect bushing fit.

Compatible With 1986-1998 Buick Skylark, front to frame; 1986-1989 Buick Skyhawk, front to frame; 1986-1988 Cadillac Cimarron, front to frame; 1986-1994 Chevrolet Cavalier, front to frame; 1987-1996 Chevrolet Corsica, front to frame; 1986-1987 Oldsmobile Calais, front to frame; 1988-1991 Oldsmobile Cutlass Calais, front to frame; 1986-1988 Oldsmobile Firenza, front to frame; 1992-1998 Oldsmobile Achieva, front to frame; 1986-1998 Pontiac Grand Am, front to frame; 1986-1994 Pontiac Sunbird, front to frame. Also fits 1995 Buick Skylark, front, for vehicles with Suspension system Ride And Handling (FE2).

Quality Assurance

Delphi uses OE-focused engineering and testing for aftermarket steering and suspension parts, including temperature cycling below -40 degrees C and above 120 degrees C, plus extended salt-spray exposure. That validation supports consistent material performance and fit accuracy for front suspension service.
