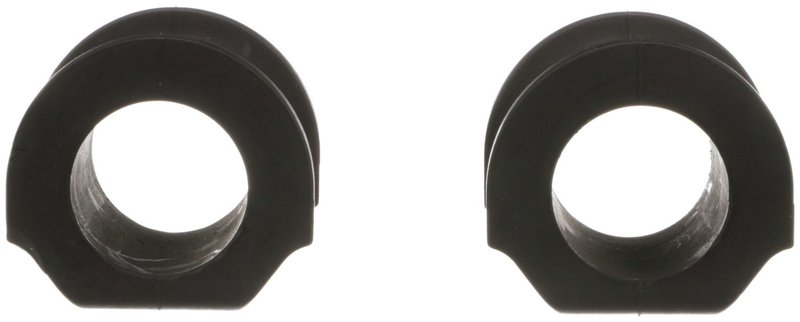

Delphi TD5623W Suspension Stabilizer Bar Bushing Kit - Front

Front Stabilizer Bar Bushing Kit for Honda Element

Delphi TD5623W is a front suspension stabilizer bar bushing kit built for OE-style replacement on the 2003-2011 Honda Element. It is engineered for standard replacement service and sized for the front stabilizer bar application, with a black bushing design and precise dimensional matching.

Delphi applies OE-focused material and dimensional analysis to help ensure proper compatibility between the original part and the aftermarket replacement. This TD5623W kit is made for front-end suspension service on the Honda Element, including 2003-2011 Honda Element front stabilizer bar bushing replacement needs.

Key Features

• Front suspension stabilizer bar bushing kit
• Fits 2003-2011 Honda Element, front
• Standard replacement grade
• Black bushing construction
• Inside diameter: 1.142 in. / 29.0 mm
• Width: 1.929 in.
• Height: 1.969 in. / 50.0 mm
• No grease fitting included
• No mounting hardware included

Detailed Description

Delphi TD5623W is a front stabilizer bar bushing kit for the Honda Element, covering 2003-2011 model years. It is intended for the front position and is sized to match OE dimensions, including a 29.0 mm inside diameter, 1.929-inch width, and 50.0 mm height. The part number TD5623W is a direct reference for buyers searching for a front sway bar bushing replacement for Honda Element suspension service.

This part cross-references Honda 51306-SCV-000 and MOOG Chassis Products K201497 for the same application.

Common Problems This Part Addresses

• Front stabilizer bar bushing wear
• Clunking or rattling from the front suspension
• Excess sway bar movement at the front axle
• Loose-feeling steering response caused by worn bushings
• Noise from deteriorated OE rubber bushings

Installation Notes and Tips

• Confirm the front stabilizer bar diameter before installation.
• Inspect the stabilizer bar, brackets, and surrounding suspension components for wear.
• Replace worn bushings in pairs when service conditions call for it.
• Mounting hardware is not included, so reuse or source the required hardware separately if needed.
• Professional installation is recommended for proper fitment and torque application.

Quality Assurance

Delphi subjects its OE-based steering and suspension parts to extreme temperature testing below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. TD5623W is backed by Delphi’s OE-focused engineering and dimensional verification for front suspension service on the Honda Element.
