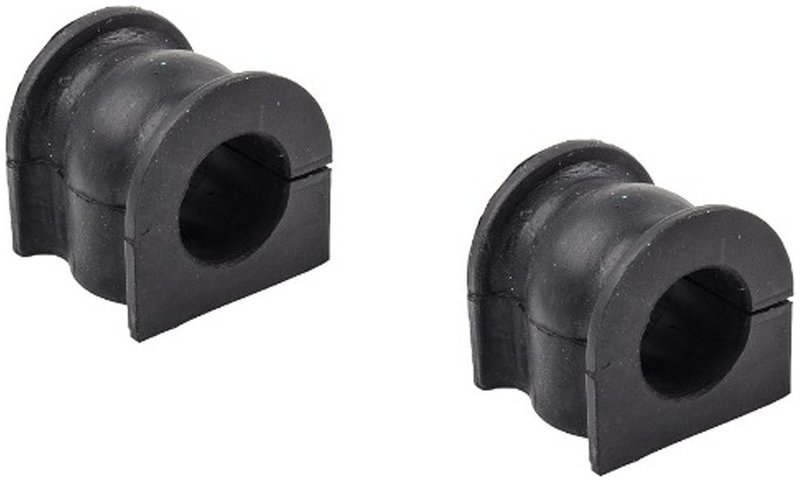

Delphi TD5624W Suspension Stabilizer Bar Bushing Kit - Rear

Delphi Rear Stabilizer Bar Bushing Kit TD5624W

Delphi TD5624W is a rear suspension stabilizer bar bushing kit built for OE-style replacement on select Honda Element models. It uses natural rubber construction to help maintain sway bar support and consistent suspension feel on the rear axle.

Key Features

• Natural rubber (NR) bushing material for standard replacement service
• Black finish
• Inside diameter: 0.81 in. / 20.50 mm
• Width: 1.50 in. / 38.00 mm
• Height: 1.48 in. / 37.50 mm
• Rear position application
• No grease fitting included
• No mounting hardware included

Application Details

Compatible with 2003-2011 Honda Element, rear. Delphi TD5624W is engineered using dimensional and material analysis to match OE fit and function for the rear stabilizer bar mounting point. This part cross-references MOOG Chassis Products K201432 for the same application.

What This Part Helps Address

• Rear sway bar movement caused by worn bushings
• Clunking or rattling from the rear suspension area
• Excessive play at the stabilizer bar mounting point
• Reduced suspension response from deteriorated rubber bushings
• Uneven rear-end stability during cornering

Installation Notes

Verify rear stabilizer bar diameter and bushing dimensions before installation. Inspect the sway bar, brackets, and surrounding suspension components for wear or corrosion, and replace damaged parts as needed. Because mounting hardware is not included, reuse or source the correct hardware separately if required by the vehicle.

Quality Assurance

Delphi applies OE-focused testing and material validation to its steering and suspension parts. This bushing kit is evaluated for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray to help confirm durability in demanding service conditions.
