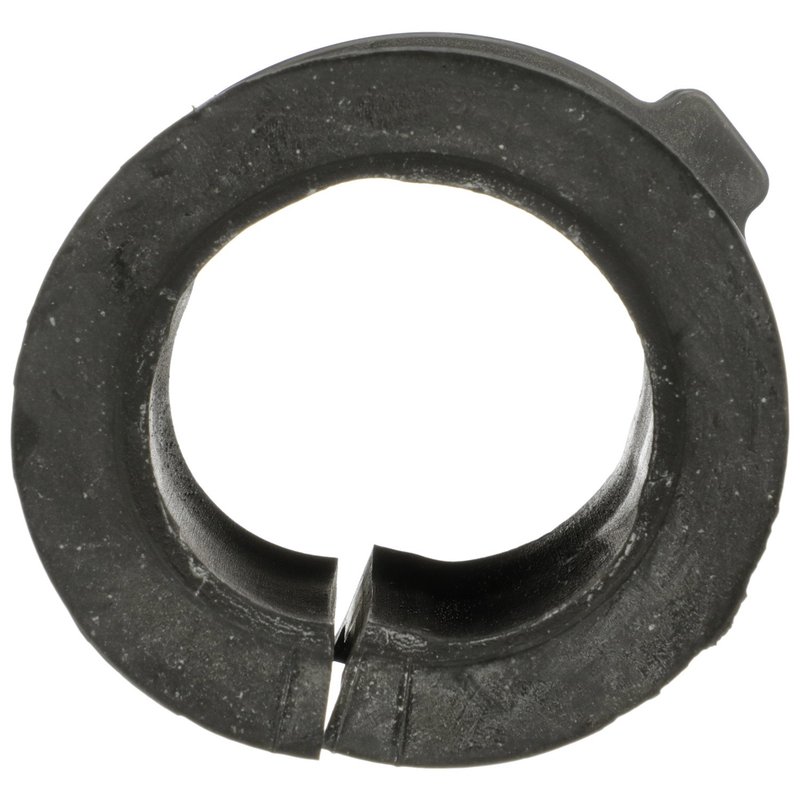

Delphi TD5629W Suspension Stabilizer Bar Bushing Kit - Front To Bar

Delphi TD5629W Front Stabilizer Bar Bushing Kit

The Delphi TD5629W is a front-to-bar suspension stabilizer bar bushing kit built for OE-style replacement on select Lexus GX470 applications. It uses rubber construction and standard replacement dimensions to help restore sway bar support and reduce unwanted movement at the front stabilizer bar.

Key Features

• Rubber bushing material with a black finish
• Front to bar position for stabilizer bar mounting
• Standard replacement grade for OE-style service
• Dimensions: 49.0 mm inside diameter, 63.0 mm outside diameter, 40.5 mm width, 51.5 mm height
• Delphi OE-focused aftermarket steering and suspension engineering
• Part number TD5629W for catalog and fitment lookup

Fitment and Application

Compatible with 2004-2009 Lexus GX470, front to bar, for vehicles with air suspension and kinetic suspension. This Delphi TD5629W stabilizer bar bushing kit is also a direct search match for Lexus GX470 front stabilizer bar bushing replacement needs and TD5629W suspension service.

This part cross-references Toyota/Lexus OE-style numbers such as 48815-60200 and K200639 for the same application.

What It Helps Address

• Clunking or knocking from worn front sway bar bushings
• Excess stabilizer bar movement at the front bar mount
• Loose or imprecise front-end feel during cornering
• Rubber deterioration from age, heat, or road exposure
• Fitment issues when replacing a worn Lexus GX470 front stabilizer bar bushing

Installation Notes

Verify the vehicle is a 2004-2009 Lexus GX470 with air suspension and kinetic suspension before ordering. Match the inside diameter, outside diameter, width, and height to the original bushing location on the front to bar mount. Clean the mounting surface and inspect the stabilizer bar and brackets for wear before installation.

Quality Assurance

Delphi applies OE-level dimensional and material analysis to its aftermarket steering and suspension parts. This bushing is tested for extreme temperature exposure below -40 degrees C and above 120 degrees C, and it is evaluated through 720 hours of salt spray exposure to support durability in demanding service conditions.
