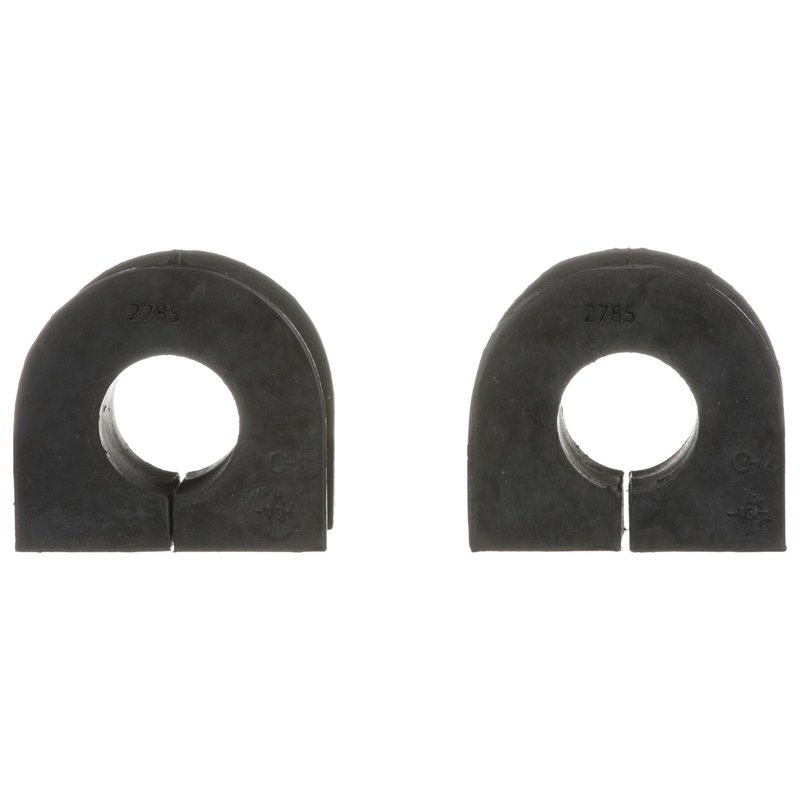

Delphi TD5637W Suspension Stabilizer Bar Bushing Kit - Front
OE Quality 60-Day Returns
Delphi

Delphi TD5637W Suspension Stabilizer Bar Bushing Kit - Front

Brand Delphi TD5637W
Position Front
Color Black
Grade Type Regular
Grease Fitting Included No
Height 1.574
Height 40.0
Inside Diameter 0.787
Inside Diameter 20.0
Item Grade Standard Replacement
Material Rubber
Mounting Hardware Included No
Width 1.751
Width 44.5
Fits Mazda · 10 vehicles

Standard replacement. OE expertise helps ensure compatibility with the original part.

Rubber construction. Provides a durable, black bushing kit for suspension use.

Extreme testing. Withstands temperatures below -40 C and over 120 C, plus 720 hours of salt spray.

Cross-references K200625 and NE51-34-156 for the same application. See all 2.

$25.80Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $25.80
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Stabilizer Bar Bushing Kit options

Delphi Front Stabilizer Bar Bushing Kit TD5637W

Restore front suspension control with the Delphi TD5637W suspension stabilizer bar bushing kit. Built with rubber construction and OE-focused dimensional analysis, this front bushing kit supports precise sway bar mounting on the Mazda MX-5 Miata.

  • Rubber bushing material for standard replacement service
  • Black finish
  • Front position application
  • Inside diameter: 20.0 mm (0.787 in.)
  • Width: 44.5 mm (1.751 in.)
  • Height: 40.0 mm (1.574 in.)
  • No grease fitting included
  • No mounting hardware included
  • Regular grade, standard replacement part

OE-Style Fit and Material

Delphi TD5637W is engineered for front stabilizer bar service on 2006-2015 Mazda MX-5 Miata models without a retractable hard top. Delphi applies OE-level dimensional and material analysis to help ensure proper fitment between the original suspension layout and the aftermarket replacement. The rubber construction is selected for everyday suspension use, while the front-only design keeps the application focused on the correct axle location. This part cross-references Monroe Shocks & Struts (e.g., K200625, NE51-34-156) for the same application.

What This Part Helps Address

  • Front sway bar movement caused by worn stabilizer bushings
  • Clunking or rattling from the front suspension area
  • Excessive play at the stabilizer bar mounting point
  • Reduced steering response from deteriorated rubber bushings
  • Uneven front-end suspension feel on Mazda MX-5 Miata models

Installation Notes and Tips

Fits 2006-2015 Mazda MX-5 Miata, front, for vehicle without retractable hard top. Confirm the stabilizer bar diameter and bushing dimensions before installation. Inspect the sway bar, brackets, and surrounding suspension components for wear before replacing the bushing kit. Because mounting hardware is not included, reuse or source the required hardware as needed for the repair.

Quality Assurance

Delphi subjects its OE-focused steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure testing. That validation supports consistent performance for front suspension service on the Mazda MX-5 Miata. Part number TD5637W is built as a standard replacement for direct-fit maintenance.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2015MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2014MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2013MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2012MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2011MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2010MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2009MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2008MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2007MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
2006MazdaMX-5 MiataFrontFor Vehicle Without Retractable Hard Top
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
K200625NE51-34-156
