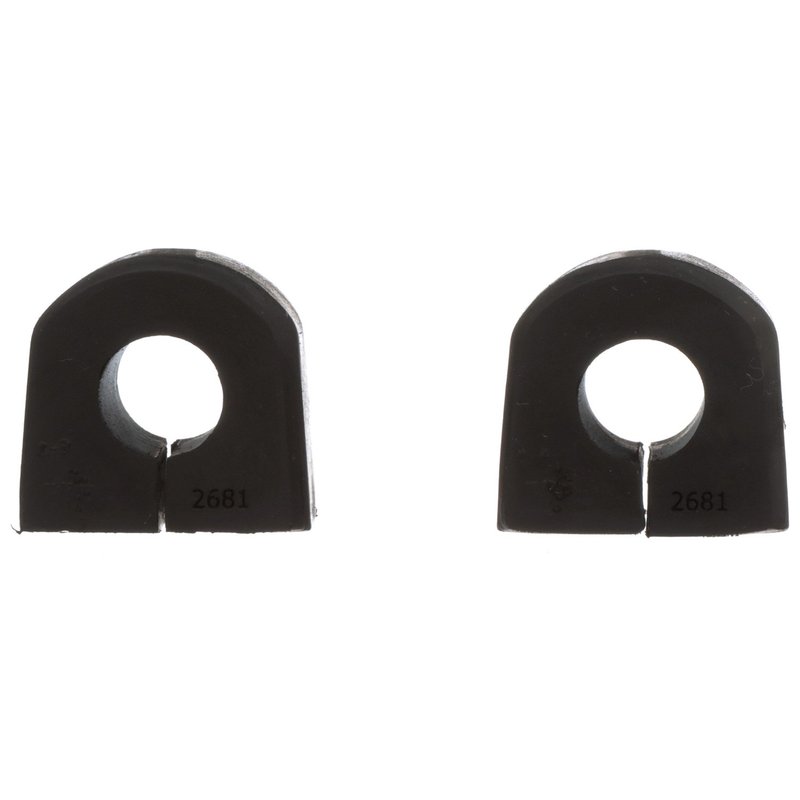

Delphi TD5652W Suspension Stabilizer Bar Bushing Kit - Front or Rear

Delphi TD5652W Stabilizer Bar Bushing Kit

Delphi TD5652W is a standard replacement suspension stabilizer bar bushing kit built with rubber and finished in black. It is engineered for front or rear use depending on the vehicle application, with fitment coverage for select Subaru Forester and Subaru Impreza models.

Key Features

• Rubber construction for stabilizer bar support and isolation
• Black finish
• Inside diameter: 16.0 mm
• Width: 28.0 mm
• Height: 36.0 mm
• Standard replacement grade
• Position-specific fitment for front or rear applications

Detailed Description

Delphi TD5652W is a suspension stabilizer bar bushing kit designed for OE-style replacement where the original bushing has worn, hardened, or lost its shape. Delphi applies dimensional and material analysis to help maintain proper compatibility with the original suspension design, and its OE-focused testing includes exposure to extreme temperatures and extended salt spray conditions. This part cross-references Genuine 20401AA020 for the same application. Compatible With Subaru Forester rear stabilizer bar service on 2003-2008 models, and Subaru Impreza front or rear applications across the listed years. The Delphi TD5652W part number is also referenced in aftermarket interchange listings 21047GA670 and 21047GA671.

What It Helps Address

• Sway bar clunking or rattling from worn bushings
• Excessive play at the stabilizer bar mounting point
• Noise caused by hardened or cracked rubber bushings
• Reduced suspension stability from deteriorated bushing material
• Fitment issues when replacing an OE-style Subaru stabilizer bar bushing

Installation Notes and Tips

• Verify stabilizer bar diameter before ordering; listed applications include 17 mm and 18 mm notes.
• Use the vehicle application details to confirm front or rear placement before installation.
• Inspect the stabilizer bar and surrounding hardware for wear before installing the new bushing.
• Clean the mounting area so the bushing seats correctly and evenly.

Quality Assurance

Delphi uses OE-based engineering and validation methods for its aftermarket steering and suspension components. The brand subjects parts to temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray testing, to evaluate durability and material performance.

Fitment

• Fits 2003-2008 Subaru Forester, rear, 17mm Diameter
• Fits 2003 Subaru Impreza, rear, 17mm Diameter; To 12/2002
• Fits 2002 Subaru Impreza, rear, 17mm Diameter
• Fits 1995-2001 Subaru Impreza, front, 18mm Diameter
• Fits 2000 Subaru Impreza, front, 18mm Diameter; To 06/1999
• Fits 1996-1999 Subaru Legacy, rear, 18mm Diameter
• Fits 1996 Subaru Impreza, front, 18mm Diameter; From 03/1996
• Fits 1995 Subaru Impreza, front, 18mm Diameter; To 06/1995
