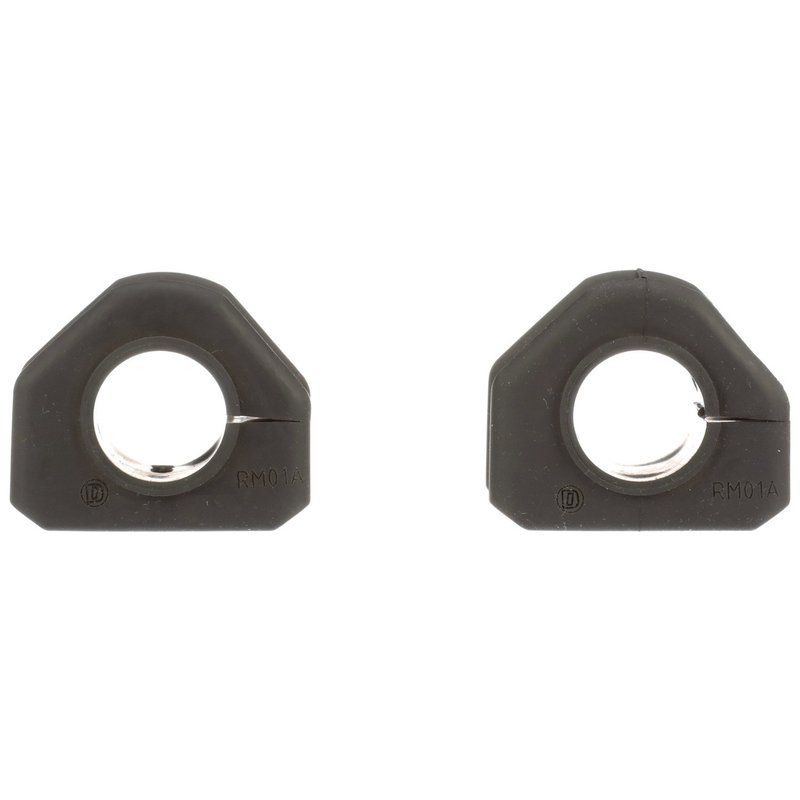

Delphi TD5664W Suspension Stabilizer Bar Bushing Kit - Front or Front To Frame

Front Stabilizer Bar Bushing Kit

Delphi TD5664W is a front suspension stabilizer bar bushing kit built as a standard replacement for select Ford, Lincoln, and Mercury applications. It uses rubber construction and a 0.984-inch inside diameter to support proper sway bar mounting at the front of the vehicle.

Delphi applies OE-focused dimensional and material analysis to help maintain fit and function across the front suspension. This part is a direct replacement choice for Windstar, Taurus, Sable, and Continental applications that call for the listed front stabilizer bar bushing configuration.

Key Features

• Rubber bushing material for front stabilizer bar service
• 0.984-inch inside diameter
• Standard replacement item grade
• Front position application
• OE-based dimensional and material analysis for fit consistency
• Cross-references MOOG Chassis Products K80019 for the same application

Fitment Details

• Fits 1995-2003 Ford Windstar, front to frame.
• Fits 1988-2002 Lincoln Continental, front to frame.
• Fits 1991-1999 Ford Taurus, front to frame.
• Fits 1986-1989 Ford Taurus, front to frame.
• Fits 1991-1999 Mercury Sable, front to frame.
• Fits 1986-1989 Mercury Sable, front to frame.
• Fits 1990 Ford Taurus, front with 25mm diameter sway bar.
• Fits 1990 Mercury Sable, front with 25mm diameter sway bar.

What This Part Helps Address

• Front sway bar movement caused by worn rubber bushings
• Clunking or rattling from the front stabilizer bar area
• Excess play at the sway bar-to-frame mounting point
• Reduced suspension stability from deteriorated bushing material
• Uneven front-end response from aged stabilizer bar support components

Installation Notes

Verify the front stabilizer bar diameter and mounting style before installation. This part is listed for front to frame applications on most covered vehicles, with 1990 Ford Taurus and 1990 Mercury Sable requiring a 25mm diameter sway bar. Confirm the existing bushing dimensions against the 0.984-inch inside diameter before ordering.

Quality Assurance

Delphi tests suspension components for extreme temperature exposure and salt spray resistance, and uses OE-level analysis to support dimensional and material consistency. That engineering approach helps this Delphi TD5664W bushing kit meet the needs of front suspension service on Ford Taurus, Mercury Sable, and related applications.
