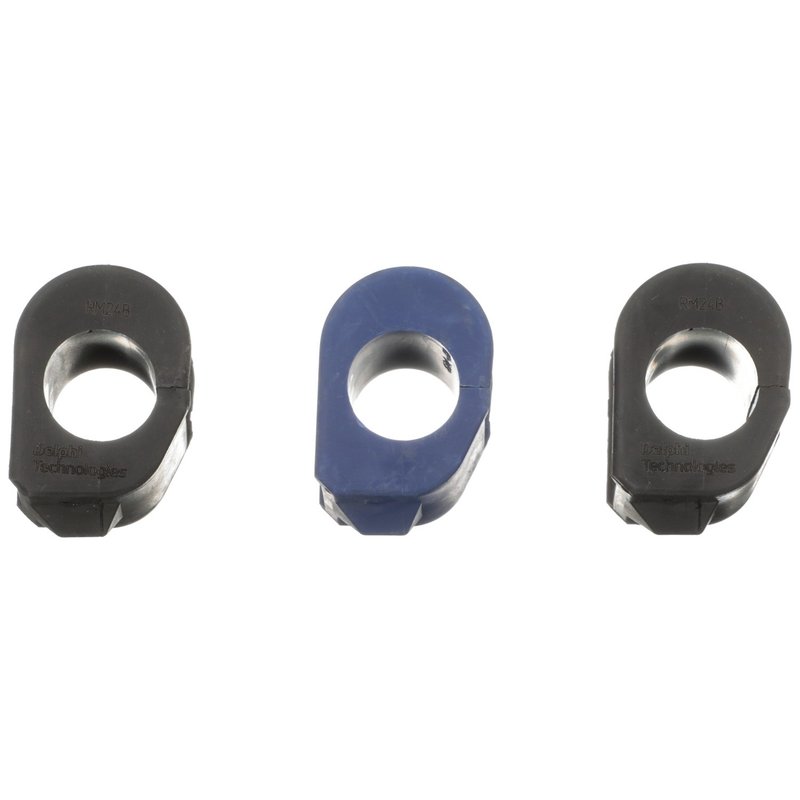

Delphi TD5678W Suspension Stabilizer Bar Bushing Kit - Front To Frame

Delphi Front Stabilizer Bar Bushing Kit

Restore front suspension control with this Delphi stabilizer bar bushing kit, part number TD5678W. Built as a standard replacement with rubber construction and a 1.338-inch inside diameter, it is made for front-to-frame mounting on vehicles using a 34mm diameter sway bar.

Delphi applies OE-focused dimensional and material analysis to help maintain proper fit between the original suspension design and the replacement bushing. This TD5678W kit is a direct service part for a wide range of Buick, Oldsmobile, Pontiac, and Cadillac applications, including Buick LeSabre and Pontiac Bonneville front suspension service.

Key Features

• Rubber stabilizer bar bushing for front-to-frame mounting
• 1.338-inch inside diameter for 34mm sway bar applications
• Standard replacement grade for routine suspension service
• OE-based dimensional and material analysis for fit consistency
• Built for front suspension use on select Buick, Oldsmobile, Pontiac, and Cadillac vehicles
• Part number TD5678W for easy identification

Fitment Details

• Fits 1986-1999 Buick LeSabre, front to frame, with 34mm diameter sway bar.
• Fits 1991-1996 Buick Park Avenue, front to frame, with 34mm diameter sway bar.
• Fits 1992-1999 Oldsmobile 88, front to frame, with 34mm diameter sway bar.
• Fits 1996-1999 Oldsmobile LSS, front to frame, with 34mm diameter sway bar.
• Fits 1997-1998 Oldsmobile Regency, front to frame, with 34mm diameter sway bar.
• Fits 1985-1996 Oldsmobile 98, front to frame, with 34mm diameter sway bar.
• Fits 1986-1991 Oldsmobile Delta 88, front to frame, with 34mm diameter sway bar.
• Fits 1987-1999 Pontiac Bonneville, front to frame, with 34mm diameter sway bar.
• Fits 1985-1993 Cadillac Commercial Chassis, front to frame, with 34mm diameter sway bar.
• Fits 1985-1993 Cadillac DeVille, front to frame, with 34mm diameter sway bar.
• Fits 1985-1992 Cadillac Fleetwood, front to frame, with 34mm diameter sway bar.
• Fits 1987-1992 Cadillac Brougham, front to frame.

What This Part Helps Address

• Front sway bar movement caused by worn rubber bushings
• Clunking or rattling from the front stabilizer bar area
• Excess body roll from deteriorated front-to-frame bushings
• Loose-feeling steering response related to stabilizer bar wear
• Uneven suspension noise during turns or over bumps

Installation Notes and Tips

Confirm the sway bar diameter before ordering, since this bushing is specified for 34mm applications and a 1.338-inch inside diameter. Verify front-to-frame placement and match the vehicle’s year, make, and model exactly to the listed fitment before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Delphi subjects steering and suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability and corrosion resistance. The brand’s OE background and dimensional/material analysis support consistent replacement fit for TD5678W across the listed Buick, Oldsmobile, Pontiac, and Cadillac applications.
