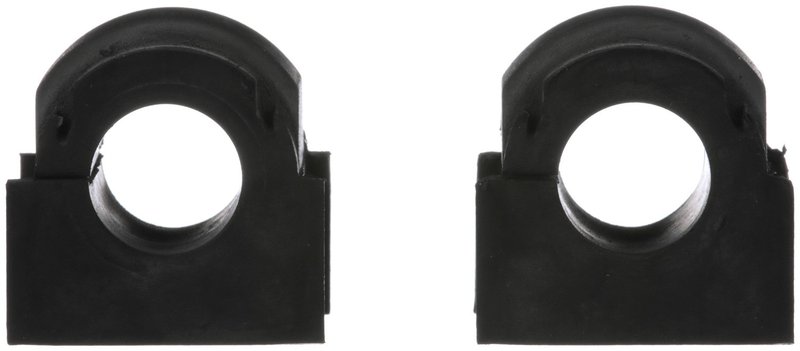

Delphi TD5847W Suspension Stabilizer Bar Bushing Kit - Front
| Brand | Delphi TD5847W |
|---|---|
| Position | Front |
| Material | Np |
| Color | Black |
| Inside Diameter | 0.95 |
| Inside Diameter | 24.25 |
| Grease Fitting Included | No |
| Width | 2.01 |
| Width | 51.0 |
| Height | 2.07 |
| Height | 52.5 |
| Grade Type | Standard replacement |
| Fits | Mazda · 3 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Black bushing kit. Simple, durable finish for suspension service.
No grease fitting. A straightforward design with fewer service points.
Cross-references Mevotech Supreme MS76894, MOOG Chassis Products K201473 and EH48-34-156A for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TD5847W Front Stabilizer Bar Bushing Kit
Delphi TD5847W is a front suspension stabilizer bar bushing kit built as a standard replacement for OE-style service. It is engineered for the 2010-2012 Mazda CX-7 front application and uses a black, non-porous material profile with precise dimensional sizing for a secure bar-to-bushing interface.
Key Features
- Front suspension stabilizer bar bushing kit for the Mazda CX-7
- Standard replacement grade for OE-style service
- Black finish with non-porous material construction
- Inside diameter: 0.95 in / 24.25 mm
- Width: 2.01 in / 51.0 mm
- Height: 2.07 in / 52.5 mm
- No grease fitting included
- Part number: TD5847W
Detailed Description
Delphi TD5847W is a front stabilizer bar bushing kit for 2010-2012 Mazda CX-7 models. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment between the aftermarket part and the original suspension layout. The bushing is specified with a 0.95-inch inside diameter, 2.01-inch width, and 2.07-inch height, making it a direct-match service part for front sway bar support. If you are replacing worn front stabilizer bushings on a Mazda CX-7, TD5847W provides a straightforward OE-style solution. This part cross-references MOOG Chassis Products K201473 for the same application.
What It Helps Address
- Front suspension clunking or rattling from worn stabilizer bushings
- Excessive sway bar movement at the front of the vehicle
- Loose or degraded bushing material from age and road exposure
- Noise during cornering, lane changes, or uneven-road driving
- Restoring stable sway bar support on a Mazda CX-7 front suspension
Installation Notes and Tips
Fits 2010-2012 Mazda CX-7, front. Confirm the sway bar diameter and bushing dimensions before installation, and inspect the stabilizer bar, brackets, and surrounding suspension components for wear. Because no grease fitting is included, install the bushing as a standard replacement service part and verify proper seating before returning the vehicle to service. Part number TD5847W should be matched to the front position only.
Quality Assurance
Delphi subjects its OE-based steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure testing. That testing approach supports durability validation for front suspension service on applications such as the Mazda CX-7.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Mazda | CX-7 | 2.5L | L4 | Front | — |
| 2011 | Mazda | CX-7 | 2.5L | L4 | Front | — |
| 2010 | Mazda | CX-7 | 2.5L | L4 | Front | — |
