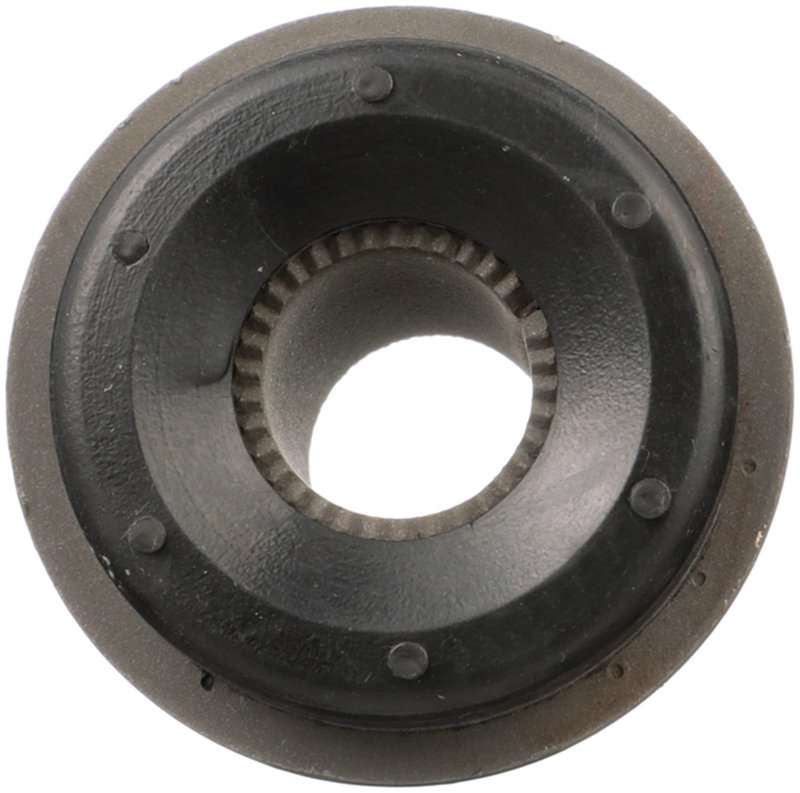

Delphi TD5877W Suspension Control Arm Bushing - Front Lower
| Brand | Delphi TD5877W |
|---|---|
| Position | Front Lower |
| 10151 | Oem equal |
| Bushing Color | Black |
| Length | 1.930 |
| Length | 49.02 |
| Inside Diameter | 0.750 |
| Inside Diameter | 19.05 |
| Outside Diameter | 1.630 |
| Outside Diameter | 41.40 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Greaseable | No |
| Steering Type | Power |
| Bushing Material | Rubber |
| Hardware Included | No |
| Fits | Chevrolet and GMC · 132 vehicles |
OEM equal. Direct-fit bushing engineered for compatibility with the original part.
Rubber construction. Helps isolate vibration while maintaining a smooth, controlled ride.
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering line.
Cross-references MOOG Chassis Products K6138 and 6258494 for the same application. See all 2.
Delphi TD5877W Front Lower Control Arm Bushing
Delphi TD5877W is a premium front lower suspension control arm bushing built for direct replacement service on classic GM trucks and vans. It uses rubber construction and OE-level dimensional control to support proper suspension geometry in demanding street use.
Key Features
- Front lower suspension control arm bushing for selected Chevrolet and GMC applications
- Rubber bushing material with black finish
- Premium grade type with OEM-equal design intent
- Inside diameter: 0.750 in (19.05 mm)
- Outside diameter: 1.630 in (41.40 mm)
- Length: 1.930 in (49.02 mm)
- Greaseable: No
- Hardware included: No
Detailed Description
Delphi TD5877W is engineered for front lower control arm service where accurate fit and consistent suspension movement matter. Delphi applies OE-focused dimensional and material analysis to help match the aftermarket part to the original application, and the bushing is tested for temperature extremes and salt-spray exposure to support durability in real-world conditions. This part cross-references MOOG Chassis Products K6138 for the same application. It is a direct-fit option for Chevrolet C10, Chevrolet C10 Suburban, Chevrolet G10, Chevrolet G20, GMC C1500, GMC C1500 Suburban, GMC G1500, GMC G2500, Chevrolet K5 Blazer, GMC Jimmy, Chevrolet Blazer, GMC G15/G1500 Van, and GMC G25/G2500 Van front lower positions. Delphi TD5877W is a practical replacement choice when servicing worn front lower bushings on Chevrolet C10 and GMC C1500 platforms.
What It Helps Address
- Front-end looseness from worn control arm bushings
- Clunking or knocking from suspension movement
- Excessive play that affects steering response
- Uneven tire wear caused by suspension instability
- Restoring control arm support on aging GM chassis
Installation Notes and Tips
Install in the front lower control arm position only. Inspect the control arm, pivot points, and surrounding suspension components before installation, and replace any damaged parts as needed. Because mounting hardware is not included, reuse or source the required hardware separately if your application calls for it. Verify dimensions and vehicle fitment before pressing the bushing into place.
Quality Assurance
Delphi uses OE-based engineering and validation methods for this bushing, including dimensional and material analysis plus environmental testing for heat and corrosion exposure. That process supports consistent fitment for Chevrolet C10 and GMC C1500 front lower suspension service across the listed applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1986 | Chevrolet | C10 | Front Lower | — |
| 1986 | Chevrolet | C10 Suburban | Front Lower | — |
| 1986 | Chevrolet | G10 | Front Lower | — |
| 1986 | Chevrolet | G20 | Front Lower | — |
| 1986 | GMC | C1500 | Front Lower | — |
| 1986 | GMC | C1500 Suburban | Front Lower | — |
| 1986 | GMC | G1500 | Front Lower | — |
| 1986 | GMC | G2500 | Front Lower | — |
| 1985 | Chevrolet | C10 | Front Lower | — |
| 1985 | Chevrolet | C10 Suburban | Front Lower | — |
| 1985 | Chevrolet | G10 | Front Lower | — |
| 1985 | Chevrolet | G20 | Front Lower | — |
| 1985 | GMC | C1500 | Front Lower | — |
| 1985 | GMC | C1500 Suburban | Front Lower | — |
| 1985 | GMC | G1500 | Front Lower | — |
| 1985 | GMC | G2500 | Front Lower | — |
| 1984 | Chevrolet | C10 | Front Lower | — |
| 1984 | Chevrolet | C10 Suburban | Front Lower | — |
| 1984 | Chevrolet | G10 | Front Lower | — |
| 1984 | Chevrolet | G20 | Front Lower | — |
| 1984 | GMC | C1500 | Front Lower | — |
| 1984 | GMC | C1500 Suburban | Front Lower | — |
| 1984 | GMC | G1500 | Front Lower | — |
| 1984 | GMC | G2500 | Front Lower | — |
| 1983 | Chevrolet | C10 | Front Lower | — |
| 1983 | Chevrolet | C10 Suburban | Front Lower | — |
| 1983 | Chevrolet | G10 | Front Lower | — |
| 1983 | Chevrolet | G20 | Front Lower | — |
| 1983 | GMC | C1500 | Front Lower | — |
| 1983 | GMC | C1500 Suburban | Front Lower | — |
| 1983 | GMC | G1500 | Front Lower | — |
| 1983 | GMC | G2500 | Front Lower | — |
| 1982 | Chevrolet | C10 | Front Lower | — |
| 1982 | Chevrolet | C10 Suburban | Front Lower | — |
| 1982 | Chevrolet | G10 | Front Lower | — |
| 1982 | Chevrolet | G20 | Front Lower | — |
| 1982 | Chevrolet | K5 Blazer | Front Lower | — |
| 1982 | GMC | C1500 | Front Lower | — |
| 1982 | GMC | C1500 Suburban | Front Lower | — |
| 1982 | GMC | G1500 | Front Lower | — |
| 1982 | GMC | G2500 | Front Lower | — |
| 1982 | GMC | Jimmy | Front Lower | — |
| 1981 | Chevrolet | C10 | Front Lower | — |
| 1981 | Chevrolet | C10 Suburban | Front Lower | — |
| 1981 | Chevrolet | G10 | Front Lower | — |
| 1981 | Chevrolet | G20 | Front Lower | — |
| 1981 | Chevrolet | K5 Blazer | Front Lower | — |
| 1981 | GMC | C1500 | Front Lower | — |
| 1981 | GMC | C1500 Suburban | Front Lower | — |
| 1981 | GMC | G1500 | Front Lower | — |
| 1981 | GMC | G2500 | Front Lower | — |
| 1981 | GMC | Jimmy | Front Lower | — |
| 1980 | Chevrolet | C10 | Front Lower | — |
| 1980 | Chevrolet | C10 Suburban | Front Lower | — |
| 1980 | Chevrolet | G10 | Front Lower | — |
| 1980 | Chevrolet | G20 | Front Lower | — |
| 1980 | Chevrolet | K5 Blazer | Front Lower | — |
| 1980 | GMC | C1500 | Front Lower | — |
| 1980 | GMC | C1500 Suburban | Front Lower | — |
| 1980 | GMC | G1500 | Front Lower | — |
| 1980 | GMC | G2500 | Front Lower | — |
| 1980 | GMC | Jimmy | Front Lower | — |
| 1979 | Chevrolet | C10 | Front Lower | — |
| 1979 | Chevrolet | C10 Suburban | Front Lower | — |
| 1979 | Chevrolet | G10 | Front Lower | — |
| 1979 | Chevrolet | G20 | Front Lower | — |
| 1979 | Chevrolet | K5 Blazer | Front Lower | — |
| 1979 | GMC | C1500 | Front Lower | — |
| 1979 | GMC | C1500 Suburban | Front Lower | — |
| 1979 | GMC | G1500 | Front Lower | — |
| 1979 | GMC | G2500 | Front Lower | — |
| 1979 | GMC | Jimmy | Front Lower | — |
| 1978 | Chevrolet | C10 | Front Lower | — |
| 1978 | Chevrolet | C10 Suburban | Front Lower | — |
| 1978 | Chevrolet | G10 | Front Lower | — |
| 1978 | Chevrolet | G20 | Front Lower | — |
| 1978 | Chevrolet | K5 Blazer | Front Lower | — |
| 1978 | GMC | C15 | Front Lower | — |
| 1978 | GMC | C15 Suburban | Front Lower | — |
| 1978 | GMC | G15 | Front Lower | — |
| 1978 | GMC | G25 | Front Lower | — |
| 1978 | GMC | Jimmy | Front Lower | — |
| 1977 | Chevrolet | C10 | Front Lower | — |
| 1977 | Chevrolet | C10 Suburban | Front Lower | — |
| 1977 | Chevrolet | G10 | Front Lower | — |
| 1977 | Chevrolet | G20 | Front Lower | — |
| 1977 | Chevrolet | K5 Blazer | Front Lower | — |
| 1977 | GMC | C15 | Front Lower | — |
| 1977 | GMC | C15 Suburban | Front Lower | — |
| 1977 | GMC | G15 | Front Lower | — |
| 1977 | GMC | G25 | Front Lower | — |
| 1977 | GMC | Jimmy | Front Lower | — |
| 1976 | Chevrolet | C10 | Front Lower | — |
| 1976 | Chevrolet | C10 Suburban | Front Lower | — |
| 1976 | Chevrolet | G10 | Front Lower | — |
| 1976 | Chevrolet | G20 | Front Lower | — |
| 1976 | Chevrolet | K5 Blazer | Front Lower | — |
| 1976 | GMC | C15 | Front Lower | — |
| 1976 | GMC | C15 Suburban | Front Lower | — |
| 1976 | GMC | G15 | Front Lower | — |
| 1976 | GMC | G25 | Front Lower | — |
| 1976 | GMC | Jimmy | Front Lower | — |
| 1975 | Chevrolet | C10 | Front Lower | — |
| 1975 | Chevrolet | C10 Suburban | Front Lower | — |
| 1975 | Chevrolet | G10 | Front Lower | — |
| 1975 | Chevrolet | G20 | Front Lower | — |
| 1975 | Chevrolet | K5 Blazer | Front Lower | — |
| 1975 | GMC | C15 | Front Lower | — |
| 1975 | GMC | C15 Suburban | Front Lower | — |
| 1975 | GMC | G15 | Front Lower | — |
| 1975 | GMC | G25 | Front Lower | — |
| 1975 | GMC | Jimmy | Front Lower | — |
| 1974 | Chevrolet | Blazer | Front Lower | — |
| 1974 | Chevrolet | C10 Pickup | Front Lower | — |
| 1974 | Chevrolet | C10 Suburban | Front Lower | — |
| 1974 | Chevrolet | G10 Van | Front Lower | — |
| 1974 | Chevrolet | G20 Van | Front Lower | — |
| 1974 | GMC | C15/C1500 Pickup | Front Lower | — |
| 1974 | GMC | C15/C1500 Suburban | Front Lower | — |
| 1974 | GMC | G15/G1500 Van | Front Lower | — |
| 1974 | GMC | G25/G2500 Van | Front Lower | — |
| 1974 | GMC | Jimmy | Front Lower | — |
| 1973 | Chevrolet | Blazer | Front Lower | — |
| 1973 | Chevrolet | C10 Pickup | Front Lower | — |
| 1973 | Chevrolet | C10 Suburban | Front Lower | — |
| 1973 | Chevrolet | G10 Van | Front Lower | — |
| 1973 | Chevrolet | G20 Van | Front Lower | — |
| 1973 | GMC | C15/C1500 Pickup | Front Lower | — |
| 1973 | GMC | C15/C1500 Suburban | Front Lower | — |
| 1973 | GMC | G15/G1500 Van | Front Lower | — |
| 1973 | GMC | G25/G2500 Van | Front Lower | — |
| 1973 | GMC | Jimmy | Front Lower | — |
| No rows match your filter. | ||||
