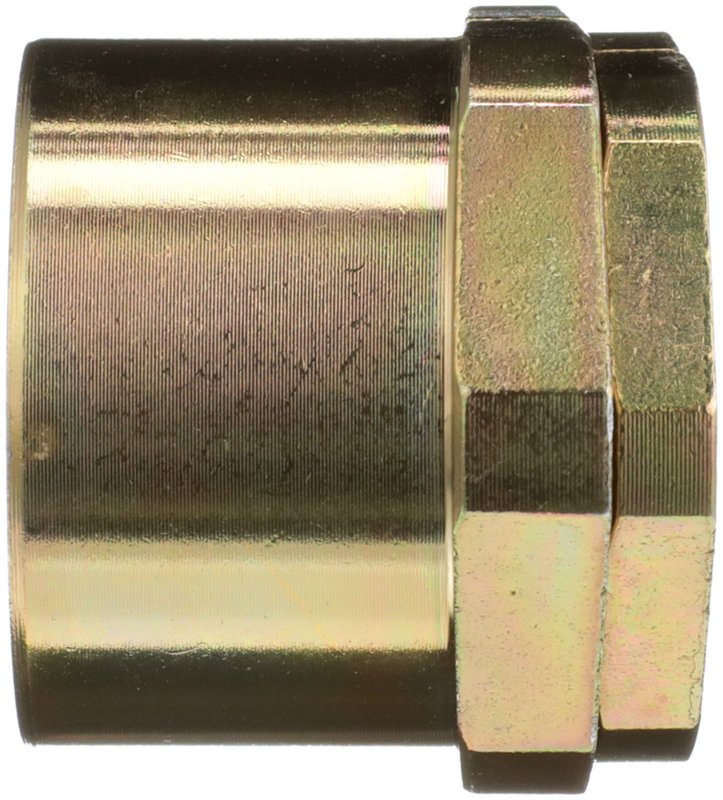

Delphi TD5924W Alignment Caster / Camber Bushing - Front

Front Alignment Caster/Camber Bushing for Ford and Mazda

Delphi TD5924W is a front alignment caster/camber bushing built for vehicles that need precise suspension geometry control. It is a steel replacement part for a wide range of Ford Super Duty, Econoline, Ranger, Explorer, Bronco II, and Mazda truck applications.

With OE-focused dimensional and material analysis, this bushing is made to match the original fit and function expected in front suspension alignment service. Delphi also subjects its steering and suspension parts to extreme temperature and salt-spray testing to verify durability in demanding road conditions.

Key Features

• Steel construction for front suspension alignment service
• Front position caster/camber bushing
• Inside diameter: 0.83 in. / 21.0 mm
• Outside diameter: 1.42 in. / 36.0 mm
• OE-based dimensional and material analysis for fit consistency
• Tested for temperature extremes below -40 C and above 120 C
• Exposed to 720 hours of salt spray testing

Detailed Description

Delphi TD5924W is used in front suspension alignment service where caster and camber settings need to be restored or corrected. It is a direct-fit style alignment bushing for Ford F-250 Super Duty, Ford F-350 Super Duty, Ford E-Series vans, Ford Excursion, Ford Ranger, Ford F-150, Ford Explorer, and Mazda B-Series applications. This part cross-references MOOG Chassis Products K80109 for the same application.

Fits 1999-2022 Ford F-250 Super Duty, front; fits 1999-2022 Ford F-350 Super Duty, front; fits 1999-2017 Ford E-350 Super Duty, front; fits 2003-2014 Ford E-150, front; fits 2003-2014 Ford E-250, front; fits 2003-2005 Ford E-150 Club Wagon, front; fits 2003-2005 Ford E-350 Club Wagon, front; fits 2000-2005 Ford Excursion, front; fits 1992-2002 Ford E-150 Econoline, front; fits 1992-2002 Ford E-150 Econoline Club Wagon, front; fits 1992-2002 Ford E-250 Econoline, front; fits 1987-1998 Ford F-250, front; fits 1997 Ford F-250 HD, front; fits 1987-1997 Ford F-350, front; fits 1989-1997 Ford Ranger, front; fits 1994-1997 Mazda B2300, front; fits 1994-1997 Mazda B3000, front; fits 1994-1997 Mazda B4000, front; fits 1987-1996 Ford F-150, front; fits 1991-1994 Ford Explorer, front; fits 1991-1994 Mazda Navajo, front; fits 1989-1990 Ford Bronco II, front.

What It Helps Correct

• Front-end alignment issues after suspension service
• Incorrect caster or camber settings
• Uneven tire wear caused by alignment drift
• Steering pull related to front suspension geometry
• Worn or damaged alignment bushing replacement needs

Installation Notes and Tips

Verify the front suspension application, bushing dimensions, and alignment requirements before installation. Because this part is used in alignment correction, a professional wheel alignment should be performed after replacement to confirm caster and camber settings are within specification.

Quality Assurance

Delphi applies OE engineering practices to its aftermarket steering portfolio and validates parts through dimensional and material analysis. TD5924W is also tested for extreme temperatures and long-duration salt exposure to support durability in demanding service conditions.
