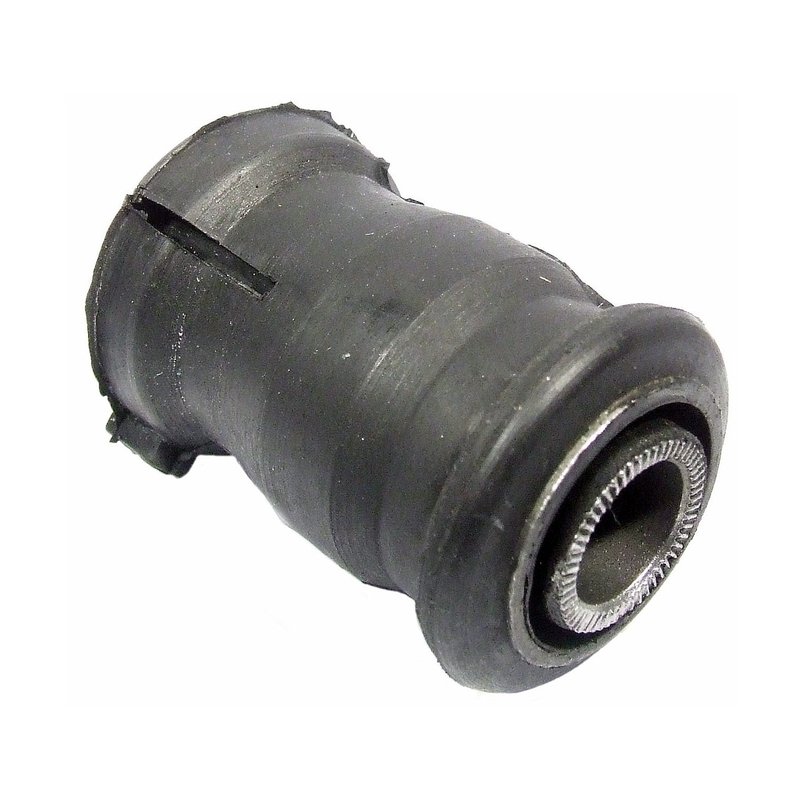

Delphi TD720W Suspension Control Arm Bushing - Front Right Lower

OE-Style Front Right Lower Bushing

Delphi TD720W is a suspension control arm bushing built for the front right lower position on select Toyota, Pontiac, and Matrix applications. It uses OE-based dimensional and material analysis to support proper fit and consistent suspension performance.

Key Features

• Suspension control arm bushing for the front right lower position
• Standard replacement grade for OE-style service
• Length: 59.5 mm
• Inside diameter: 14.3 mm
• Outside diameter: 35.0 mm
• Built using Delphi OE-focused engineering and dimensional checks
• Tested for temperature extremes below -40 C and above 120 C
• Exposed to 720 hours of salt spray testing

Detailed Description

The Delphi TD720W suspension control arm bushing is made for vehicles that need a precise front suspension bushing replacement. It is engineered around OE specifications to help maintain correct control arm location and suspension geometry on applications such as 2009-2013 Toyota Corolla, front right lower; 2009-2013 Toyota Matrix, front right lower; 2003-2010 Pontiac Vibe, front lower forward; and 2001-2004 Toyota RAV4, front lower forward. Delphi TD720W is also listed for 2003-2008 Toyota Corolla and 2003-2008 Toyota Matrix in the front lower forward position.

This part cross-references Beck/Arnley 102-5416 and MOOG Chassis Products K200782 for the same application.

What It Helps Address

• Excessive front suspension play
• Clunking or knocking from worn control arm bushings
• Uneven tire wear caused by loose suspension geometry
• Steering wander or reduced front-end stability
• Cracked, dry-rotted, or separated original bushings

Installation Notes and Tips

Verify the position before ordering, since this bushing is listed for front right lower and front lower forward applications depending on vehicle. Confirm the dimensions against the original part and inspect the control arm, mounting points, and surrounding suspension components for wear before installation. Proper pressing and alignment procedures are important after replacement.

Quality Assurance

Delphi applies OE-focused testing and material validation to its aftermarket steering and suspension parts. TD720W is evaluated for temperature resistance and corrosion exposure to support long-term service in demanding conditions.
