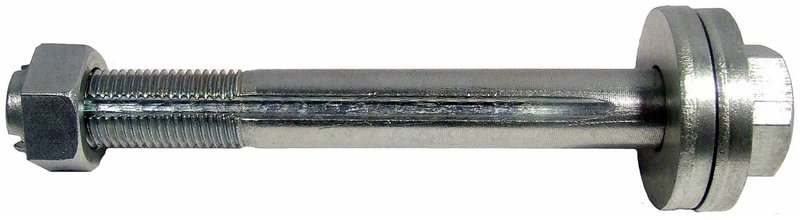

Delphi TD767W Suspension Control Arm Bolt
| Brand | Delphi TD767W |
|---|---|
| Material | Steel |
| Length | 131.00 |
| Length | 5.157 |
| Color | Silver |
| Integral Washer Outside Diameter | 1.378 |
| Integral Washer Outside Diameter | 35.00 |
| Bolt Grade | 10.9 |
| Thread Length | 1.496 |
| Thread Length | 38.00 |
| Thread Type | Fine |
| Integral Washer Inside Diameter | 0.563 |
| Integral Washer Inside Diameter | 14.30 |
| Head Drive Type | Hex |
| Under Head Length | 122.00 |
| Under Head Length | 4.803 |
| Fits | Mercedes-Benz · 24 vehicles |
OE expertise. Delphi applies OE engineering to its aftermarket steering and suspension hardware.
Steel construction. Built with a 10.9-grade steel bolt for dependable strength.
Fine-thread design. Helps deliver precise fastening and secure clamping.
Cross-references 0003300018 and A 000 330 00 18 for the same application. See all 2.
Delphi TD767W Suspension Control Arm Bolt
The Delphi TD767W is a steel suspension control arm bolt built for OE-style service on select Mercedes-Benz applications. It is engineered with a fine thread, hex head drive, and integral washer design to support secure suspension fastening where dimensional accuracy matters.
Key Features
- Steel construction with a silver finish
- Grade 10.9 bolt for high-strength suspension use
- Fine thread for precise clamping and retention
- Hex head drive for standard service tools
- Integral washer design with 35.00 mm outside diameter and 14.30 mm inside diameter
- Overall length: 131.00 mm; under-head length: 122.00 mm
- Thread length: 38.00 mm
Detailed Description
Delphi TD767W is a suspension control arm bolt designed with OE-focused dimensional and material analysis to match the fit and function expected in factory-style steering and suspension service. Delphi subjects its OE safety technology and aftermarket steering components to extreme temperature testing below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure, to evaluate durability in demanding conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Compatible with Mercedes-Benz SL500, SL600, SL55 AMG, SL63 AMG, SL65 AMG, and SL550 applications, the Delphi TD767W supports accurate suspension hardware replacement where the original bolt specification is required. The Delphi TD767W part number is also useful when matching OE-style suspension hardware by exact dimensions and thread profile.
What This Part Helps Address
- Worn or stretched suspension control arm bolt hardware
- Incorrect thread engagement during suspension service
- Loose or inconsistent control arm fastening
- Corrosion-related hardware replacement needs
- OE-spec suspension bolt matching for Mercedes-Benz SL-Class models
Installation Notes and Tips
Verify bolt length, thread type, and washer dimensions against the removed hardware before installation. Use the correct hex tool and follow the vehicle manufacturer’s torque specifications for the suspension control arm fastener. Confirm fitment by model and year before ordering; this part fits 2003-2006 Mercedes-Benz SL500, 2004-2008 Mercedes-Benz SL600, 2003-2008 Mercedes-Benz SL55 AMG, 2005-2009 Mercedes-Benz SL65 AMG, 2007-2009 Mercedes-Benz SL550, and 2009 Mercedes-Benz SL63 AMG.
Quality Assurance
Delphi applies OE expertise to its aftermarket steering and suspension portfolio, with dimensional and material analysis used to support compatibility between OE and replacement hardware. The TD767W is tested for temperature extremes and salt spray exposure to evaluate performance in harsh service conditions.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2009 | Mercedes-Benz | SL550 | — | — | — |
| 2009 | Mercedes-Benz | SL63 AMG | — | — | — |
| 2009 | Mercedes-Benz | SL65 AMG | — | — | — |
| 2008 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
| 2008 | Mercedes-Benz | SL550 | — | — | — |
| 2008 | Mercedes-Benz | SL600 | — | — | — |
| 2008 | Mercedes-Benz | SL65 AMG | — | — | — |
| 2007 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
| 2007 | Mercedes-Benz | SL550 | — | — | — |
| 2007 | Mercedes-Benz | SL600 | — | — | — |
| 2007 | Mercedes-Benz | SL65 AMG | — | — | — |
| 2006 | Mercedes-Benz | SL500 | — | — | — |
| 2006 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
| 2006 | Mercedes-Benz | SL600 | — | — | — |
| 2006 | Mercedes-Benz | SL65 AMG | — | — | — |
| 2005 | Mercedes-Benz | SL500 | — | — | — |
| 2005 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
| 2005 | Mercedes-Benz | SL600 | — | — | — |
| 2005 | Mercedes-Benz | SL65 AMG | — | — | — |
| 2004 | Mercedes-Benz | SL500 | — | — | — |
| 2004 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
| 2004 | Mercedes-Benz | SL600 | — | — | — |
| 2003 | Mercedes-Benz | SL500 | — | — | — |
| 2003 | Mercedes-Benz | SL55 AMG | 5.5L | V8 | — |
