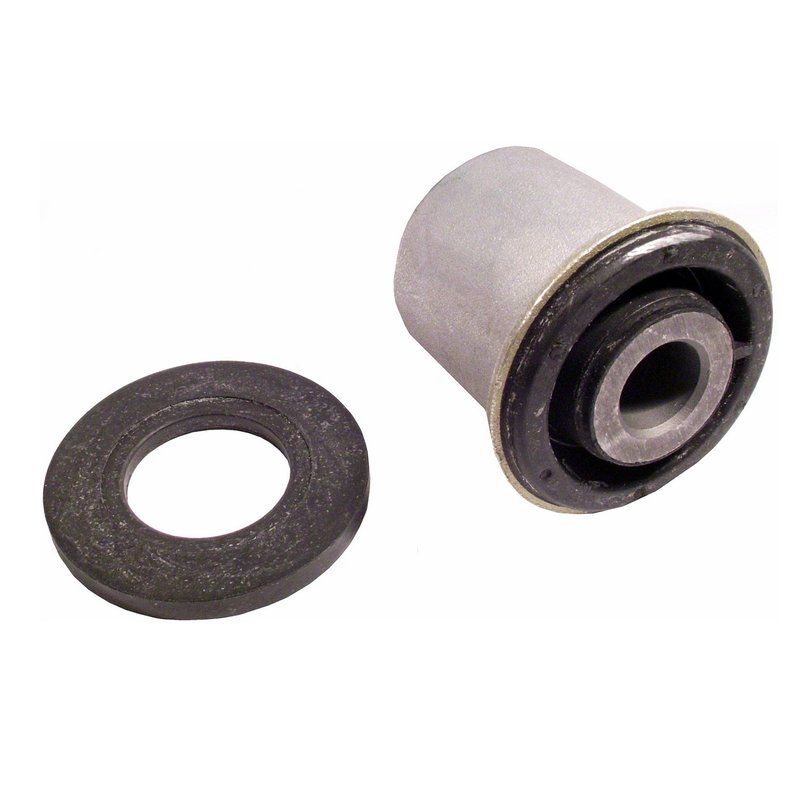

Delphi TD778W Suspension Control Arm Bushing - Front Lower Inner Forward
OE Quality 60-Day Returns
Delphi

Delphi TD778W Suspension Control Arm Bushing - Front Lower Inner Forward

Brand Delphi TD778W
Position Front Lower Inner Forward
Height 2.165
Height 55.0
Inside Diameter 0.559
Inside Diameter 14.2
Item Grade Standard Replacement
Material Rubber
Mounting Type Press Fit
Outside Diameter 1.532
Outside Diameter 38.9
Wall Thickness 0.486
Wall Thickness 12.4
Fits Nissan · 2 vehicles

Standard replacement. Press-fit control arm bushing for straightforward service.

Rubber construction. Helps absorb vibration while maintaining a compliant ride.

OE expertise. Delphi applies dimensional and material analysis for compatibility.

Cross-references 545608H300 and BC69480 for the same application. See all 2.

$24.41Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $24.41
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Control Arm Bushing options

Delphi TD778W Suspension Control Arm Bushing

Delphi TD778W is a front lower inner forward suspension control arm bushing built with rubber and standard replacement dimensions for a precise OE-style service fit. It is engineered for 2005-2006 Nissan X-Trail applications and supports consistent suspension movement at the control arm pivot point.

Key Features

  • Rubber construction for controlled flex and vibration isolation
  • Press-fit mounting type for the front lower inner forward position
  • Standard replacement grade for OE-style service work
  • Measured dimensions: 14.2 mm inside diameter, 38.9 mm outside diameter, 55.0 mm height
  • Delphi OE-focused dimensional and material analysis for fit consistency
  • Part number TD778W for easy catalog matching

Application Details

Compatible with 2005-2006 Nissan X-Trail, front lower inner forward. Delphi TD778W is built for the suspension control arm bushing location where the arm pivots under load, helping maintain alignment stability and suspension response. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

  • Excessive suspension play at the control arm pivot
  • Clunking or knocking from worn bushing material
  • Uneven tire wear related to bushing wear and alignment movement
  • Loose or imprecise front-end handling
  • Cracked, hardened, or deteriorated rubber bushings

Installation Notes

TD778W uses a press-fit mounting design, so proper bushing removal and installation tools are required. Confirm the front lower inner forward position on the vehicle before service, and verify dimensions against the original part to ensure correct seating in the control arm.

Quality Assurance

Delphi applies OE-focused testing and material analysis to its steering and suspension parts. This bushing is evaluated for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray testing to support durability in demanding service conditions.

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2006NissanX-TrailFront Lower Inner Forward—
2005NissanX-TrailFront Lower Inner Forward—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
545608H300BC69480
