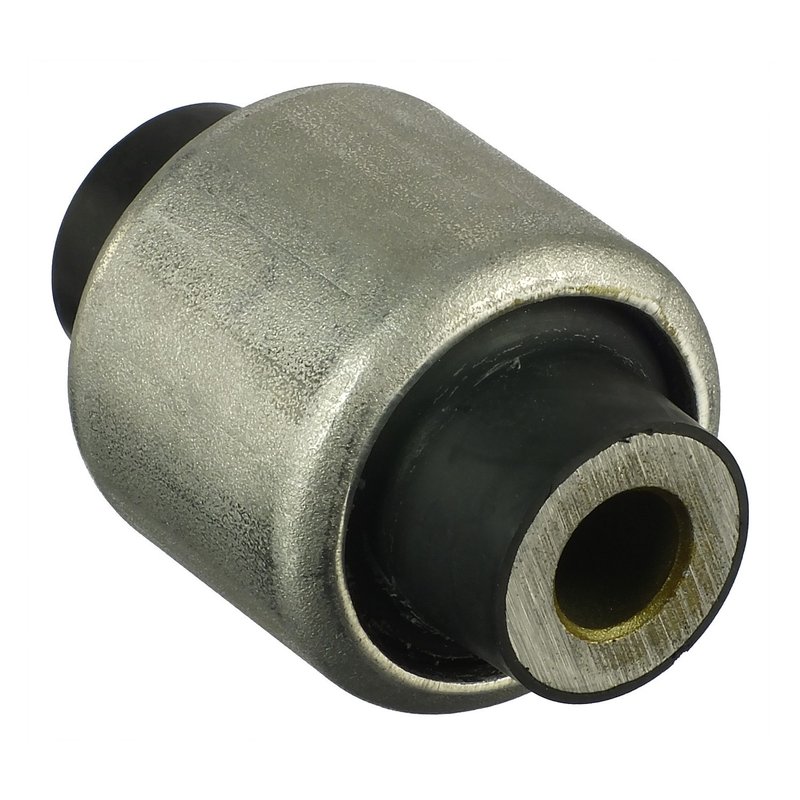

Delphi TD930W Suspension Control Arm Bushing - Front Lower

OE-Style Front Lower Control Arm Bushing

Delphi TD930W is a rubber suspension control arm bushing built for front lower applications on select Mercedes-Benz models. It is a press-fit, standard replacement bushing sized for OE-style dimensional match and consistent suspension location control.

Compatible with Mercedes-Benz E350 front lower, E250 front lower inner, E400 front lower inner, and E550 front lower inner applications, this Delphi bushing is engineered around OE fit and material analysis for dependable replacement service.

Key Features

• Rubber construction for suspension isolation and control
• Press-fit mounting type for front lower control arm service
• Standard replacement grade for OE-style repair
• Designed for front lower and front lower inner positions
• Delphi TD930W part number for accurate ordering and lookup
• Cross-reference: Dorman - OE Solutions 526-922 for the same application

Detailed Description

Delphi TD930W is a suspension control arm bushing made for front lower use on Mercedes-Benz E-Class applications. The rubber design helps maintain control arm location while reducing unwanted movement at the suspension pivot point. Delphi applies OE-focused dimensional and material analysis to support proper compatibility between the replacement part and the original suspension design. The bushing measures 14.2 mm inside diameter, 53.2 mm outside diameter, and 80.0 mm height, with a 19.5 mm wall thickness.

This part is a direct-fit style replacement for 2009-2016 Mercedes-Benz E350 front lower, 2014-2016 Mercedes-Benz E250 front lower inner, 2013-2016 Mercedes-Benz E400 front lower inner, and 2010-2011 Mercedes-Benz E550 front lower inner applications. Use Delphi TD930W when replacing a worn front lower control arm bushing on these Mercedes-Benz models.

Common Problems This Part Can Address

• Excessive play in the front lower control arm pivot
• Clunking or knocking from worn suspension bushings
• Uneven tire wear related to suspension movement
• Loose or imprecise front-end handling
• Vibration or harshness caused by deteriorated rubber bushings

Installation Notes and Tips

This is a press-fit bushing, so proper suspension service tools are required for removal and installation. Inspect the control arm, mounting surfaces, and adjacent hardware for wear before installation. Confirm the vehicle position and application details against the fitment list before ordering, especially for Mercedes-Benz E350 front lower and E250, E400, or E550 front lower inner applications.

Quality Assurance

Delphi tests suspension components for extreme temperature exposure and salt-spray resistance, and uses OE-oriented dimensional and material analysis to support fit and performance consistency. The TD930W part number reflects Delphi’s aftermarket steering and suspension expertise for OE-style replacement service.
