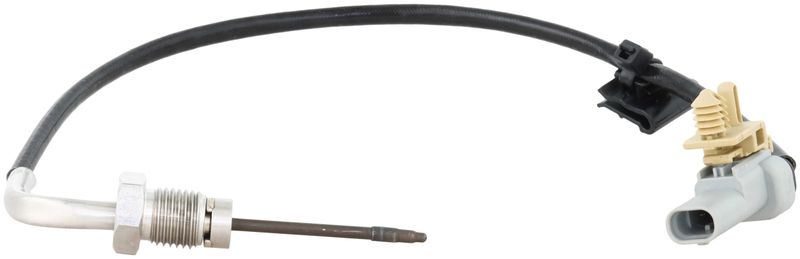

Delphi TS30522 Exhaust Gas Temperature (EGT) Sensor - Catalytic Converter or Catalytic Converter Forward
| Brand | Delphi TS30522 |
|---|---|
| Position | Catalytic Converter and Catalytic Converter Forward |
| Maximum Temperature | 850 |
| Wiring Harness Length | 12.2 |
| Wiring Harness Length | 315 |
| Connector Color | Gray |
| Terminal Type | Pin |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 2 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Mounting Type | Threaded nut |
| Package Contents | Exhaust gas temperature (egt) sensor |
| Position(s) | Catalytic converter, catalytic converter forward. for the positio |
| Fits | Cadillac, Chevrolet, and GMC · 26 vehicles |
OE-tested and calibrated. Delphi sensors are validated to OE standards for accurate readings.
Threaded nut mounting. A secure, straightforward sensor installation.
Exhaust gas temperature sensor. Monitors exhaust heat for precise temperature readings.
Cross-references Standard Ignition ETS238, 55491112 and EGR580 for the same application. See all 3.
Delphi TS30522 Exhaust Gas Temperature Sensor
The Delphi TS30522 exhaust gas temperature (EGT) sensor is built for vehicles that rely on accurate exhaust monitoring to manage emissions and aftertreatment performance. It is a direct-fit sensor for select Cadillac, Chevrolet, and GMC applications, including Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models.
Key Features
- Exhaust Gas Temperature (EGT) sensor for emission control systems
- OE-calibrated and tested to support accurate temperature readings
- Maximum temperature rating: 850
- 12.2 in. / 315 mm wiring harness length
- Gray connector with oval shape, 1 connector, 2 terminals
- Male connector and male terminal design
- Threaded nut mounting type for secure installation
- Positioned at the catalytic converter or catalytic converter forward, depending on application
Detailed Description
Delphi TS30522 is an EGT sensor engineered for precise exhaust temperature measurement in modern emission control systems. Delphi validates and calibrates its sensors to OE standards, helping maintain accurate readings across the supported applications. This part number is used on select 2020-2023 Cadillac Escalade and Escalade ESV, 2020-2023 Chevrolet Silverado 1500, 2021-2023 Chevrolet Tahoe, and 2020-2023 GMC Sierra 1500, Yukon, and Yukon XL models, with the exact mounting position depending on vehicle configuration. This part cross-references Standard Ignition ETS238 for the same application.
What It Helps Address
- Incorrect exhaust gas temperature readings
- Emission control system fault codes related to the EGT circuit
- Aftertreatment monitoring issues at the catalytic converter
- Sensor signal problems caused by heat exposure or wiring degradation
- Driveability concerns tied to inaccurate exhaust temperature data
Installation Notes and Tips
Verify the vehicle application and sensor position before installation. The supported locations include catalytic converter and catalytic converter forward, and the correct placement varies by year, make, and model. Confirm connector style, harness length, and threaded nut mounting requirements against the original sensor on the vehicle. For fitment-specific service, use the application listing for 2020-2023 Cadillac Escalade, 2020-2023 Chevrolet Silverado 1500, and 2020-2023 GMC Yukon family vehicles.
Quality Assurance
Delphi sensors are developed with OE-focused validation and product testing to support accurate output and consistent performance. The TS30522 is calibrated to OE standards and built for emission control service on select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon applications.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Cadillac | Escalade | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2023 | Cadillac | Escalade ESV | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2023 | Chevrolet | Suburban | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2023 | Chevrolet | Tahoe | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2023 | GMC | Yukon | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2023 | GMC | Yukon XL | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Cadillac | Escalade | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Cadillac | Escalade ESV | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Chevrolet | Silverado 1500 | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Chevrolet | Silverado 1500 LTD | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Chevrolet | Suburban | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | Chevrolet | Tahoe | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | GMC | Sierra 1500 | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | GMC | Sierra 1500 Limited | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | GMC | Yukon | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2022 | GMC | Yukon XL | — | 3.0L | L6 | Catalytic Converter Forward | — |
| 2021 | Cadillac | Escalade | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | Cadillac | Escalade ESV | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | Chevrolet | Silverado 1500 | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | Chevrolet | Suburban | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | Chevrolet | Tahoe | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | GMC | Sierra 1500 | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | GMC | Yukon | — | 3.0L | L6 | Catalytic Converter | — |
| 2021 | GMC | Yukon XL | — | 3.0L | L6 | Catalytic Converter | — |
| 2020 | Chevrolet | Silverado 1500 | RWD | 3.0L | L6 | Catalytic Converter | — |
| 2020 | GMC | Sierra 1500 | RWD | 3.0L | L6 | Catalytic Converter | — |
