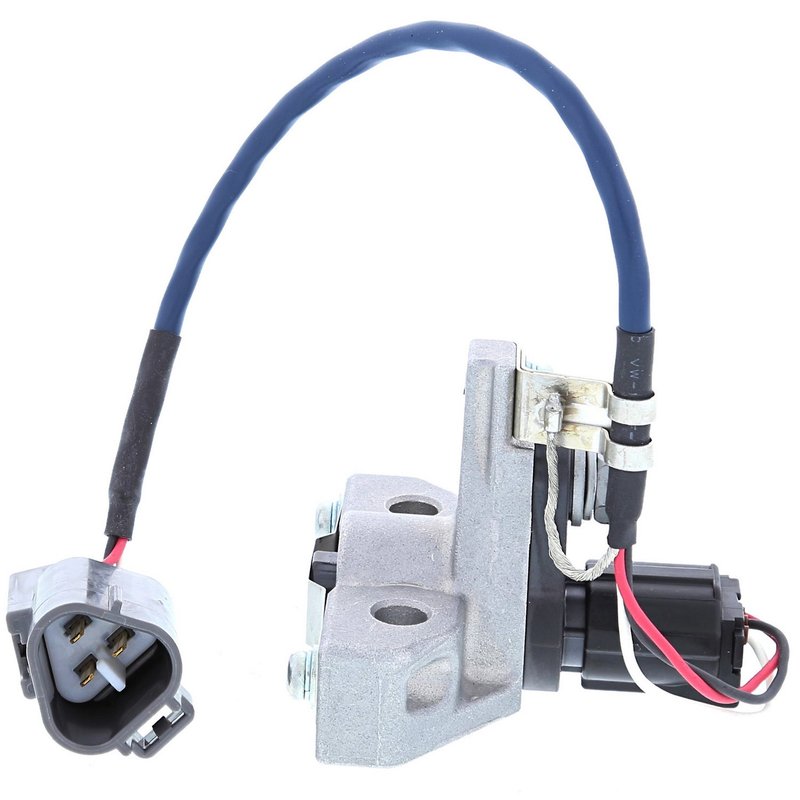

Denso 196-1004 Engine Camshaft Position Sensor

Denso Engine Camshaft Position Sensor 196-1004

Denso 196-1004 is an engine camshaft position sensor built for direct OE-style replacement on select Toyota and Lexus applications. It uses a 3-wire design with a female oval connector and included wiring harness to support accurate camshaft signal detection and precise ignition timing control.

Key Features

• Engine camshaft position sensor for ignition and engine management systems
• 3-wire configuration with 3 blade terminals
• Female oval connector with 1 connector interface
• Wiring harness included; harness length measures 10.00
• Regular grade replacement part for select timing cover locations
• Cross-references Standard Ignition PC654 for the same application

Product Details

Denso’s Engine Camshaft Position Sensor line is engineered to meet strict OE standards for signal accuracy, durability, and dependable operation. This sensor helps the engine control system identify camshaft position so ignition timing can be managed with the correct timing input. The Denso 196-1004 is listed for timing cover mounting locations on 2004-2009 Lexus GX470 and LX470, and Toyota 4Runner, Sequoia, Tundra, and Land Cruiser applications.

Compatible With 2005-2009 Lexus GX470, location-timing cover; 2006-2007 Lexus LX470, location-timing cover; 2005 Lexus LX470, location-timing cover, from 05/05; 2005-2009 Toyota 4Runner, location-timing cover; 2004-2005 Toyota Land Cruiser, location-timing cover; 2006-2007 Toyota Land Cruiser, location-timing cover; 2004-2009 Toyota Sequoia, location-timing cover; and 2004-2009 Toyota Tundra, location-timing cover.

Common Issues This Sensor Can Address

• Camshaft position signal loss or intermittent sensor output
• Hard starting caused by incorrect camshaft timing input
• Check engine light related to camshaft position sensor faults
• Rough idle or drivability concerns tied to timing signal errors
• Ignition timing control problems on timing cover-mounted applications

Installation Notes and Tips

Verify the connector shape, terminal count, and harness routing before installation. This sensor uses a female oval connector with blade terminals and an included wiring harness, and it mounts in the timing cover location on the listed Toyota and Lexus vehicles. Confirm the exact model year and engine application against the vehicle’s original sensor before replacement.

Quality Assurance

Denso manufactures this camshaft position sensor to OE-level standards with an emphasis on reliable signal detection and consistent durability. The design supports precise camshaft position input for engine control systems on the listed Lexus GX470, LX470, and Toyota 4Runner, Sequoia, Tundra, and Land Cruiser applications.
