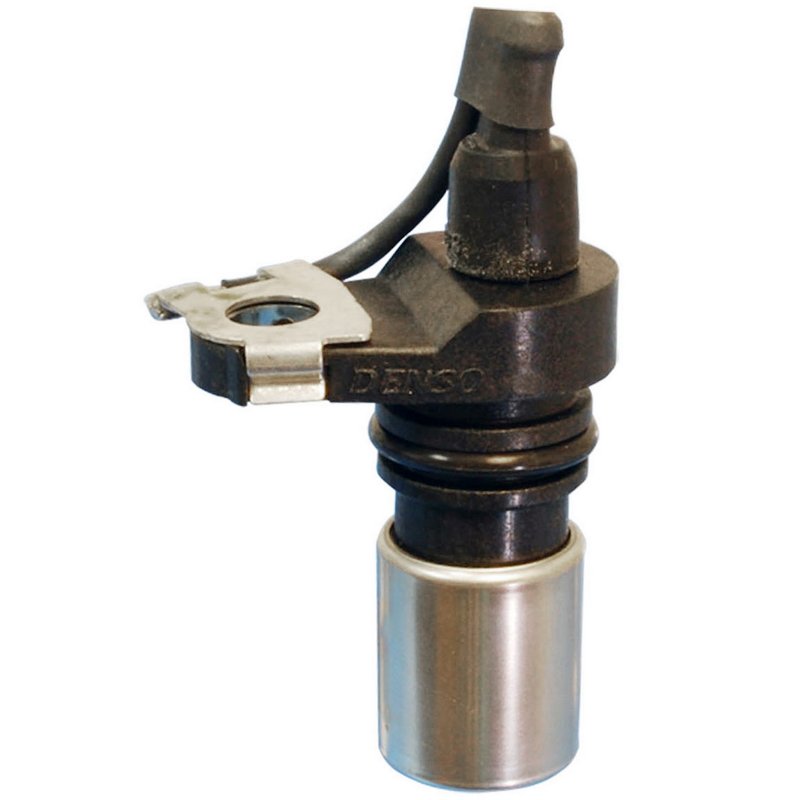

Denso 196-1104 Engine Crankshaft Position Sensor

Denso 196-1104 Engine Crankshaft Position Sensor

Denso 196-1104 is an engine crankshaft position sensor built for precise ignition timing control and reliable crankshaft signal detection. It is a direct-fit style replacement for a range of Toyota, Scion, and Lexus applications, including Toyota Camry, Corolla, RAV4, Highlander, Solara, Matrix, and Scion xB and tC.

Denso’s Engine Crankshaft Position Sensor line focuses on OE-level fit and signal accuracy. This sensor uses a female connector, blade terminals, a 3-wire harness, and an oval connector shape to match the original electrical interface on supported vehicles.

Key Features

• Part number: 196-1104
• Engine crankshaft position sensor for ignition timing input
• OE-style electrical connection with 1 female connector and 2 male blade terminals
• 3-wire design with included wiring harness
• 14.25 in. wiring harness length
• Oval connector shape with 1 mounting hole
• Direct replacement for many Toyota, Scion, and Lexus applications

Detailed Description

This Denso crankshaft position sensor monitors crankshaft position so the engine control system can manage ignition timing with the correct signal. Accurate crankshaft data is important for smooth starting, stable idle, and consistent engine operation. The 196-1104 is engineered to OE standards and is a strong match for drivers searching for a Toyota Camry crankshaft position sensor, Toyota Corolla crankshaft position sensor, or Scion xB crankshaft position sensor replacement.

This part cross-references Standard Ignition PC406 and Toyota 90919-05047 for the same application. It also matches OE-style service needs for vehicles such as the 2011-2012 Toyota Corolla, 2002-2011 Toyota Camry, 2001-2008 Toyota RAV4, 2001-2007 Toyota Highlander, 2002-2008 Toyota Solara, 2005-2010 Scion tC, 2011-2013 Scion xB, 2014-2015 Scion xB, 2009-2013 Toyota Matrix, and 2010-2012 Lexus HS250h.

What It Helps Address

• Crankshaft position signal loss or erratic signal output
• Hard starting or extended crank time
• Rough idle or unstable engine speed
• Ignition timing concerns related to sensor input
• Check engine light conditions tied to crankshaft position sensor faults

Installation Notes and Tips

Verify connector shape, terminal style, and harness length against the original sensor before installation. Inspect the mounting point and electrical connector for corrosion, bent terminals, or damaged wiring before connecting the new sensor. Confirm vehicle application by year, make, and model, since fitment varies across Toyota, Scion, and Lexus platforms.

Compatible With 2014-2015 Scion xB; 2011-2013 Scion xB; 2009-2013 Toyota Matrix; 2010-2012 Lexus HS250h; 2011-2012 Toyota Corolla; 2002-2011 Toyota Camry; 2005-2010 Scion tC; 2009-2010 Toyota Corolla; 2001-2008 Toyota RAV4; 2002-2008 Toyota Solara; 2001-2007 Toyota Highlander.

Quality Assurance

Denso manufactures this crankshaft position sensor to strict OE standards with a focus on durability and detection accuracy. The design uses sensing technology intended to support precise ignition timing control in the vehicles listed above.
