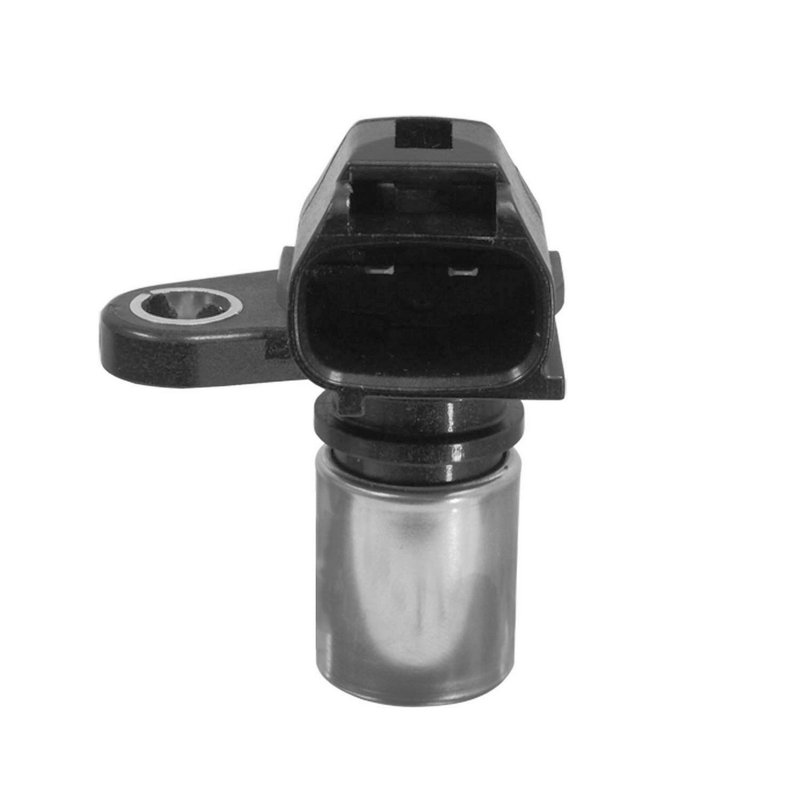

Denso 196-1109 Engine Crankshaft Position Sensor

Denso Crankshaft Position Sensor for Toyota

The Denso 196-1109 engine crankshaft position sensor is built to OE standards for reliable signal detection and precise ignition timing control. It is a direct-fit sensor for select Toyota applications, including Tacoma, Tundra, 4Runner, and T100 models.

Use this crankshaft position sensor when you need accurate crankshaft signal input for engine management on Toyota Tacoma and Toyota Tundra applications. Part number 196-1109 is engineered for dependable operation in vehicles that rely on consistent timing data for smooth running and starting.

Key Features

• Engine crankshaft position sensor for ignition and engine timing input
• OE-standard construction for reliable detection accuracy
• Leading-edge sensing technology for precise ignition timing control
• 1 oval female connector with 2 male terminals
• Blade terminal type
• 1 mounting hole for direct installation
• No wiring harness included
• No mounting bracket included

Detailed Description

Denso 196-1109 is an engine crankshaft position sensor designed to monitor crankshaft position and send the signal needed for ignition timing and engine control. The sensor uses an oval connector with a female connector gender, blade terminals, and a single mounting hole for a straightforward OE-style replacement. For Toyota Tacoma, Toyota Tundra, Toyota 4Runner, and Toyota T100 vehicles, this sensor supports accurate crankshaft signal detection where timing precision matters.

This part cross-references Toyota 90919-05020 for the same application. The Denso 196-1109 is also listed against ACDelco 213-2564 and Standard Ignition PC86.

What It Helps Solve

• Hard starting caused by an inconsistent crankshaft signal
• Rough idle related to incorrect ignition timing input
• Stalling from intermittent crankshaft position data
• Misfire conditions tied to poor engine timing reference
• Check engine light concerns associated with crankshaft sensor faults

Installation Notes and Tips

Verify connector shape, terminal count, and mounting style before installation. This sensor uses a single mounting hole, an oval connector, and no included harness or bracket, so the existing vehicle connector and mounting point must match the OE layout. Confirm the application by year and model before ordering, especially for Toyota Tacoma, Toyota Tundra, Toyota 4Runner, and Toyota T100 coverage.

• Fits 1995-2004 Toyota Tacoma
• Fits 2000-2004 Toyota Tundra
• Fits 1996-2002 Toyota 4Runner
• Fits 1995-1998 Toyota T100

Quality Assurance

Denso manufactures this crankshaft position sensor to strict OE standards for durability and detection accuracy. The design focuses on stable signal output and consistent engine timing control for the listed Toyota applications.
