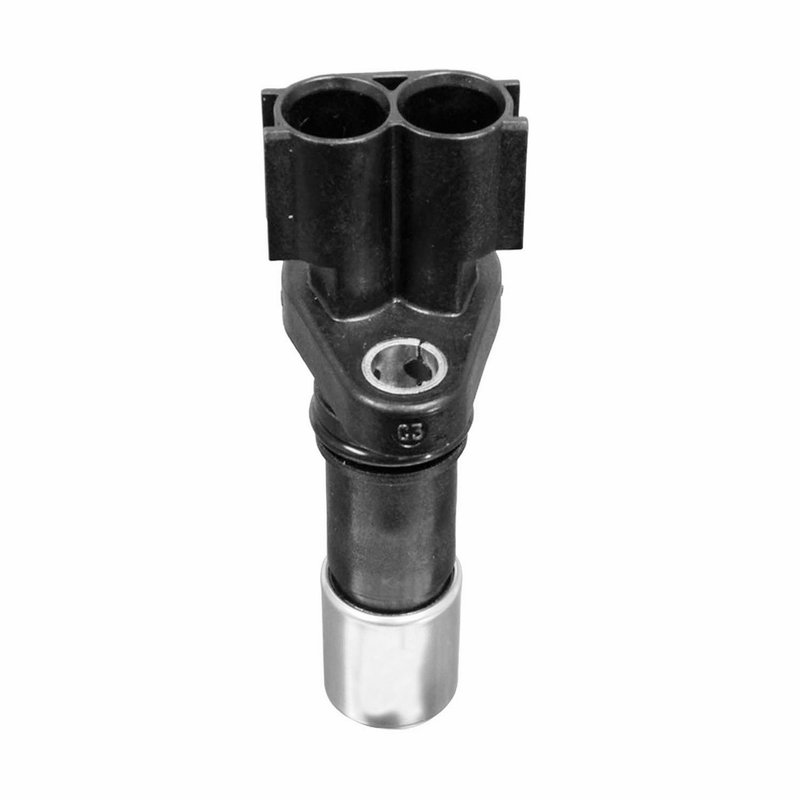

Denso 196-1117 Engine Crankshaft Position Sensor

Reliable Engine Crankshaft Position Sensor for Toyota and Lexus Vehicles

The Denso Engine Crankshaft Position Sensor 196-1117 is designed to provide accurate engine timing data for a range of Toyota, Lexus, and Scion models. This sensor ensures precise crankshaft position monitoring, which is critical for optimal engine performance and fuel efficiency.

• Terminal Type: Blade terminals for secure electrical connection
• Single oval-shaped female connector for easy installation
• One mounting hole for stable sensor placement
• Two male terminals for reliable signal transmission
• Compatible with multiple Toyota, Lexus, and Scion models including Camry, Corolla, Prius, and Highlander
• Wiring harness and mounting bracket not included

About the Denso Engine Crankshaft Position Sensor Line

The Engine Crankshaft Position Sensor line by Denso focuses on delivering precise engine speed and position data to the vehicle’s engine control unit (ECU). This sensor line is engineered to meet OEM specifications, ensuring compatibility and performance across various ignition systems. The 196-1117 part number is part of this line, providing reliable crankshaft position detection for efficient engine management.

Detailed Product Description

The Denso 196-1117 Engine Crankshaft Position Sensor features a blade terminal type with two male terminals, designed to connect securely to the vehicle’s wiring harness via a single oval-shaped female connector. It includes one mounting hole to ensure proper and stable installation on the engine block. This sensor is compatible with a wide range of Toyota, Lexus, and Scion vehicles such as the Avalon, C-HR, Camry, Corolla, Prius variants, RAV4, and more. The sensor does not come with a wiring harness or mounting bracket, so these components must be sourced separately if needed.

Common Applications and Issues Addressed

• Helps resolve engine misfires caused by inaccurate crankshaft position data
• Prevents stalling and rough idling by maintaining proper ignition timing
• Eliminates check engine light triggers related to crankshaft sensor faults
• Improves fuel efficiency by providing precise engine speed information
• Supports smooth engine start-up and acceleration performance

Installation Notes and Tips

When installing the Denso 196-1117 sensor, ensure the mounting hole aligns correctly with the engine block for secure attachment. Verify the oval-shaped female connector fits snugly with the sensor’s blade terminals to avoid electrical issues. Since the wiring harness and mounting bracket are not included, confirm compatibility with existing vehicle components before installation. It is recommended to disconnect the battery before replacing the sensor to prevent electrical shorts.

Quality Assurance and Warranty

Denso Engine Crankshaft Position Sensors are manufactured to meet strict OEM standards, ensuring durability and reliable performance. While specific warranty details for part number 196-1117 may vary, Denso products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
