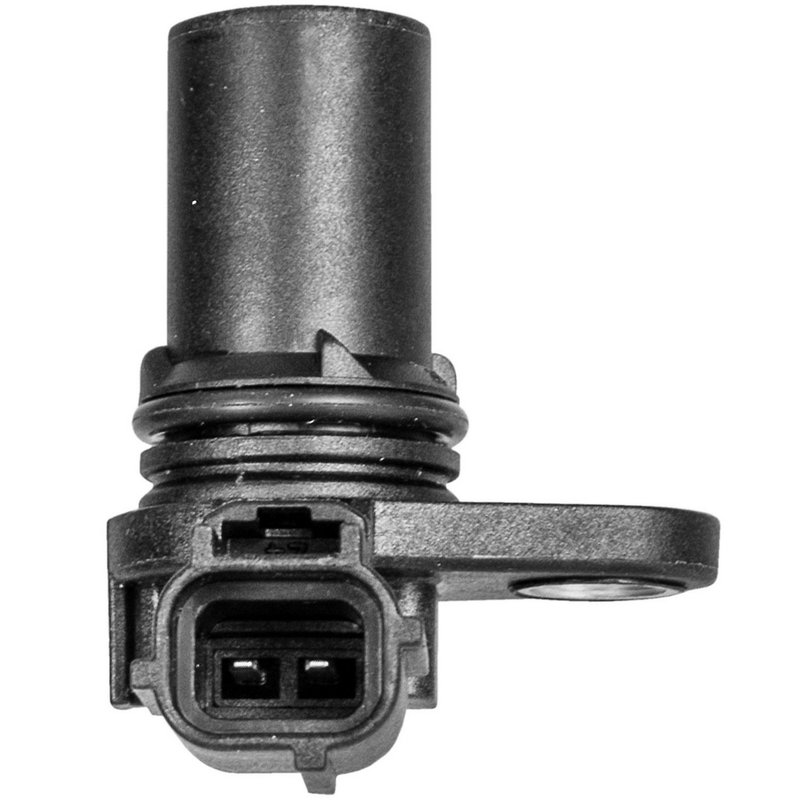

Denso 196-6020 Engine Camshaft Position Sensor
| Brand | Denso 196-6020 |
|---|---|
| Terminal Type | Blade |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Wiring Harness Included | No |
| Mounting Bracket Included | No |
| Fits | Ford and Mercury · 24 vehicles |
OE-standard quality. Built for reliable, durable sensing and precise ignition timing control.
Precision sensing technology. Helps detect camshaft position accurately for consistent engine control.
Blade terminal, oval connector, female 2-terminal design.
Cross-references ACDelco 213-2512, Airtex 5S12868 and BWD CSS1588 for the same application. See all 10.
Denso Camshaft Position Sensor 196-6020
Denso 196-6020 is an engine camshaft position sensor built to OE-level standards for reliable signal detection and precise ignition timing control. It is a direct-fit style replacement for select Ford and Mercury vehicles, including Ford Ranger, Escape, and Focus applications.
Key Features
- Engine camshaft position sensor for ignition and engine management systems
- Blade terminal type with 2 terminals
- Female oval connector with 1 connector
- Regular grade construction for everyday service use
- No wiring harness included
- No mounting bracket included
- OE-style sensing technology for accurate camshaft signal input
Product Details
This Denso camshaft position sensor, part number 196-6020, is engineered to deliver consistent camshaft position feedback to the engine control system. Accurate signal detection helps the ECU manage ignition timing and engine synchronization more precisely. It cross-references Ford 1S7Z-6B288-AA for the same application.
Compatible With 2001-2011 Ford Ranger, N/A; 2005-2008 Ford Escape, N/A; 2005-2008 Mercury Mariner, N/A; and 2003-2007 Ford Focus, N/A. This part number 196-6020 is a practical OE-style replacement for Ford Ranger, Ford Escape, and Ford Focus camshaft position sensor service needs.
Common Problems This Sensor Can Help Address
- Intermittent camshaft position signal loss
- Hard starting or extended crank conditions related to sensor input
- Rough idle caused by inaccurate camshaft timing data
- Check engine light concerns tied to camshaft position sensor faults
- Ignition timing irregularities from a failing sensor
Installation Notes
Verify connector shape, terminal count, and mounting location before installation. This sensor uses a female oval connector with blade terminals, and it does not include a wiring harness or mounting bracket. Confirm the vehicle’s original sensor style and clear diagnostic trouble codes after installation if required by the repair procedure.
Quality Assurance
Denso manufactures this camshaft position sensor to strict OE standards with a focus on reliability, durability, and accurate detection. The design supports precise engine signal control for select Ford and Mercury applications, including Ranger, Escape, Mariner, and Focus models.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2011 | Ford | Ranger | — |
| 2010 | Ford | Ranger | — |
| 2009 | Ford | Ranger | — |
| 2008 | Ford | Escape | — |
| 2008 | Ford | Ranger | — |
| 2008 | Mercury | Mariner | — |
| 2007 | Ford | Escape | — |
| 2007 | Ford | Focus | — |
| 2007 | Ford | Ranger | — |
| 2007 | Mercury | Mariner | — |
| 2006 | Ford | Escape | — |
| 2006 | Ford | Focus | — |
| 2006 | Ford | Ranger | — |
| 2006 | Mercury | Mariner | — |
| 2005 | Ford | Escape | — |
| 2005 | Ford | Focus | — |
| 2005 | Ford | Ranger | — |
| 2005 | Mercury | Mariner | — |
| 2004 | Ford | Focus | — |
| 2004 | Ford | Ranger | — |
| 2003 | Ford | Focus | — |
| 2003 | Ford | Ranger | — |
| 2002 | Ford | Ranger | — |
| 2001 | Ford | Ranger | — |
