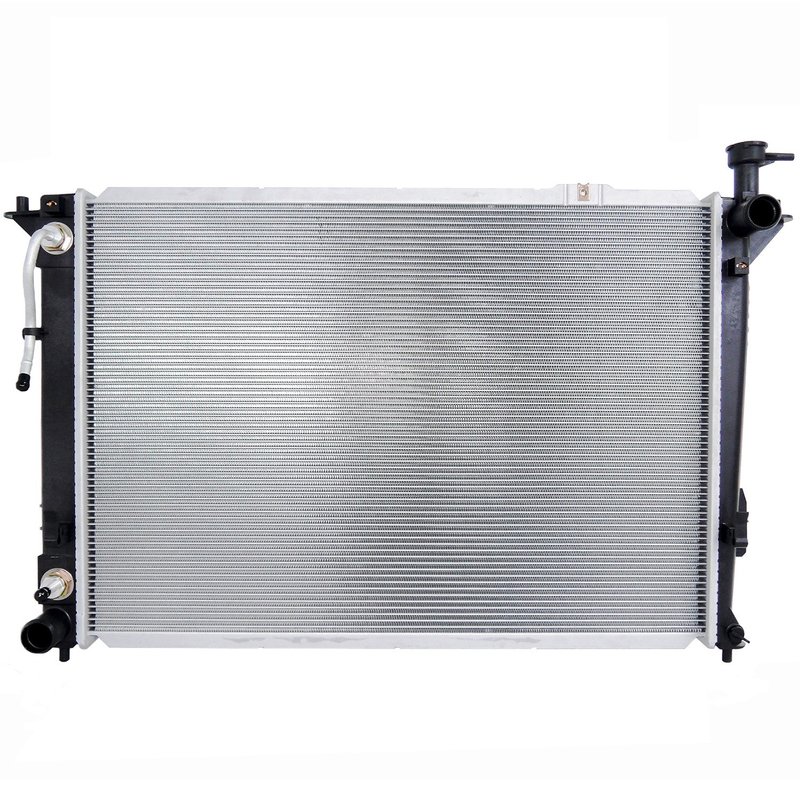

Denso 221-9049 Radiator

Denso Radiator for OE-Style Cooling

The Denso 221-9049 radiator is built for direct-fit engine cooling performance in select Hyundai and Kia applications. It combines OE-style dimensions, tank design, and materials to support stable coolant flow and dependable heat transfer in daily driving and demanding conditions.

Compatible With 2010-2012 Hyundai Santa Fe and 2011-2013 Kia Sorento, this radiator is a practical replacement when the original unit shows signs of wear, leakage, or reduced cooling efficiency. The Denso radiator line is backed by OE supplier experience, and part number 221-9049 follows the same fitment-focused approach.

Key Features

• Core height: 24.0160
• Core width: 35.8270
• Core thickness: 0.5510
• Inlet diameter: 1.3780
• Outlet diameter: 1.3780
• Transmission oil cooler included: Yes
• OE-matched radiator configuration for fitment accuracy
• Built to meet strict durability and function testing standards

Product Details

Denso radiator 221-9049 is engineered around OE specifications for core dimensions, fin pitch, tank design, and material selection. That attention to detail helps maintain proper engine temperature control and supports consistent cooling system operation in the Hyundai Santa Fe and Kia Sorento platforms listed above. This part cross-references Spectra Premium CU13194 for the same application.

Common Cooling System Issues It Can Address

• Coolant leakage from a damaged or aging radiator
• Overheating caused by restricted heat dissipation
• Transmission cooling concerns when the integrated cooler is part of the original setup
• Reduced cooling efficiency from internal corrosion or clogged passages
• Fitment problems from using a radiator that does not match OE dimensions

Installation Notes and Tips

Verify inlet and outlet diameter, core size, and transmission cooler routing before installation. Flush the cooling system, inspect hoses and clamps, and confirm the fan assembly and shrouding are in good condition. For best results, refill with the correct coolant type and bleed air from the system according to the vehicle service procedure.

Quality Assurance

Denso supplies radiators to OE vehicle manufacturers and subjects each radiator to durability and function testing. The 221-9049 is built to the same OE-focused standards for fitment, reliability, and cooling performance.
