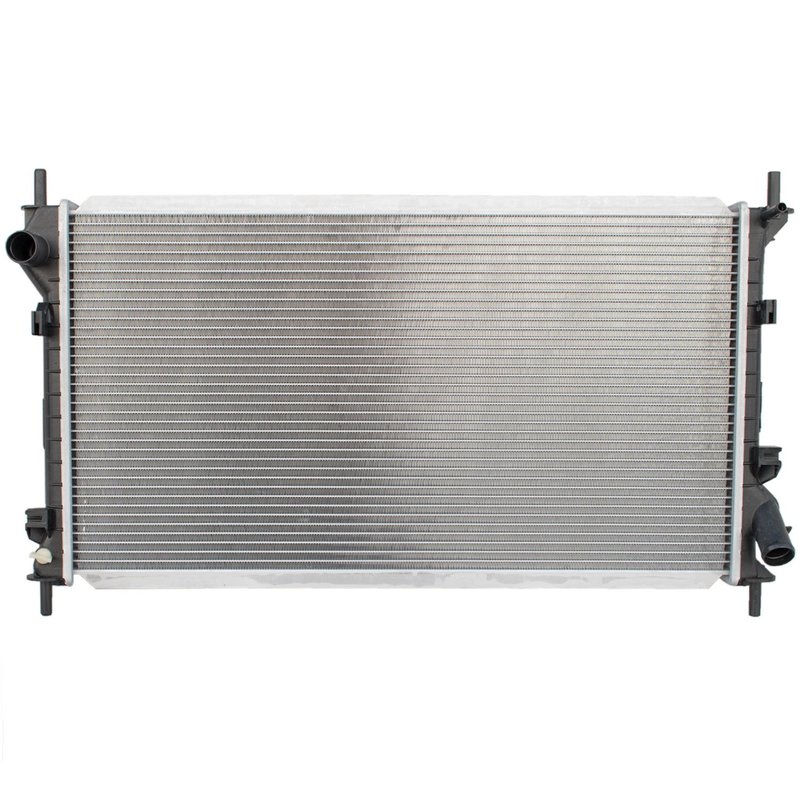

Denso 221-9125 Radiator

Overview of the Denso Radiator for Ford Transit Connect

The Denso 221-9125 radiator is designed specifically for the Ford Transit Connect, providing reliable cooling performance. Engineered with precise core dimensions, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Height: 27.7165 inches
• Core Width: 14.8819 inches
• Core Thickness: 1.0236 inches
• Inlet Diameter: 1.3071 inches
• Outlet Diameter: 1.3071 inches
• Transmission Oil Cooler: Not included

Detailed Radiator Specifications and Design

This Denso radiator (part number 221-9125) features a core designed to fit the cooling requirements of the Ford Transit Connect. The core dimensions—27.7165 inches in height, 14.8819 inches in width, and 1.0236 inches in thickness—ensure adequate surface area for heat exchange. Both the inlet and outlet diameters measure 1.3071 inches, matching the vehicle’s factory hose connections for straightforward installation. Note that this radiator does not include a transmission oil cooler, making it suitable for Transit Connect models without integrated transmission cooling.

Compatible Vehicles and Applications

This radiator is compatible with Ford Transit Connect models requiring a direct replacement radiator with the specified core dimensions and hose diameters. It is intended for use in maintaining engine cooling efficiency and preventing overheating issues common in aging or damaged radiators.

• Overheating due to radiator core damage or clogging
• Coolant leaks from cracked or corroded radiator tanks
• Reduced cooling performance from bent or clogged fins
• Incompatible radiator size causing poor fit or leaks
• Failure of original radiator leading to engine temperature fluctuations

Installation Notes and Tips

When installing the Denso 221-9125 radiator on a Ford Transit Connect, ensure all hose connections match the 1.3071-inch inlet and outlet diameters. Inspect and replace any worn hoses or clamps to prevent leaks. Properly bleed the cooling system after installation to remove air pockets and verify coolant flow. It is recommended to check for any transmission oil cooler lines if applicable, as this radiator does not include that feature.

Quality Assurance and Warranty Information

Denso radiators are manufactured to meet OEM specifications, ensuring durability and reliable performance. The 221-9125 radiator undergoes rigorous quality control to maintain consistent core dimensions and material integrity. Warranty coverage details should be confirmed with the point of purchase, but Denso typically offers limited warranties covering defects in materials and workmanship.
