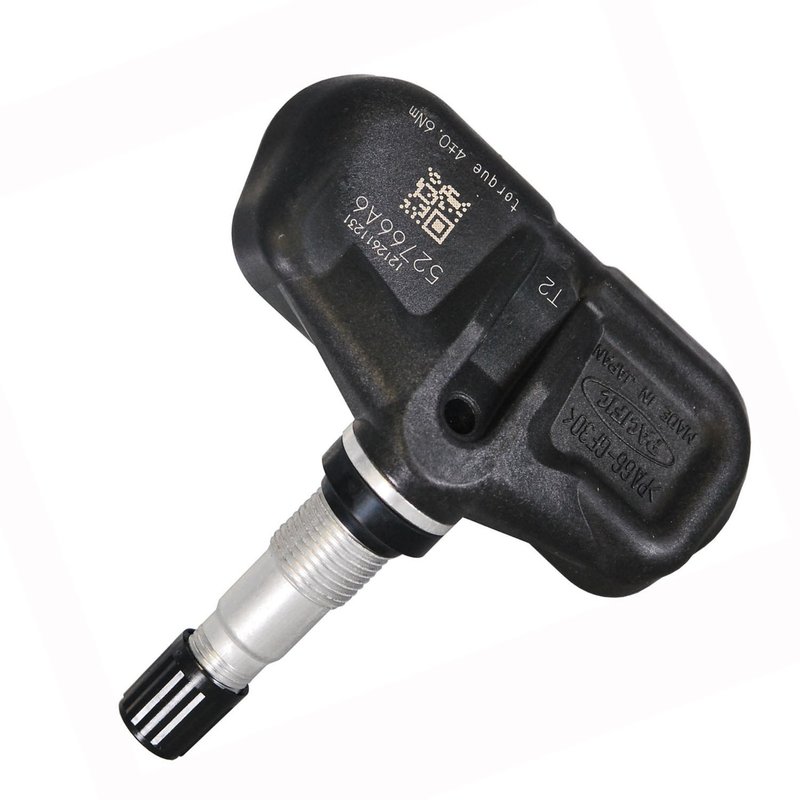

Denso 550-0102 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Denso 550-0102 |
|---|---|
| Power Source | Electric |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Clamp in |
| Mounting Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Product line | OE Manufactured |
| Fits | Toyota · 9 vehicles |
OE Manufactured. Built for vehicle-specific TPMS system communication and factory-style operation.
Direct monitoring. Transmits tire pressure data in real time for supported applications.
Clamp-in design. Includes a gasket or seal for secure wheel installation.
Cross-references Toyota 426070C010 for the same application. See all 1.
OE Manufactured TPMS Sensor
Denso 550-0102 is an OE Manufactured tire pressure monitoring system sensor built for direct communication with the vehicle’s TPMS system. It is a clamp-in, direct-monitor sensor that transmits pressure data in real time for supported Toyota applications.
Key Features
- Direct TPMS sensor with real-time pressure signal transmission
- Clamp-in mounting method for serviceable wheel installation
- Includes gasket or seal for proper sensor sealing
- Supports vehicle functions such as fill assist and auto locate
- Preserves diagnostic trouble codes during system operation
Detailed Fitment Information
Compatible with Toyota applications that require Denso 550-0102. Fits 2004-2007 Toyota Sequoia, N/A; Fits 2006 Toyota Tacoma, N/A; Fits 2004-2006 Toyota Tundra, N/A; Fits 2005 Toyota Tacoma, N/A. This part cross-references Toyota 426070C010 for the same application.
As an OE Manufactured Denso TPMS sensor, this unit is built to work with vehicle-specific TPMS programming and system logic. Denso 550-0102 is intended for direct pressure monitoring on supported Toyota trucks and SUVs, including Toyota Sequoia, Toyota Tacoma, and Toyota Tundra applications listed above.
Common Issues This Part Can Address
- TPMS warning light caused by a failed sensor
- Inaccurate or missing tire pressure readings
- Loss of TPMS communication after sensor failure
- System faults related to preserved diagnostic trouble codes
- Service issues on clamp-in TPMS sensor applications
Installation Notes and Tips
Vehicle-specific relearn procedures may be required after installation, and some applications may need a trusted repair shop to complete the relearn process. Confirm the 315 MHz specification, clamp-in design, and wheel type before installation. Follow the manufacturer’s torque specification listed in the fitment notes.
Quality Assurance
Denso designs these TPMS sensors for specific make-and-model applications and for preserving factory system functions. The OE Manufactured line reflects Denso’s focus on original-equipment-style fitment and system behavior.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2007 | Toyota | Sequoia | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2006 | Toyota | Sequoia | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2006 | Toyota | Tacoma | Steel Wheel, To 7/2006, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2006 | Toyota | Tundra | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2005 | Toyota | Sequoia | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2005 | Toyota | Tacoma | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2005 | Toyota | Tundra | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2004 | Toyota | Sequoia | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2004 | Toyota | Tundra | Steel Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
