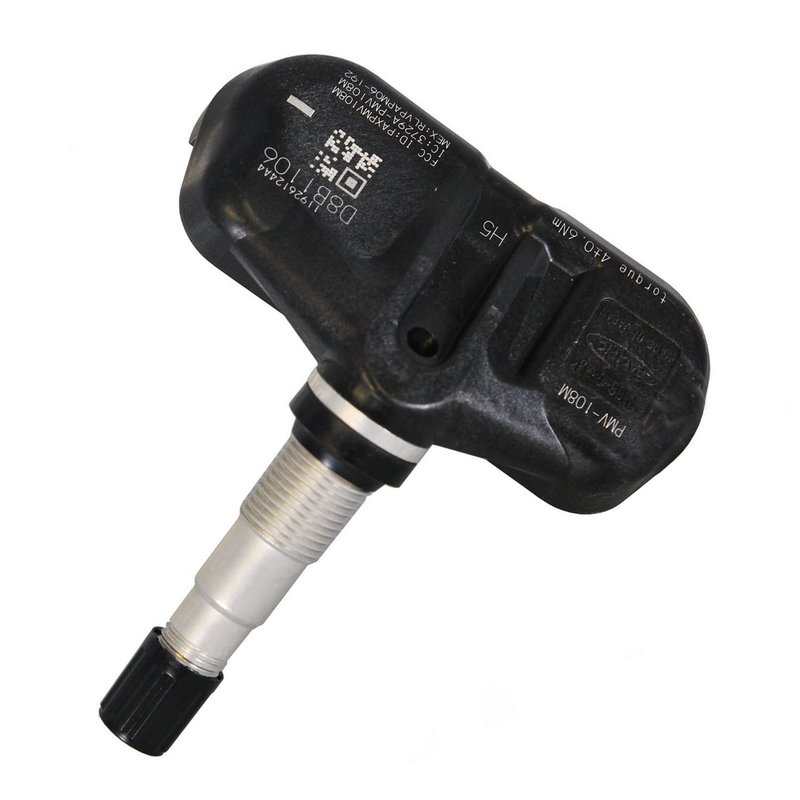

Denso 550-0205 Tire Pressure Monitoring System Sensor

Denso TPMS Sensor for Honda CR-V

Denso 550-0205 is an OE Manufactured tire pressure monitoring system sensor built for direct-fit service on select Honda applications. It is designed for 315 MHz systems and preserves vehicle functions such as fill assist, auto locate, and diagnostic trouble codes.

Fits 2007-2012 Honda CR-V, N/A, steel wheel, 315 MHz, clamp in, 35 in-lbs, 4 N.m; OE Manufactured.

Key Features

• Direct TPMS sensor with real-time pressure signal transmission
• Clamp-in mounting method for supported Honda wheel applications
• Electric power source with direct monitoring type
• Includes mounting hardware, gasket, and seal
• Built to work with vehicle-specific TPMS relearn procedures
• Supports systems that cannot be reverse engineered, including high-line and analog setups

Detailed Description

The Denso 550-0205 TPMS sensor is engineered for the 2007-2012 Honda CR-V and other listed Honda OE applications. As part of Denso’s OE Manufactured line, this sensor is made to match the vehicle’s original TPMS architecture so the system can continue to report tire pressure data accurately while maintaining factory functions. This part cross-references Honda 42753SWA305 and 42753SWA315 for the same application.

Use Denso 550-0205 when replacing a failed TPMS sensor on a Honda CR-V with a 315 MHz clamp-in setup. The sensor is intended for direct pressure monitoring and is suitable for vehicles that rely on factory relearn procedures after installation. Denso 550-0205 is a practical choice for Honda CR-V TPMS service where preserving OE system behavior matters.

Common Problems This Part Can Address

• TPMS warning light stays illuminated after a sensor failure
• Inaccurate or missing tire pressure readings
• Loss of factory TPMS functions after sensor replacement
• Fault codes related to a damaged or unresponsive sensor
• Service issues on 315 MHz Honda CR-V TPMS systems

Installation Notes and Tips

Fits 2007-2012 Honda CR-V, N/A, with steel wheel, 315 MHz, clamp-in configuration. Follow the vehicle manufacturer’s relearn procedure after installation, as some systems require a scan tool or shop-level reset to complete setup. Verify wheel type, frequency, and torque specification before service.

Quality Assurance

Denso’s OE Manufactured product line is built for vehicle-specific TPMS service and is designed to preserve original system functions, including diagnostic trouble code retention and factory feature operation.
