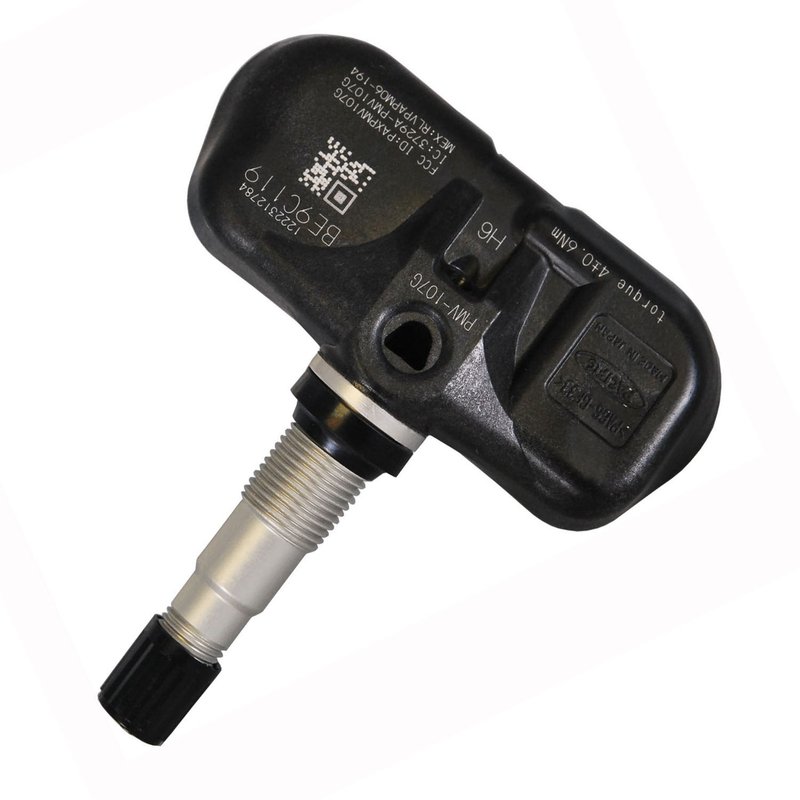

Denso 550-0206 Tire Pressure Monitoring System Sensor
| Brand | Denso 550-0206 |
|---|---|
| Gasket Or Seal Included | YES |
| Monitor Type | Direct |
| Mounting Hardware Included | YES |
| Mounting Method | Clamp In |
| Power Source | Electric |
| Real Time Pressure Signal Transmission | YES |
| Product line | OE Manufactured |
| Fits | Honda and Acura · 21 vehicles |
OE manufactured. Direct-fit TPMS sensor for dependable system integration.
Clamp-in design. Includes mounting hardware and a gasket or seal.
Real-time monitoring. Transmits direct pressure signals for accurate readings.
Cross-references Acura 42753STKA04, Honda 42753STKA02 and Honda 42753STKA03 for the same application. See all 4.
Denso TPMS Sensor for Honda and Acura
Denso 550-0206 is an OE Manufactured direct TPMS sensor built for vehicles that use a clamp-in tire pressure monitoring setup. It transmits real-time pressure data and is designed to preserve factory system functions, including fill assist, auto locate, and diagnostic trouble codes.
Compatible with select Honda Pilot, Acura MDX, Acura RDX, and Acura TSX applications, this Denso TPMS sensor supports the factory 315 MHz system used on listed vehicles. The Denso OE Manufactured line focuses on direct-fit sensor replacement for vehicles that rely on original equipment communication and relearn procedures.
Key Features
- Direct TPMS sensor with electric power source
- Real-time pressure signal transmission
- Clamp-in mounting design
- Mounting hardware included
- Gasket or seal included
- Supports factory system functions and diagnostic trouble codes
- Built for vehicles that cannot be reverse engineered, including high-line and analog systems
Detailed Description
Denso 550-0206 is an OE Manufactured tire pressure monitoring system sensor engineered for direct replacement in factory-equipped TPMS systems. It is designed for 315 MHz applications and uses a clamp-in installation style, making it a fit for listed Honda and Acura vehicles that require original-equipment communication behavior. This part cross-references Honda 42753STKA02 and Acura 42753STKA04 for the same application.
Fits 2009 Honda Pilot, N/A; Fits 2011-2015 Honda Pilot, N/A; Fits 2007-2013 Acura MDX, N/A; Fits 2007-2012 Acura RDX, N/A; Fits 2007-2008 Acura TSX, N/A. Common search terms for this part include Denso 550-0206 TPMS sensor, Honda Pilot TPMS sensor 315 MHz clamp-in, and Acura MDX direct tire pressure sensor replacement.
What It Helps Address
- TPMS warning light caused by a failed sensor
- Loss of tire pressure data on the instrument cluster
- Factory relearn issues after sensor replacement
- Communication problems in direct TPMS systems
- Service needs on Honda Pilot, Acura MDX, Acura RDX, and Acura TSX models with 315 MHz TPMS
Installation Notes and Tips
Verify the vehicle uses a direct, clamp-in 315 MHz TPMS sensor before ordering. After installation, the vehicle may require a manufacturer-specific relearn procedure to register the new sensor. For DIY service, a trusted repair shop or TPMS-capable scan tool may be needed to complete relearn and confirm proper system operation.
Quality Assurance
Denso OE Manufactured parts are built to match the communication and function requirements of the original TPMS system on the listed applications. This sensor is intended to preserve factory features and diagnostic behavior on supported Honda and Acura vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2014 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2013 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2013 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2012 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2012 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2012 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2011 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2011 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2011 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2010 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2010 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2009 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2009 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2009 | Honda | Pilot | N/A | Alloy Wheel, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured |
| 2008 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2008 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2008 | Acura | TSX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2007 | Acura | MDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2007 | Acura | RDX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
| 2007 | Acura | TSX | N/A | Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured |
