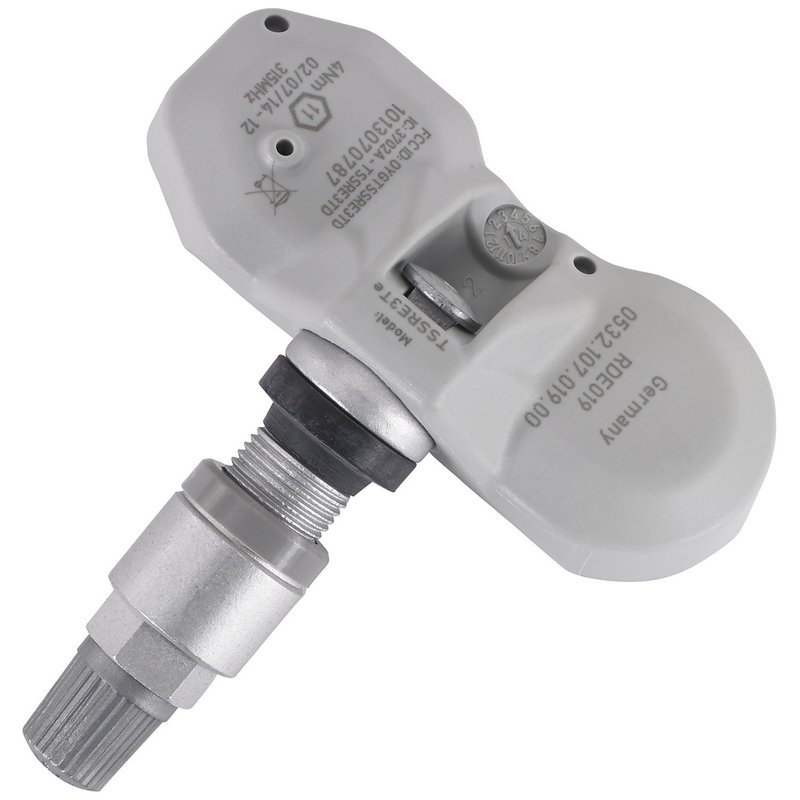

Denso 550-1019 Tire Pressure Monitoring System Sensor

OE Quality 60-Day Returns

OE Manufactured

Denso 550-1019 Tire Pressure Monitoring System Sensor

Brand	Denso 550-1019
Monitor Type	Direct
Mounting Hardware Included	YES
Mounting Method	Clamp In
Power Source	Electric
Real Time Pressure Signal Transmission	YES
Product line	OE Manufactured
Fits	Kia and Hyundai · 39 vehicles

OE manufactured. Direct TPMS sensor with clamp-in mounting.

Real-time monitoring. Transmits pressure signals as you drive.

Hardware included. Mounting hardware comes in the box.

Cross-references Hyundai 529332G000, Hyundai 529332G200 and Hyundai 529333L100 for the same application. See all 5.

$51.76Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Tire Pressure Monitoring System Sensor options

OE-Style TPMS Sensor for Select Hyundai and Kia Vehicles

Denso 550-1019 is a direct tire pressure monitoring system sensor built for select Hyundai and Kia applications. It uses an electric power source, transmits real-time pressure data, and mounts with a clamp-in design for vehicles that require a 315 MHz TPMS sensor.

As an OE Manufactured Denso part, this sensor is built to preserve factory system functions, including fill assist, auto locate, and diagnostic trouble codes. It is a direct-fit solution for drivers servicing Hyundai Azera, Hyundai Veracruz, Kia Sedona, Kia Optima, and other listed applications.

Key Features

Direct TPMS sensor with real-time pressure signal transmission
Clamp-in mounting method for 315 MHz applications
Electric power source
Mounting hardware included
Supports factory TPMS functions, including fill assist and auto locate
Designed to preserve diagnostic trouble codes
OE Manufactured Denso replacement, part number 550-1019

Product Details

Denso 550-1019 is engineered for vehicles that use a direct tire pressure monitoring system and a clamp-in sensor layout. It is listed for 2005-2012 Kia and Hyundai models, including 2006-2012 Hyundai Azera, 2008-2010 Kia Magentis, 2005-2010 Kia Optima, and 2009-2012 Hyundai Veracruz. This part number 550-1019 is also referenced for select Hyundai OE numbers used in related applications.

The OE Manufactured product line focuses on factory-style fit and system behavior, which matters when replacing a TPMS sensor on a Hyundai Elantra, Kia Rondo, or Kia Sedona. For vehicles that require relearn procedures, the sensor may need a shop-level reset or relearn after installation.

This part cross-references Hyundai OE numbers 529332G000 and 529332G200 for the same application.

What It Helps Address

TPMS warning light illuminated on the dash
Inaccurate or missing tire pressure readings
Sensor failure after battery or sensor service
Loss of factory TPMS functions after replacement
Diagnostic trouble codes related to tire pressure monitoring

Installation Notes and Tips

Verify the vehicle uses a 315 MHz, clamp-in TPMS sensor before installation. Torque the sensor to the vehicle specification noted in the fitment data, commonly 35 in-lbs or 4 N.m for listed applications. After installation, perform the manufacturer-recommended relearn procedure so the TPMS module recognizes the new sensor.

Fits 2006-2012 Hyundai Azera, N/A. Fits 2009-2012 Hyundai Veracruz, N/A. Fits 2007-2011 Kia Rondo, N/A. Fits 2005-2010 Kia Optima, N/A. Fits 2014-2015 Kia Sedona, N/A. Fits 2009-2012 Kia Sedona, N/A. Fits 2007-2010 Hyundai Elantra, N/A. Fits 2008-2010 Kia Magentis, N/A. Fits 2006 Kia Magentis, N/A. Fits 2009 Hyundai Santa Fe, N/A. Fits 2010 Hyundai Santa Fe, N/A. Fits 2008 Hyundai Veracruz, N/A.

Quality Assurance

Denso manufactures this TPMS sensor as an OE Manufactured replacement designed to match factory system requirements for the listed Hyundai and Kia applications. It is built to maintain original vehicle functions and diagnostic behavior after proper relearn.

This part fits 39 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2015	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2014	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2012	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2012	Hyundai	Veracruz	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2012	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2011	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2011	Hyundai	Veracruz	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2011	Kia	Rondo	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2011	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Hyundai	Elantra	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Hyundai	Santa Fe	N/A	To 10/2009, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured
2010	Hyundai	Veracruz	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Kia	Magentis	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Kia	Rondo	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2010	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Hyundai	Elantra	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Hyundai	Santa Fe	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Hyundai	Veracruz	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Kia	Magentis	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Kia	Rondo	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2009	Kia	Sedona	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2008	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2008	Hyundai	Elantra	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2008	Hyundai	Veracruz	N/A	Low Line Display, 315 MHz, Clamp In, 35 in-lbs, 4 N.m; OE Manufactured
2008	Kia	Magentis	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2008	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2008	Kia	Rondo	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2007	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2007	Hyundai	Elantra	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2007	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2007	Kia	Rondo	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2006	Hyundai	Azera	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2006	Kia	Magentis	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2006	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
2005	Kia	Optima	N/A	Clamp In TPMS Sensor with 315 MHz frequency and 35 in-lbs torque.; OE Manufactured
No rows match your filter.

Directly replaces or cross-references 5 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Hyundai — 529332G000Hyundai — 529332G200Hyundai — 529333L100Hyundai — 529334D700Hyundai — 529342L100
