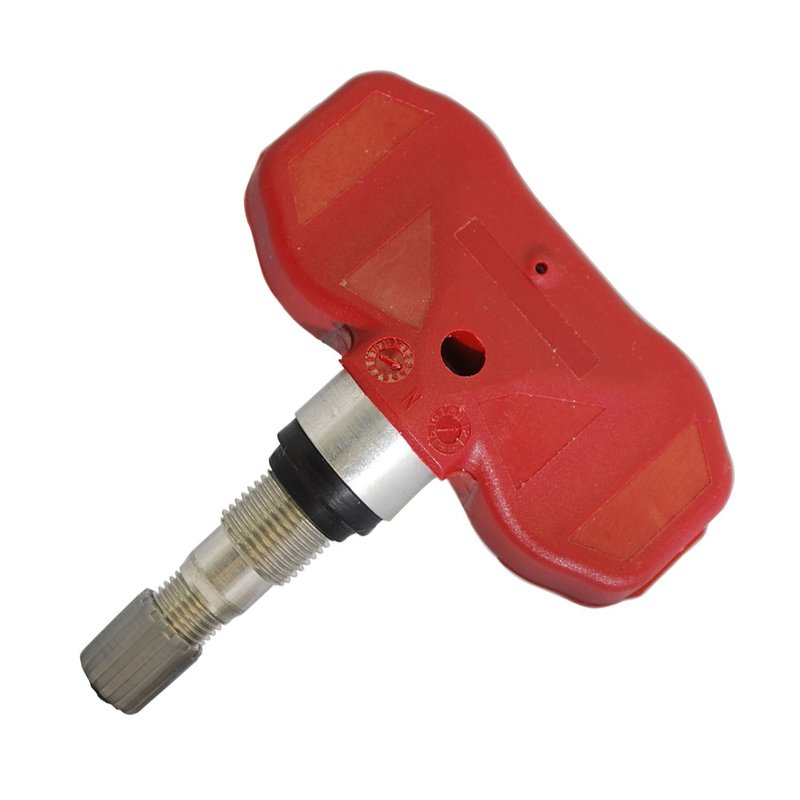

Denso 550-2406 Tire Pressure Monitoring System (TPMS) Sensor
OE Quality 60-Day Returns
Denso
 OE Manufactured

Denso 550-2406 Tire Pressure Monitoring System (TPMS) Sensor

Brand Denso 550-2406
Power Source Electric
Monitor Type Direct
Real Time Pressure Signal Transmission Yes
Mounting Method Clamp in
Mounting Hardware Included Yes
Gasket Or Seal Included Yes
Product line OE Manufactured
Fits Chevrolet, GMC, Hummer, Isuzu, and Pontiac · 24 vehicles

OE manufactured. Direct TPMS sensor for straightforward replacement.

Clamp-in design. Includes mounting hardware and a gasket or seal.

Real-time monitoring. Transmits direct pressure signals instantly.

Cross-references Chevrolet 15122618, GMC 15122618 and Hummer 15122618 for the same application. See all 6.

$42.51Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $42.51
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options

Denso OE Manufactured TPMS Sensor 550-2406

Denso 550-2406 is a direct tire pressure monitoring system sensor built for vehicles that use a clamp-in, 315 MHz TPMS setup. It sends real-time pressure data to the vehicle’s monitoring system and preserves factory functions such as fill assist, auto locate, and diagnostic trouble codes.

As an OE Manufactured Denso sensor, this part is built for specific vehicle applications and system behavior. For some vehicles, the TPMS relearn procedure must still be completed with the manufacturer’s required scan or relearn process.

Key Features

  • Direct TPMS sensor with electric power source
  • Real-time pressure signal transmission
  • Clamp-in mounting design
  • Mounting hardware included
  • Gasket or seal included
  • Supports OE system functions, including fill assist and auto locate
  • Preserves diagnostic trouble codes

Vehicle Fitment

  • Fits 2007-2012 Chevrolet Colorado, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2007-2012 GMC Canyon, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2006-2010 Hummer H3, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2009-2010 Hummer H3T, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2009 Pontiac Montana, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2007-2008 Isuzu i-290, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
  • Fits 2007-2008 Isuzu i-370, N/A; 315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured

This part cross-references Chevrolet 15122618 and GMC 15122618 for the same application.

What It Helps Resolve

  • TPMS warning light staying on after tire service
  • Inaccurate or missing tire pressure readings
  • Failed or damaged original sensor replacement needs
  • Loss of factory TPMS functions after sensor failure
  • Diagnostic trouble codes related to tire pressure monitoring

Installation Notes

Install this sensor in the correct wheel position and torque the clamp-in assembly to the vehicle specification listed in the fitment notes: 62 in-lbs (7 N.m.). After installation, complete the TPMS relearn procedure required by the vehicle manufacturer. Some applications may require a trusted repair shop or scan tool to finish the relearn process.

Quality Assurance

Denso OE Manufactured TPMS sensors are built to match the vehicle’s original monitoring system requirements and maintain factory-level TPMS behavior where specified by the application.

Related reading

This part fits 24 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2012ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2012GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2011ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2011GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2010ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2010GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2010HummerH3315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2010HummerH3T315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2009ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2009GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2009HummerH3315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2009HummerH3T315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2009PontiacMontana315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2008ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2008GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2008HummerH3315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2008Isuzui-290315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2008Isuzui-370315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2007ChevroletColorado315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2007GMCCanyon315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2007HummerH3315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2007Isuzui-290315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2007Isuzui-370315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
2006HummerH3315 MHz, Clamp In, 62 in-lbs, 7 N.m.; OE Manufactured
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Chevrolet — 15122618GMC — 15122618Hummer — 15122618Hummer — 20927604Isuzu — 15122618Isuzu — 8151226180
