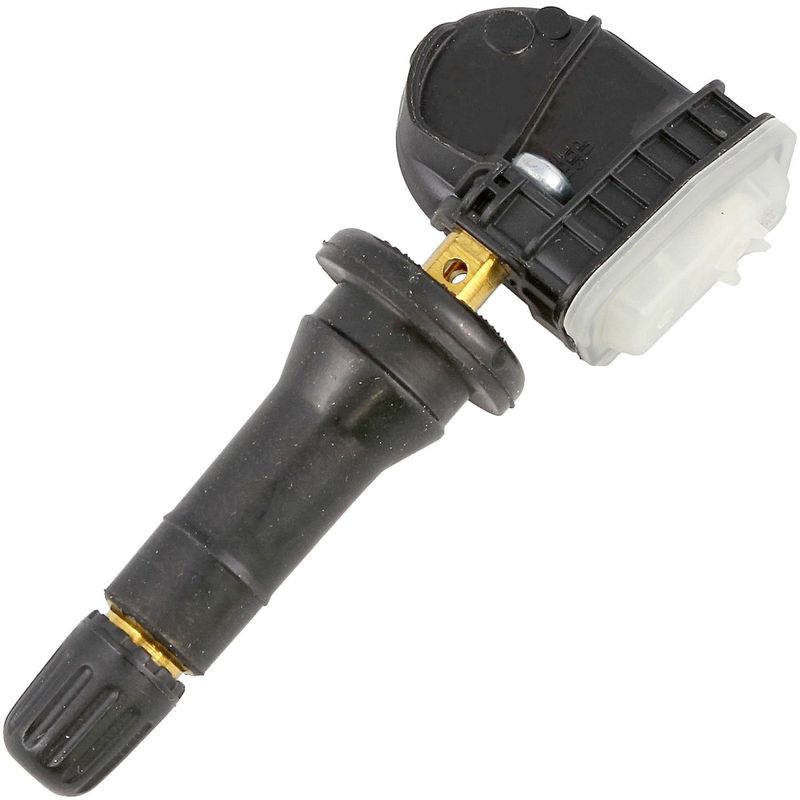

Denso 550-2413 Tire Pressure Monitoring System (TPMS) Sensor

Denso OE Manufactured TPMS Sensor

Denso 550-2413 is an OE manufactured tire pressure monitoring system sensor built for direct replacement service on a wide range of GM vehicles. It is designed to preserve vehicle functions such as fill assist, auto locate, and diagnostic trouble codes while supporting the relearn process required by the manufacturer.

This TPMS sensor is a strong match for drivers searching for a Denso TPMS sensor for Chevrolet Silverado 1500, GMC Sierra 1500, or Cadillac Escalade applications. The 550-2413 part number is also referenced in OE-style replacement searches for GM trucks, SUVs, and vans.

Key Features

• OE manufactured Denso TPMS sensor for direct-fit replacement service
• Supports vehicle-specific TPMS relearn procedures
• Preserves system functions including fill assist and auto locate
• Helps retain diagnostic trouble code capability
• Mounting hardware included
• Gasket or seal included

Product Details

Denso’s Tire Pressure Monitoring System Sensor line is engineered for vehicles that rely on factory TPMS communication and system logic. This sensor is made to work with the original TPMS architecture rather than forcing a generic workaround, which is important on high-line and analog systems that cannot be reverse engineered. For shoppers comparing OE replacement TPMS sensor options, Denso 550-2413 provides a factory-style solution for maintaining proper tire pressure monitoring performance.

Compatible With Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500, Chevrolet Silverado 1500, Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 1500, GMC Sierra 2500 HD, GMC Sierra 3500 HD, Cadillac Escalade, Cadillac CTS, Buick Enclave, and other listed GM applications across 2002-2024 model years.

This part cross-references Schrader TPMS Solutions 21507 for the same application.

What It Helps Address

• TPMS warning light caused by a failed sensor
• Loss of tire pressure readings at the dash
• System faults after wheel or tire service
• Relearn issues on factory TPMS-equipped vehicles
• Diagnostic trouble codes related to sensor communication

Installation Notes

Install the sensor during tire service or wheel replacement, then complete the relearn procedure specified by the vehicle manufacturer. Some applications may require a trusted repair shop or scan tool to finish the relearn process. Verify the vehicle year, make, model, and TPMS system requirements before installation.

Quality Assurance

Denso manufactures this TPMS sensor to OE specifications for the listed applications, with system-level compatibility in mind. It is built to maintain factory TPMS behavior on supported Chevrolet, GMC, Buick, Cadillac, Pontiac, Saturn, Hummer, and Suzuki models.
