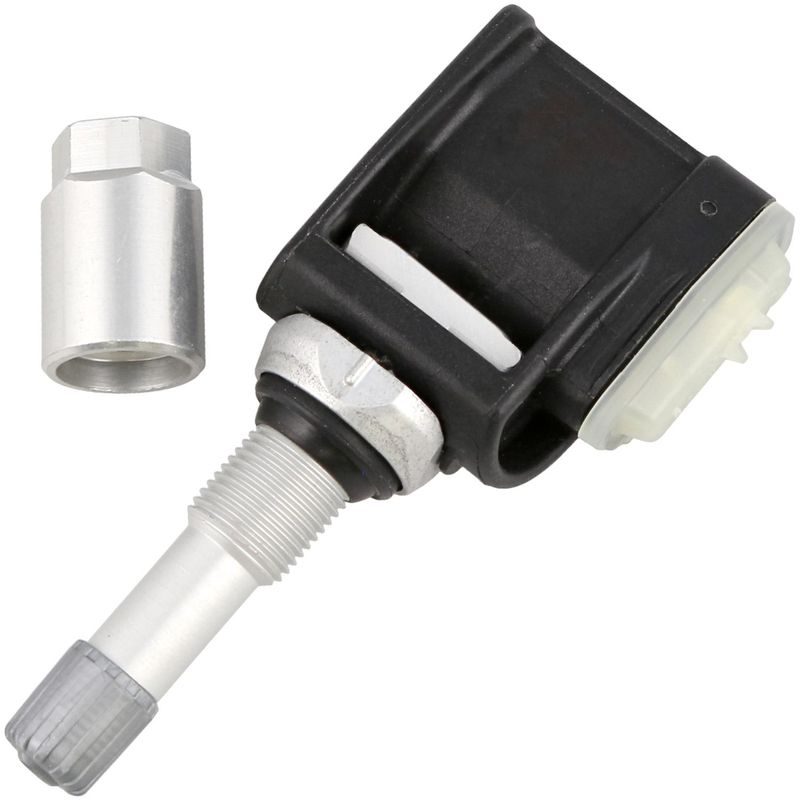

Denso 550-2415 Tire Pressure Monitoring System (TPMS) Sensor

Denso OE Manufactured TPMS Sensor

Denso 550-2415 is an OE manufactured tire pressure monitoring system sensor built for direct use with the vehicle’s factory TPMS setup. It is designed for specific applications, including the Chevrolet Camaro, Buick Cascada, Acura ILX, Cadillac ATS, and Cadillac CTS, with factory-style system communication and preserved vehicle functions.

The Denso TPMS sensor line is engineered for vehicles that rely on precise sensor communication, including systems that cannot be reverse engineered. For service work on the Denso 550-2415, a relearn procedure may be required after installation to register the sensor with the vehicle.

Key Features

• OE manufactured TPMS sensor for factory-style fit and function
• Supports vehicle TPMS communication without altering system functions
• Preserves diagnostic trouble codes during service
• Handles high-line and analog systems that cannot be reverse engineered
• Includes gasket or seal
• Includes mounting hardware

Detailed Product Information

This Denso tire pressure monitoring system sensor is built for drivers and technicians servicing OE-style TPMS applications. The 550-2415 is intended to maintain original vehicle functions such as fill assist and auto locate where equipped, while supporting accurate tire pressure data for the factory monitoring system. It is a practical replacement choice for Chevrolet Camaro TPMS sensor service, as well as Buick Cascada, Acura ILX, Cadillac ATS, and Cadillac CTS applications.

This part cross-references Gates 28211 for the same application.

What This Sensor Helps Address

• TPMS warning light triggered by a failed sensor
• Loss of tire pressure signal from one wheel position
• Sensor communication issues after wheel or tire service
• Diagnostic trouble codes related to TPMS faults
• Factory system functions that need to remain intact after replacement

Installation Notes and Tips

After installing the Denso 550-2415, the vehicle may require a TPMS relearn procedure to recognize the new sensor. Follow the manufacturer’s relearn method for the specific vehicle, and verify sensor registration before returning the vehicle to service. Confirm the correct application by year, make, and model before installation.

• Fits 2017-2020 Chevrolet Camaro, N/A
• Fits 2018-2019 Buick Cascada, N/A
• Fits 2018 Acura ILX, N/A
• Fits 2016 Cadillac ATS, N/A
• Fits 2016 Cadillac CTS, N/A

Quality Assurance

Denso manufactures this TPMS sensor as an OE-style replacement designed for factory system compatibility and preserved vehicle functions. The part number 550-2415 is built to support reliable TPMS service on the listed applications.
