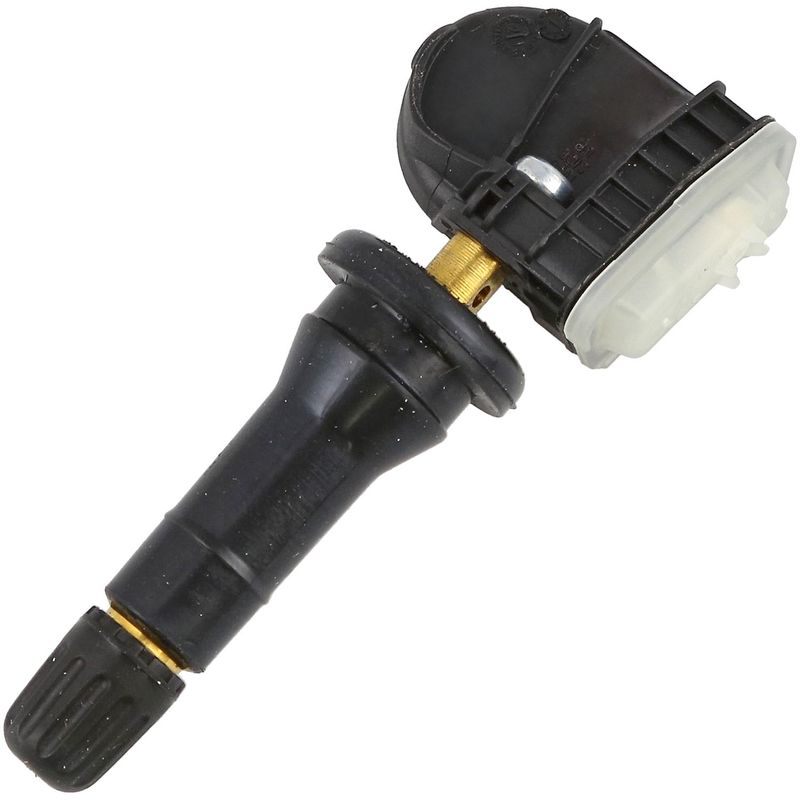

Denso 550-2603 Tire Pressure Monitoring System (TPMS) Sensor

Denso OE Manufactured TPMS Sensor

Denso 550-2603 is an OE manufactured tire pressure monitoring system sensor built for direct use in the vehicle’s factory TPMS setup. It is designed for Ford and Lincoln applications where accurate tire pressure reporting, system relearn, and preserved vehicle functions matter.

The Denso TPMS sensor line is built for vehicle-specific operation, including systems that cannot be reverse engineered. It helps maintain factory features such as fill assist and auto locate while preserving diagnostic trouble codes during service.

Key Features

• OE manufactured TPMS sensor for factory-style replacement
• Supports relearn procedures required by the vehicle manufacturer
• Preserves system functions, including fill assist and auto locate
• Helps retain diagnostic trouble codes during service
• Mounting hardware included
• Gasket or seal included

Vehicle Fitment

• Fits 2018-2021 Ford EcoSport, N/A
• Fits 2015-2021 Ford Edge, N/A
• Fits 2014-2021 Ford Mustang, N/A
• Fits 2021 Ford Mustang Mach-E, N/A
• Fits 2018-2021 Ford Transit Connect, N/A
• Fits 2019-2021 Lincoln Nautilus, N/A
• Fits 2016-2020 Ford Explorer, N/A
• Fits 2015-2020 Ford F-150, N/A
• Fits 2017-2020 Ford Fusion, N/A
• Fits 2017-2020 Lincoln Continental, N/A
• Fits 2017-2020 Lincoln MKZ, N/A
• Fits 2019-2020 Lincoln Navigator, N/A
• Fits 2018-2019 Lincoln MKC, N/A
• Fits 2015-2018 Lincoln MKX, N/A

What It Helps Solve

• TPMS warning light caused by a failed sensor
• Inaccurate tire pressure readings on Ford and Lincoln vehicles
• Loss of factory TPMS functions after sensor replacement
• Service issues after wheel or tire replacement
• Relearn problems on vehicles requiring manufacturer-specific procedures

Installation Notes

Installation should follow the vehicle manufacturer’s TPMS relearn procedure after sensor replacement. Some applications may require a trusted repair shop or scan tool to complete relearn and initialization correctly. Verify part number 550-2603 against the original sensor and vehicle application before installation.

This part cross-references Gates 20452 for the same application.

Quality Assurance

Denso manufactures this TPMS sensor to OE specifications for the listed Ford and Lincoln applications. The design supports factory system behavior and preserves diagnostic trouble codes during service.
