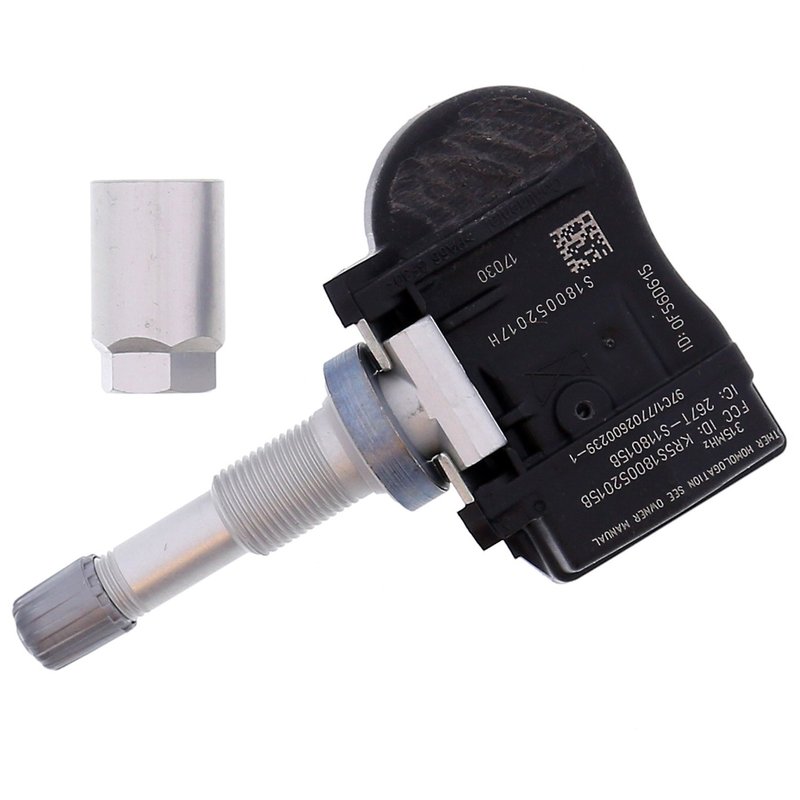

Denso 550-3001 Tire Pressure Monitoring System Sensor

Denso OE Manufactured TPMS Sensor 550-3001

Denso 550-3001 is a direct tire pressure monitoring system sensor built for vehicles that use a clamp-in TPMS design. It sends real-time pressure data to the vehicle’s monitoring system and is engineered to preserve factory functions such as fill assist, auto locate, and diagnostic trouble codes.

This OE Manufactured Denso TPMS sensor is a practical replacement for Hyundai and Kia models that require a 315 MHz clamp-in sensor. The 550-3001 is designed for direct monitoring systems and is suited for drivers replacing a failed sensor on vehicles such as Hyundai Sonata, Hyundai Elantra, Kia Optima, and Kia Soul.

Key Features

• Direct TPMS sensor with electric power source
• Real-time pressure signal transmission
• Clamp-in mounting style with gasket/seal included
• Mounting hardware included
• Designed to work with factory TPMS functions, including fill assist and auto locate
• Supports systems that cannot be reverse engineered, including high-line and analog applications

OE Manufactured Design

Denso’s OE Manufactured line focuses on replacement parts built to match original equipment system requirements. For TPMS service, that means the sensor is intended to communicate properly with the vehicle’s monitoring electronics while maintaining the functions the manufacturer built into the system. Part number 550-3001 is a direct-fit style sensor for select Hyundai and Kia applications that use a 315 MHz clamp-in setup.

This part cross-references Hyundai and Kia OE numbers, including 529331M000 and 529332L500, for the same application.

Vehicle Fitment

• Fits 2015 Hyundai Sonata, N/A; Low Line, 2013 model year package, ELECTRIC/GAS, 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2011-2014 Hyundai Accent, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2011-2014 Hyundai Sonata, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2011-2013 Hyundai Elantra, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2010-2013 Kia Forte, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2010-2013 Kia Forte Koup, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2012-2013 Kia Forte5, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2011-2013 Kia Optima, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2011-2013 Kia Sorento, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2009 Kia Sorento, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2010-2013 Kia Soul, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2010-2012 Hyundai Genesis Coupe, N/A; 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2009-2010 Hyundai Elantra, N/A; Touring, 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured

What It Helps Resolve

• TPMS warning light caused by a failed sensor
• Inaccurate or missing tire pressure readings
• Loss of factory TPMS communication after sensor failure
• Service issues on 315 MHz clamp-in Hyundai and Kia TPMS systems
• Diagnostic trouble codes related to tire pressure monitoring

Installation Notes

Verify the vehicle uses a 315 MHz direct TPMS sensor with clamp-in mounting before installation. Some Hyundai and Kia vehicles require a TPMS relearn procedure after sensor replacement, and that process may need to be completed with a scan tool or at a repair shop following the manufacturer’s sequence. Torque and sealing requirements should be followed exactly to avoid leaks or sensor damage.

Quality Assurance

Denso manufactures this sensor as an OE Manufactured replacement for factory-style TPMS service. It is built to preserve vehicle system functions and maintain diagnostic capability when installed on the correct application.
