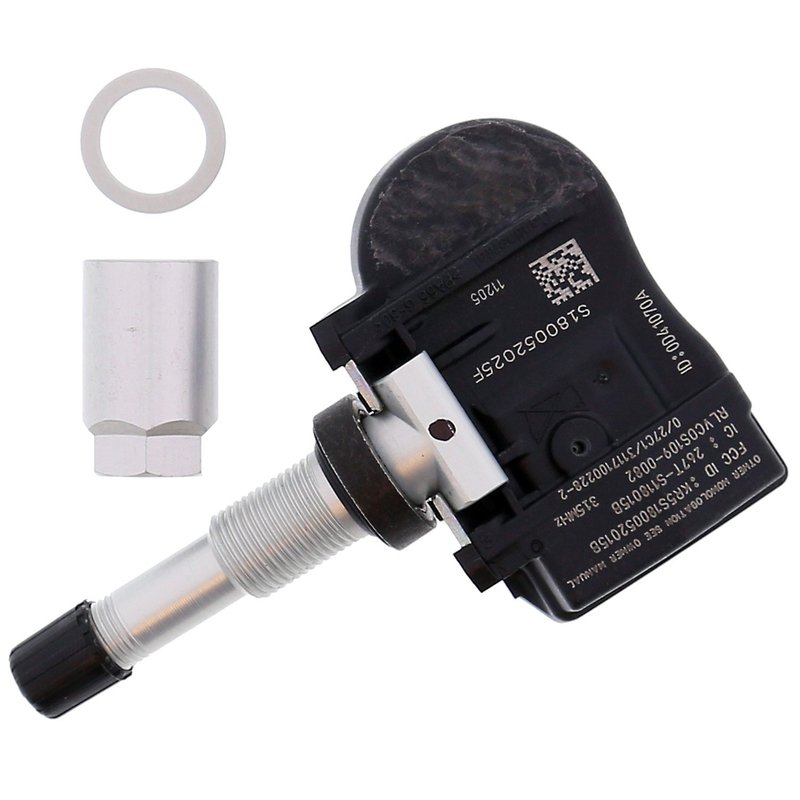

Denso 550-3004 Tire Pressure Monitoring System Sensor
| Brand | Denso 550-3004 |
|---|---|
| Gasket Or Seal Included | YES |
| Monitor Type | Direct |
| Mounting Hardware Included | YES |
| Mounting Method | Clamp In |
| Power Source | Electric |
| Real Time Pressure Signal Transmission | YES |
| Product line | OE Manufactured |
| Fits | Honda · 9 vehicles |
OE manufactured. Built for direct TPMS pressure monitoring.
Clamp-in design. Includes mounting hardware and a gasket or seal.
System functions preserved. Keeps diagnostic trouble codes and fill assist.
Cross-references Acura 31201796, Honda 42753TP6A82 and Honda 42753TP6A820M1 for the same application. See all 3.
Denso TPMS Sensor for Honda Applications
Denso 550-3004 is an OE Manufactured tire pressure monitoring system sensor built for direct-fit service on select Honda and Acura vehicles. It delivers real-time pressure signal transmission and preserves vehicle system functions, including fill assist, auto locate, and diagnostic trouble codes.
Key Features
- Direct TPMS sensor with electric power source
- Clamp-in mounting method for OE-style service
- Real-time pressure signal transmission
- Mounting hardware included
- Gasket or seal included
- Supports systems that cannot be reverse engineered, including high-line and analog setups
OE Manufactured Design
As part of Denso’s OE Manufactured line, this TPMS sensor is built to match the vehicle’s original system requirements rather than forcing a generic solution. The Denso 550-3004 is designed to work with the factory TPMS architecture on 2010-2011 Honda Accord Crosstour, 2011-2013 Honda CR-V, and 2012-2015 Honda Crosstour models with 315 MHz clamp-in applications. This makes it a practical choice for Honda CR-V TPMS sensor replacement and Honda Crosstour TPMS service where OE-style system behavior matters.
This part cross-references Acura 31201796 for the same application.
Common Issues This Sensor Addresses
- TPMS warning light stays on after a sensor failure
- Inaccurate or missing tire pressure readings
- Loss of factory TPMS functions after replacement
- Service needs on vehicles requiring 315 MHz clamp-in sensors
- Diagnostic trouble codes related to tire pressure monitoring
Installation Notes
Fits 2012-2015 Honda Crosstour, N/A; 315 MHz, clamp in, 71 in-lbs, 8 N.m. Fits 2011-2013 Honda CR-V, N/A; 315 MHz, clamp in, 71 in-lbs, 8 N.m. Fits 2010-2011 Honda Accord Crosstour, N/A; 315 MHz, clamp in, 71 in-lbs, 8 N.m. After installation, the vehicle may require a TPMS relearn procedure according to the manufacturer’s service process. Verify frequency, clamp-in style, and torque specification before final assembly.
Quality Assurance
Denso manufactures this sensor to OE-level application requirements for direct TPMS service. It is engineered to preserve system functions and diagnostic capability while matching the vehicle’s original sensor communication needs.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Honda | Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2014 | Honda | Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2013 | Honda | CR-V | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2013 | Honda | Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2012 | Honda | CR-V | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2012 | Honda | Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2011 | Honda | Accord Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2011 | Honda | CR-V | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2010 | Honda | Accord Crosstour | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
