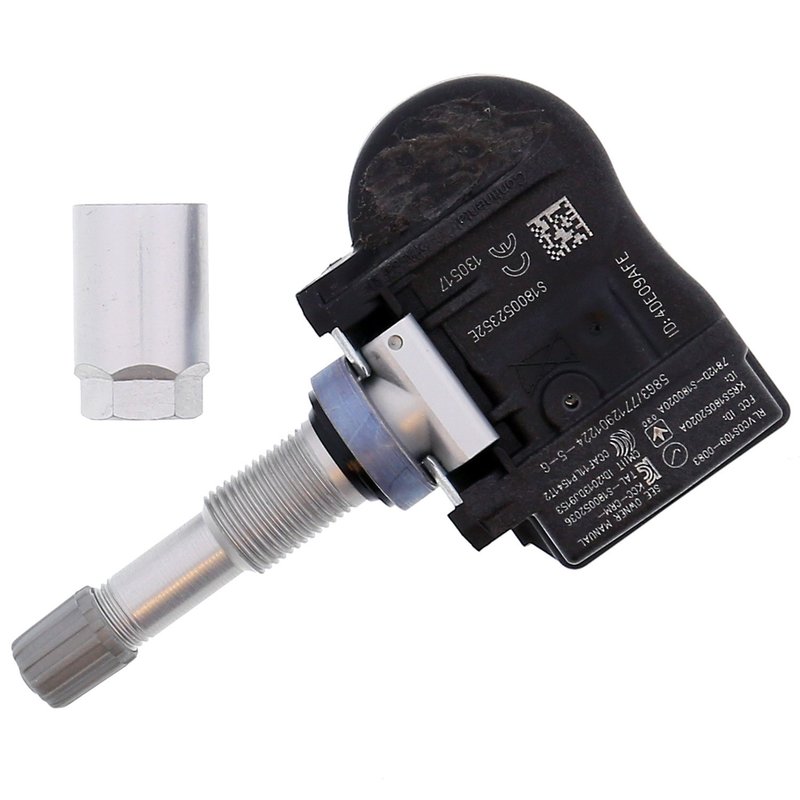

Denso 550-3007 Tire Pressure Monitoring System Sensor
| Brand | Denso 550-3007 |
|---|---|
| Gasket Or Seal Included | YES |
| Monitor Type | Direct |
| Mounting Hardware Included | YES |
| Mounting Method | Clamp In |
| Power Source | Electric |
| Real Time Pressure Signal Transmission | YES |
| Product line | OE Manufactured |
| Fits | INFINITI and Nissan · 20 vehicles |
OE manufactured. Direct TPMS sensor for dependable system communication.
Clamp-in design. Includes mounting hardware and a gasket or seal.
Real-time monitoring. Transmits pressure signals continuously for accurate readings.
Cross-references Datsun/Nissan 407003JA0A, Datsun/Nissan 407003JA0B and Infiniti 407003JA0A for the same application. See all 4.
Denso OE Manufactured TPMS Sensor 550-3007
Denso 550-3007 is an OE Manufactured direct Tire Pressure Monitoring System sensor built for vehicles that use a clamp-in design and real-time pressure signal transmission. It is engineered for Nissan and Infiniti TPMS systems, including applications that require preserved vehicle functions and accurate diagnostic communication.
Key Features
- Direct TPMS sensor with electric power source
- Real-time pressure signal transmission
- Clamp-in mounting method for OE-style service
- Mounting hardware included
- Gasket or seal included
- Supports systems that cannot be reverse engineered, including high-line and analog setups
- Preserves vehicle and system functions such as fill assist and auto locate
- Helps preserve diagnostic trouble codes during service
Detailed Description
This Denso TPMS sensor is designed for direct tire pressure monitoring on select Nissan and Infiniti vehicles, including the Nissan Altima, Maxima, Murano, Pathfinder, and Infiniti Q50, Q60, QX60, and JX35. The OE Manufactured design follows the vehicle’s original system requirements, including 433.92 MHz applications and clamp-in installation specifications noted for the listed fitments. Part number 550-3007 is a practical replacement when the original sensor has failed, lost communication, or no longer reports accurate tire pressure data.
This part cross-references Datsun/Nissan and Infiniti OE numbers 407003JA0A and 407003JA0B for the same application.
What It Is Used For
- Replacing a failed TPMS sensor on a Nissan Altima, Maxima, Murano, or Pathfinder
- Restoring tire pressure readings on Infiniti Q50, Q60, QX60, or JX35 applications
- Addressing TPMS warning lights caused by sensor battery or communication failure
- Recovering direct pressure signal transmission after sensor replacement service
- Maintaining OE system behavior after tire or wheel service
Installation Notes and Tips
Fits 2013-2017 Nissan Altima, N/A; 2016-2017 Nissan Maxima, N/A; 2015-2017 Nissan Murano, N/A; 2013-2017 Nissan Pathfinder, N/A; 2016-2017 Infiniti Q50, N/A; 2017 Infiniti Q60, N/A; 2014 Infiniti QX60, N/A; and 2013 Infiniti JX35, N/A. Listed applications note 433.92 MHz, clamp-in style, and torque to 71 in-lbs (8 N.m). After installation, the vehicle manufacturer’s TPMS relearn procedure is required to register the sensor correctly.
Quality Assurance
Denso’s OE Manufactured line is built to match vehicle-specific TPMS system requirements and maintain original system functions during service. For best results, follow the OE torque specification and complete the relearn process exactly as outlined by the vehicle manufacturer.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | INFINITI | Q50 | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | INFINITI | Q60 | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | Nissan | Altima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | Nissan | Maxima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | Nissan | Murano | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | Nissan | Pathfinder | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | INFINITI | Q50 | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | Nissan | Altima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | Nissan | Maxima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | Nissan | Murano | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | Nissan | Pathfinder | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2015 | Nissan | Altima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2015 | Nissan | Murano | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2015 | Nissan | Pathfinder | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2014 | INFINITI | QX60 | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2014 | Nissan | Altima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2014 | Nissan | Pathfinder | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2013 | INFINITI | JX35 | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2013 | Nissan | Altima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2013 | Nissan | Pathfinder | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
