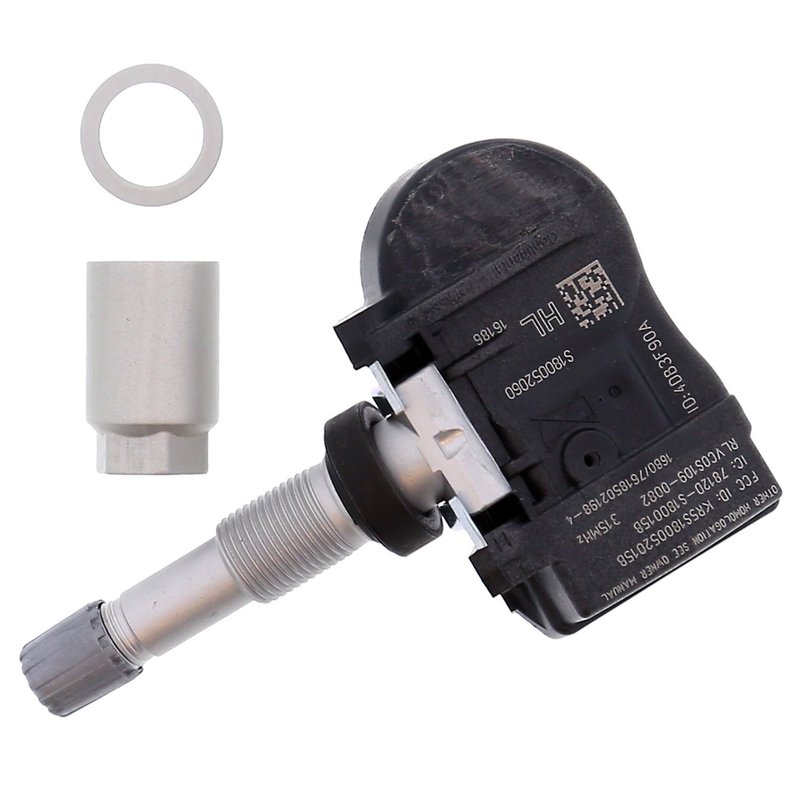

Denso 550-3010 Tire Pressure Monitoring System Sensor
| Brand | Denso 550-3010 |
|---|---|
| Gasket Or Seal Included | YES |
| Monitor Type | Direct |
| Mounting Hardware Included | YES |
| Mounting Method | Clamp In |
| Power Source | Electric |
| Real Time Pressure Signal Transmission | YES |
| Product line | OE Manufactured |
| Fits | Acura · 9 vehicles |
OE manufactured. Direct TPMS sensor for dependable system communication.
Clamp-in design. Includes gasket or seal for a secure installation.
Real-time monitoring. Transmits pressure signals continuously.
Cross-references Acura 42753TZ3A51 and Honda 42753TZ3A510M1 for the same application. See all 2.
Denso OE Manufactured TPMS Sensor 550-3010
Denso 550-3010 is an OE Manufactured tire pressure monitoring system sensor built for direct-fit service on select Acura applications. It delivers real-time pressure signal transmission and is designed to preserve vehicle system functions, including fill assist, auto locate, and diagnostic trouble codes.
Key Features
- Direct TPMS sensor with electric power source
- Clamp-in mounting method for OE-style service
- Real-time pressure signal transmission
- Mounting hardware included
- Gasket or seal included
- Supports vehicle functions that cannot be reverse engineered, including high-line and analog systems
OE Manufactured Design
The Denso OE Manufactured line focuses on sensor performance that follows the vehicle’s original TPMS architecture. This helps maintain factory system behavior after service and supports proper communication with the TPMS module. Part number 550-3010 is built for direct monitoring and is a practical replacement when servicing Acura ILX, MDX, RDX, and TLX models listed below.
This part cross-references Acura 42753TZ3A51 and Honda 42753TZ3A510M1 for the same application.
Vehicle Fitment
- Fits 2016-2017 Acura ILX, N/A, 315 MHz, clamp in, 71 in-lbs / 8 N.m.
- Fits 2016-2017 Acura MDX, N/A, 315 MHz, clamp in, 71 in-lbs / 8 N.m.
- Fits 2016-2017 Acura RDX, N/A, 315 MHz, clamp in, 71 in-lbs / 8 N.m.
- Fits 2015-2017 Acura TLX, N/A, 315 MHz, clamp in, 71 in-lbs / 8 N.m.
Common Uses
- Replaces a failed TPMS sensor causing low-pressure warnings
- Restores real-time tire pressure reporting
- Addresses TPMS warning lights after sensor failure or battery depletion
- Supports proper system relearn after sensor service
- Helps maintain factory TPMS functions on Acura ILX, MDX, RDX, and TLX models
Installation Notes
After installation, the vehicle may require a TPMS relearn procedure according to the manufacturer’s service process. Some vehicles need a trusted repair shop or scan tool to complete relearn and confirm correct sensor communication. Verify 315 MHz frequency, clamp-in style, and torque specification before installation.
Quality Assurance
Denso manufactures this sensor to OE specifications for direct TPMS service and system compatibility on the listed Acura applications. The design supports factory diagnostic trouble code retention and preserves vehicle functions during TPMS repair.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Acura | ILX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2017 | Acura | MDX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2017 | Acura | RDX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2017 | Acura | TLX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2016 | Acura | ILX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2016 | Acura | MDX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2016 | Acura | RDX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2016 | Acura | TLX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2015 | Acura | TLX | N/A | 315 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| No rows match your filter. | ||||
