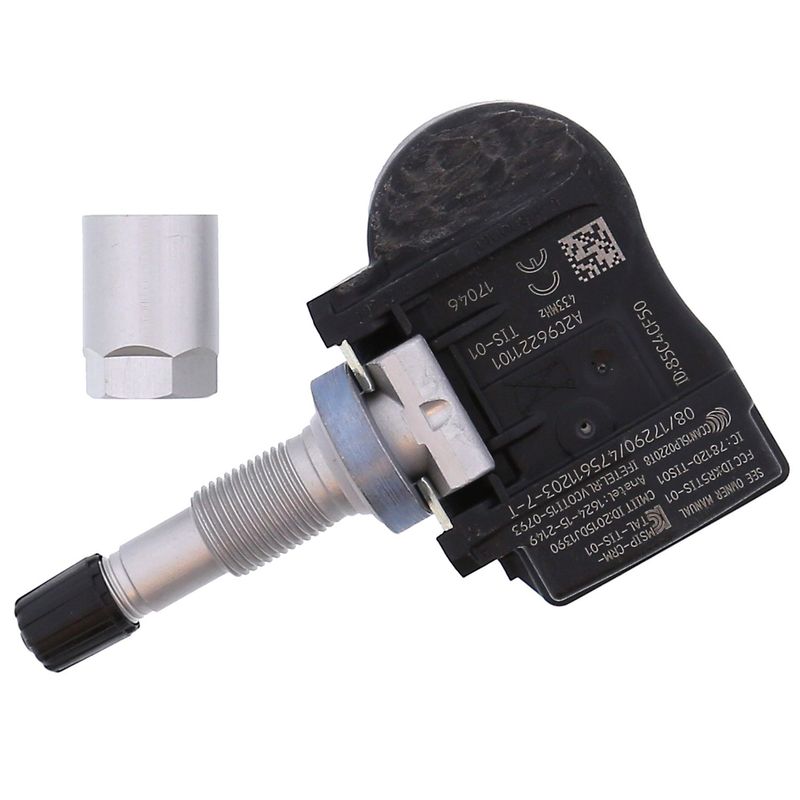

Denso 550-3017 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Denso 550-3017 |
|---|---|
| Power Source | Electric |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Clamp in |
| Mounting Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Product line | OE Manufactured |
| Fits | Genesis, Hyundai, and Kia · 6 vehicles |
OE manufactured. Direct-fit TPMS sensor for straightforward replacement.
Clamp-in design. Includes mounting hardware and a gasket or seal.
Real-time monitoring. Direct sensor transmits pressure signals continuously.
Cross-references Hyundai 52933D2100, Hyundai 52933D4100 and Hyundai 52933D9100 for the same application. See all 8.
Denso OE Manufactured TPMS Sensor 550-3017
Denso 550-3017 is a direct Tire Pressure Monitoring System sensor built for vehicle-specific TPMS operation. It is an OE Manufactured replacement for select Hyundai, Kia, and Genesis applications, with real-time pressure signal transmission and clamp-in mounting for factory-style service.
Key Features
- Direct TPMS sensor with electric power source
- Real-time pressure signal transmission
- Clamp-in mounting method for OE-style installation
- Mounting hardware included
- Gasket or seal included
- Supports systems that cannot be reverse engineered, including high-line and analog setups
- Preserves vehicle functions such as fill assist and auto locate
- Preserves diagnostic trouble codes during service
Product Details
The Denso OE Manufactured line focuses on replacement parts built to match original equipment system requirements. This TPMS sensor is designed for direct communication with the vehicle’s monitoring system, helping maintain factory TPMS behavior on applications such as the 2017 Hyundai Accent, 2017 Hyundai Elantra, 2014-2016 Kia Optima, and 2017 Genesis G90. Part number 550-3017 is also referenced for OE-style service on select Hyundai and Kia vehicles.
This part cross-references Hyundai and Kia OE numbers (e.g., 52933D2100, 52933D4100) for the same application.
What It Helps Resolve
- TPMS warning light illuminated on the dash
- Incorrect or missing tire pressure readings
- Sensor failure after battery depletion or age-related wear
- Loss of factory TPMS functions after wheel or tire service
- Diagnostic trouble codes related to tire pressure monitoring
Installation Notes
Fits 2017 Genesis G90, N/A; 2017 Hyundai Accent, N/A; 2017 Hyundai Elantra, N/A; and 2014-2016 Kia Optima, N/A. This sensor uses a clamp-in design and is specified for 433.92 MHz applications with torque to 71 in-lbs (8 N.m) where noted. After installation, the vehicle manufacturer’s TPMS relearn procedure is required. Some vehicles may require a trusted repair shop to complete relearn and initialization.
Quality Assurance
Denso builds this sensor as an OE Manufactured replacement for direct-fit TPMS service. It is engineered to work with the vehicle’s TPMS system while preserving factory functions and stored diagnostic information. Part number 550-3017 is intended for service on the listed Hyundai, Kia, and Genesis applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Genesis | G90 | N/A | From 13/06/2016, 433.92 MHz, Clamp In, 71 in-lbs, 8 N.m; OE Manufactured |
| 2017 | Hyundai | Accent | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2017 | Hyundai | Elantra | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2016 | Kia | Optima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2015 | Kia | Optima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
| 2014 | Kia | Optima | N/A | 433.92 MHz, Clamp In style, torque to 71 in-lbs (8 N.m); OE Manufactured |
