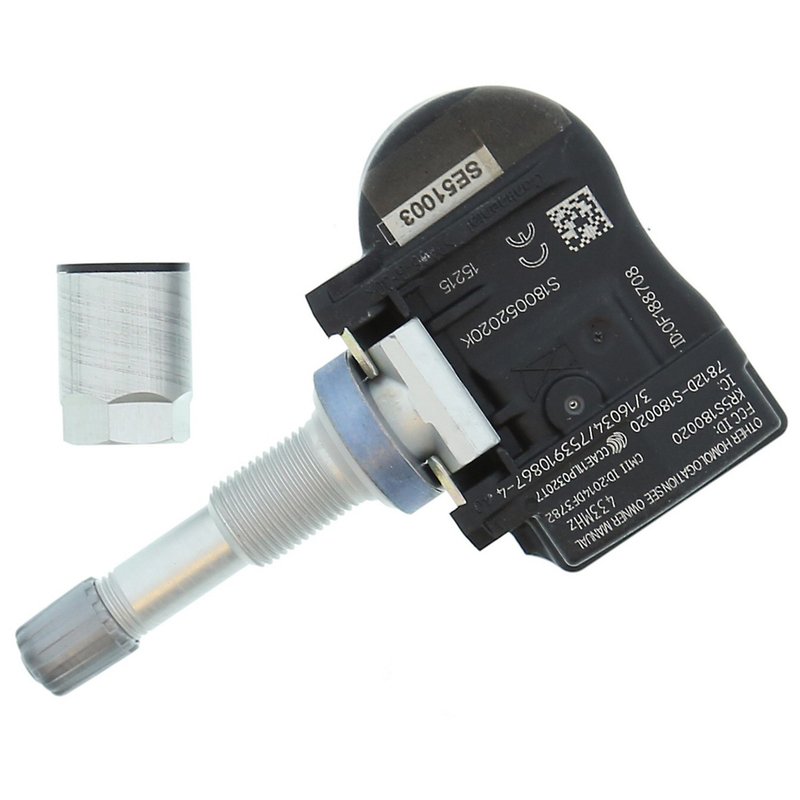

Denso 550-3020 Tire Pressure Monitoring System Sensor

Denso OE Manufactured TPMS Sensor for Volvo

Denso 550-3020 is a direct tire pressure monitoring system sensor built for Volvo applications that use a clamp-in design and 433.92 MHz signal transmission. It is engineered to preserve vehicle system functions while delivering real-time pressure data for the TPMS warning system.

OE Manufactured product line details: this Denso sensor is built to match the vehicle’s original TPMS architecture, including systems that cannot be reverse engineered, such as high-line and analog setups. It is designed to keep diagnostic trouble codes, fill assist, and auto locate functions intact after service.

• Direct TPMS sensor with electric power source
• Real-time pressure signal transmission
• Clamp-in mounting method for Volvo wheel applications
• Mounting hardware included
• Gasket or seal included
• 433.92 MHz frequency noted in fitment data

Volvo Fitment

• Fits 2011-2013 Volvo C30, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011-2013 Volvo C70, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011-2013 Volvo S60, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011-2013 Volvo S80, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2010-2013 Volvo XC60, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011-2013 Volvo XC70, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011 Volvo S40, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2011 Volvo V50, N/A; 433.92 MHz, clamp-in style, torque to 71 in-lbs (8 N.m); OE Manufactured
• Fits 2007-2010 Volvo C30, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2006-2010 Volvo C70, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2007-2010 Volvo S40, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2007-2010 Volvo S80, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2005-2010 Volvo V50, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2008-2010 Volvo V70, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2008-2010 Volvo XC70, N/A; replaces Siemens sensor, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured
• Fits 2008 Volvo XC90, N/A; replaces Siemens sensor, from chassis no. 456767, 433.92 MHz, clamp-in, 71 in-lbs, 8 N.m; OE Manufactured

What This TPMS Sensor Helps Address

• TPMS warning light triggered by a failed or unresponsive sensor
• Loss of tire pressure signal transmission to the vehicle
• Replacement needs after wheel service or sensor aging
• System faults on Volvo models using a 433.92 MHz clamp-in sensor
• Diagnostic trouble codes related to the tire pressure monitoring system

Installation Notes

Denso 550-3020 is a clamp-in TPMS sensor, so correct wheel service procedures matter. Fitment notes call for torque to 71 in-lbs (8 N.m) on listed Volvo applications, and some vehicles may require a TPMS relearn through the manufacturer’s procedure after installation. For DIY service, a trusted repair shop may be needed to complete relearn and confirm proper sensor registration.

This part cross-references Volvo OE numbers such as 8G921A159AB and 31280297X for the same application.

Quality Assurance

Denso’s OE Manufactured line is built for vehicle-specific TPMS operation and is intended to preserve original system behavior, including fill assist, auto locate, and diagnostic trouble code retention. For Volvo TPMS sensor replacement, Denso 550-3020 provides an OE-style service part for direct-fit repair work.
