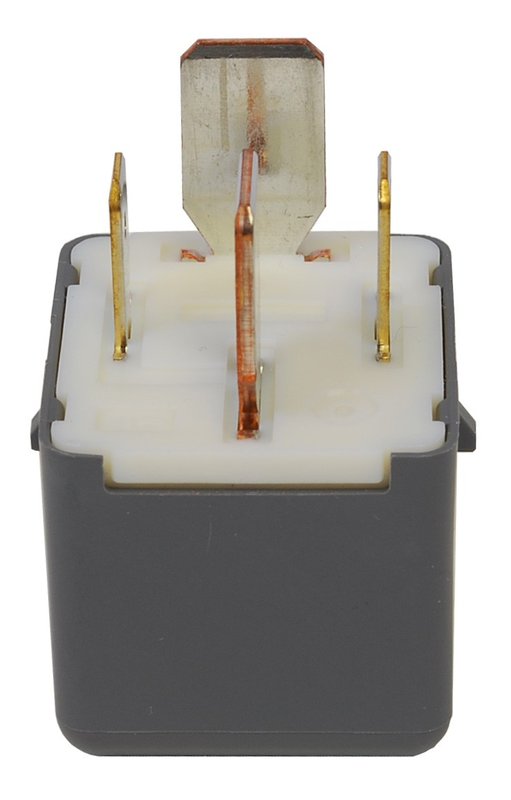

Denso 567-0003 HVAC Blower Motor Relay

Reliable HVAC Blower Motor Relay for Select Toyota and Honda Models

The Denso Daytime Running Light Relay 567-0003 is a 12-volt HVAC blower motor relay designed to provide consistent electrical performance for various Acura, Honda, Lexus, Scion, Subaru, and Toyota vehicles. Engineered with a 40-amp amperage rating and four male blade terminals, this relay ensures efficient control of your vehicle's HVAC blower motor system.

• 12.0 Volt operating voltage for standard automotive electrical systems
• 40 Amp amperage rating suitable for HVAC blower motor applications
• Four male blade terminals for secure and reliable connections
• Blade terminal type compatible with OEM wiring harnesses
• Mounting hardware and bracket not included, allowing flexible installation options

About the Denso Daytime Running Light Relay Product Line

The Daytime Running Light Relay line by Denso focuses on delivering dependable relay components tailored for automotive electrical systems, including HVAC blower motor control. This product line emphasizes compatibility and durability, ensuring that relays like the 567-0003 meet the specific electrical demands of vehicles such as the Toyota Camry, Honda Accord, and Lexus RX series.

Detailed Product Description

The Denso 567-0003 relay operates at 12 volts and supports up to 40 amps, making it suitable for controlling the HVAC blower motor in a range of vehicles. Its four male blade terminals provide a secure electrical interface, designed to integrate seamlessly with factory wiring harnesses. While mounting hardware and brackets are not included, the relay's compact design allows for straightforward installation in existing relay sockets. This relay is compatible with numerous models, including the Toyota 4Runner, Honda Civic, Lexus ES350, and Subaru Outback, ensuring broad application across popular makes and models.

Common Applications and Issues Addressed

• Restores HVAC blower motor functionality in vehicles experiencing intermittent or no blower operation
• Replaces faulty relays causing HVAC system electrical failures
• Solves issues related to blower motor not responding to control inputs
• Addresses electrical shorts or relay coil failures affecting HVAC performance
• Ensures reliable daytime running light relay operation in compatible vehicles

Installation Notes and Tips

• Verify vehicle compatibility with the Denso 567-0003 relay before installation
• Ensure the relay terminals match the vehicle’s wiring harness blade connectors
• Disconnect the vehicle battery prior to relay replacement to prevent electrical shorts
• Check the relay socket for corrosion or damage before installing the new relay
• Secure the relay in place using existing mounting points; mounting hardware is not included

Quality Assurance and Warranty

Denso manufactures the 567-0003 relay to meet strict automotive standards for durability and electrical performance. While specific warranty details are not provided, Denso products typically undergo rigorous testing to ensure reliability in HVAC blower motor applications across Acura, Honda, Lexus, Scion, Subaru, and Toyota vehicles.
