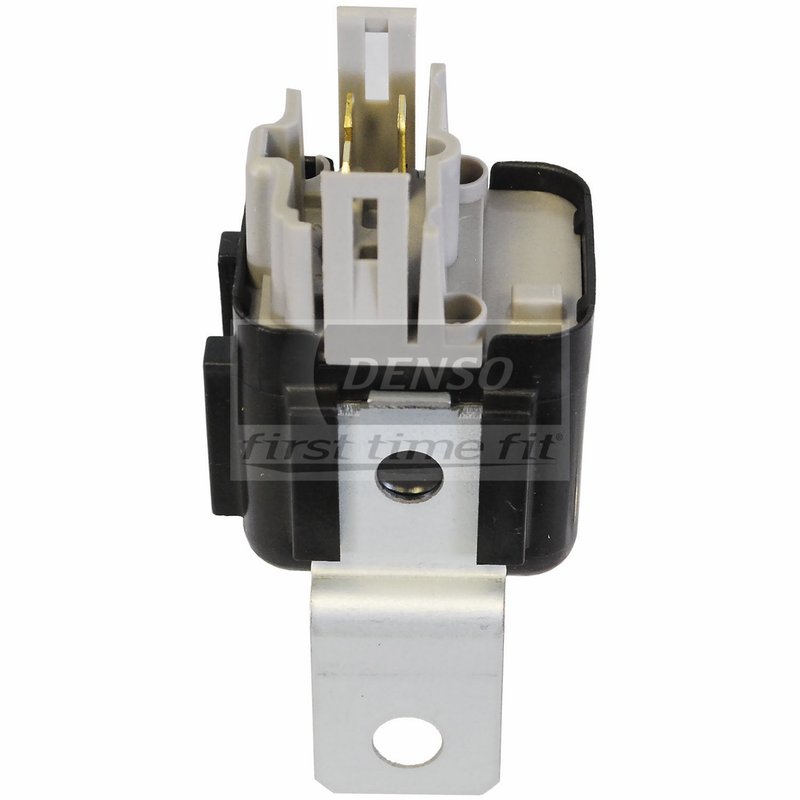

Denso 567-0036 Circuit Opening Relay

Denso 567-0036 Circuit Opening Relay Overview

Denso 567-0036 is a 12-volt circuit opening relay built for reliable electrical switching in Toyota applications. It uses a 5-terminal blade design with a male terminal layout, a 15-amp rating, and an included mounting bracket for secure installation.

Compatible With Toyota Land Cruiser, Pickup, 4Runner, and Celica applications, this relay is a direct-fit electrical replacement for vehicles that need consistent fuel or circuit control performance. Denso 567-0036 is engineered to match OE-style fit and function for service work on classic Toyota platforms.

Key Features

• 12.0-volt circuit opening relay for automotive electrical systems
• 5 blade terminals with male terminal configuration
• 15-amp amperage rating
• Mounting bracket included for stable placement
• OE-style replacement from Denso First Time Fit relay line
• Cross-reference part numbers include Standard Ignition RY-276 and BWD R4158

Detailed Description

This relay is designed for Toyota electrical systems that require a circuit opening relay to control power delivery reliably. Denso builds First Time Fit relays to OE specifications, drawing on its long history as an original equipment manufacturer. The 567-0036 part number is a practical choice for restoring proper relay operation in 1982 Toyota Celica, 1984-1989 Toyota Pickup, 1984-1988 Toyota 4Runner, and 1988-1990 Toyota Land Cruiser applications.

For buyers searching for a Toyota Land Cruiser circuit opening relay, Toyota Pickup relay replacement, or Denso 567-0036 for classic Toyota fuel system service, this part provides the correct electrical format and terminal layout for the listed vehicles. It also cross-references Standard Ignition RY-276 and BWD R4158 for the same application.

What It Helps Solve

• Intermittent relay switching in Toyota electrical circuits
• No-start conditions related to relay failure
• Fuel delivery interruptions caused by a faulty circuit opening relay
• Electrical contact wear in aging Toyota relay assemblies
• Restoration of proper power control in classic Toyota Land Cruiser, Pickup, 4Runner, and Celica models

Installation Notes and Tips

Verify the terminal count, blade style, voltage, and amperage rating before installation. Match the relay to the original connector layout and confirm the mounting bracket position during replacement. For best results, inspect the relay socket and surrounding wiring for heat damage, corrosion, or loose terminals before installing Denso 567-0036.

Quality Assurance

Denso designs First Time Fit relays as OE-style replacements based on its long-running original equipment manufacturing experience. The brand states these relays are built for quiet, efficient, and reliable operation with extended service life compared with typical aftermarket alternatives.
