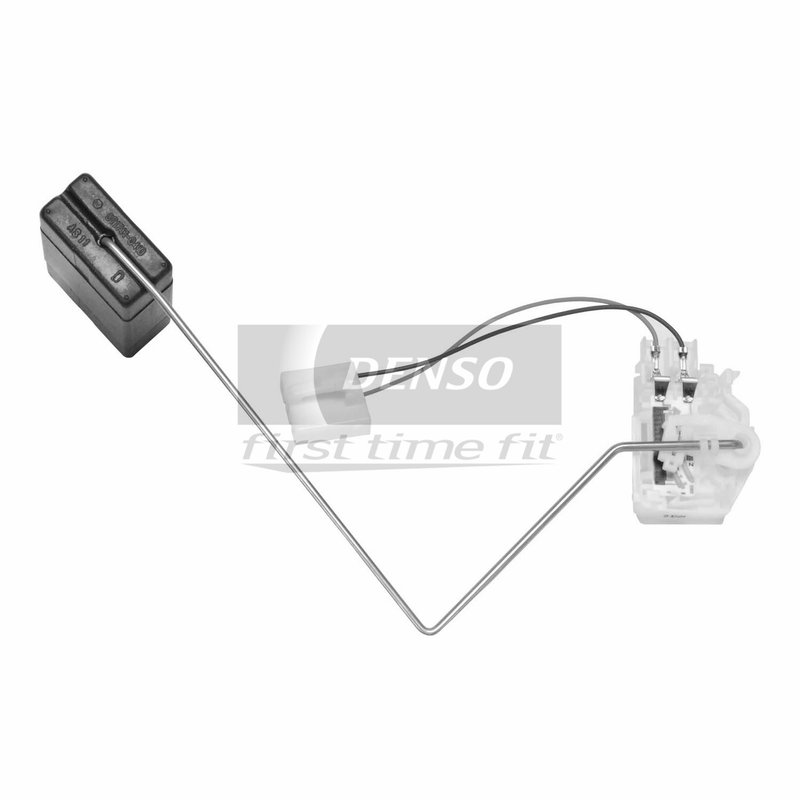

Denso 955-0116 Fuel Tank Sending Unit
| Brand | Denso 955-0116 |
|---|---|
| Fits | Toyota and Lexus · 18 vehicles |
Fuel tank sending unit. Measures fuel level for accurate gauge readings.
Female connector. Single white connector for a straightforward electrical connection.
Cross-references 83320-0E010 for the same application. See all 1.
Denso 955-0116 Fuel Tank Sending Unit
Denso 955-0116 is a fuel tank sending unit for select Toyota Highlander and Lexus RX applications. It is built with a white female connector and a single connector layout, and it uses a fixed float level design for direct fuel level signal replacement.
Key Features
- Fuel tank sending unit for air and fuel delivery service
- White connector color with 1 female connector
- Fixed float level design; adjustable float level: no
- OE-style replacement for fuel level signal restoration
- Cross-references Denso 955-0116 for the same application
Detailed Description
This Denso fuel tank sending unit is used to restore accurate fuel level reporting from the tank to the gauge system. It is a direct-fit service part for 2004-2013 Toyota Highlander, 2007-2009 Lexus RX350, and 2004-2006 Lexus RX330 applications. If your Toyota Highlander, Lexus RX350, or Lexus RX330 is showing inconsistent fuel readings, a faulty sender can be the source of the problem. Part number 955-0116 is designed for vehicles that require the listed connector configuration and fixed float setup.
Common Issues It May Solve
- Fuel gauge reads empty, full, or fluctuates unexpectedly
- Inaccurate fuel level display after sender wear or internal contact issues
- Intermittent fuel level signal from the tank
- Gauge behavior that does not match actual fuel quantity
Installation Notes and Tips
Verify connector style and vehicle application before installation. This unit uses one white female connector and does not have an adjustable float level. Confirm the sender orientation and tank configuration on the vehicle before reassembly. For best results, inspect the fuel tank module area and related wiring for damage or corrosion during service.
Quality Assurance
Denso manufactures fuel system components to OE-level specifications for direct replacement service. Part number 955-0116 is intended for the listed Toyota Highlander and Lexus RX fitments and is built to match the required sender configuration for those applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Toyota | Highlander | — | N/A | — |
| 2012 | Toyota | Highlander | — | N/A | — |
| 2011 | Toyota | Highlander | — | N/A | — |
| 2010 | Toyota | Highlander | — | N/A | — |
| 2009 | Lexus | RX350 | — | N/A | — |
| 2009 | Toyota | Highlander | — | N/A | — |
| 2008 | Lexus | RX350 | — | N/A | — |
| 2008 | Toyota | Highlander | — | N/A | — |
| 2007 | Lexus | RX350 | — | N/A | — |
| 2007 | Toyota | Highlander | GAS | N/A | — |
| 2007 | Toyota | Highlander | — | N/A | — |
| 2006 | Lexus | RX330 | — | N/A | — |
| 2006 | Toyota | Highlander | GAS | N/A | — |
| 2006 | Toyota | Highlander | — | N/A | — |
| 2005 | Lexus | RX330 | — | N/A | — |
| 2005 | Toyota | Highlander | — | N/A | — |
| 2004 | Lexus | RX330 | — | N/A | — |
| 2004 | Toyota | Highlander | — | N/A | — |
